Toyota COROLLA 制动助力器和真空管 — Figure 4703

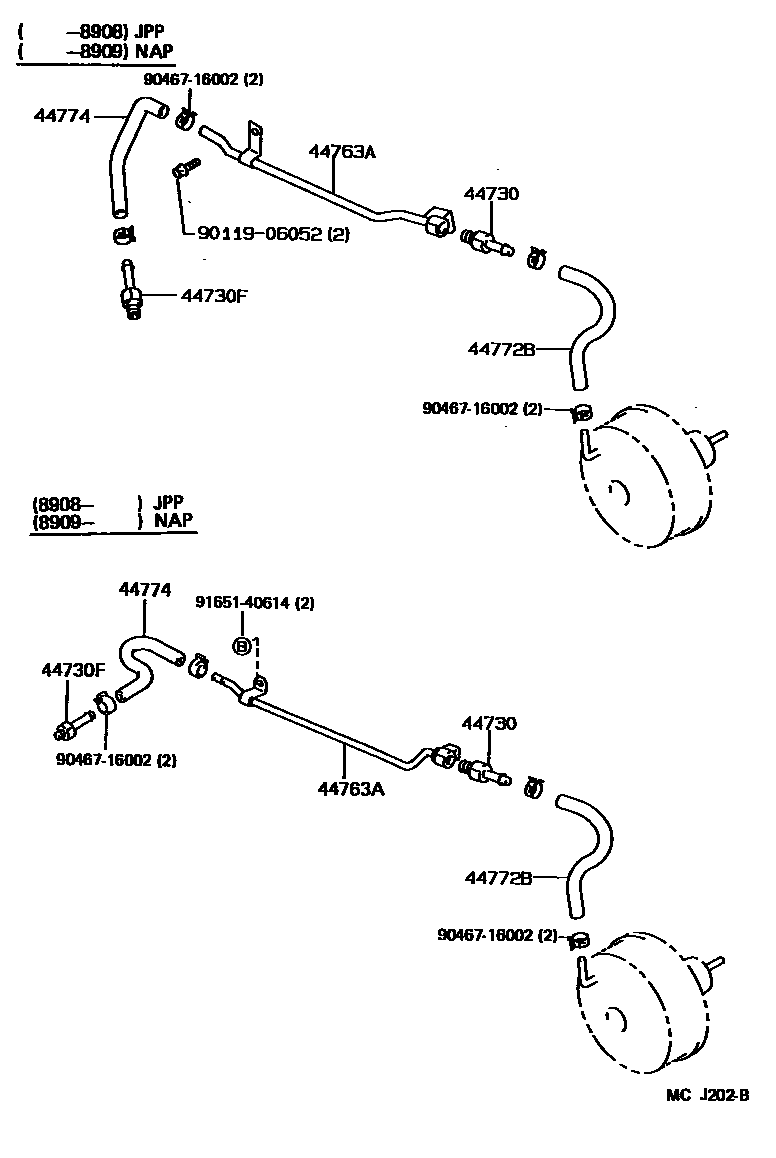

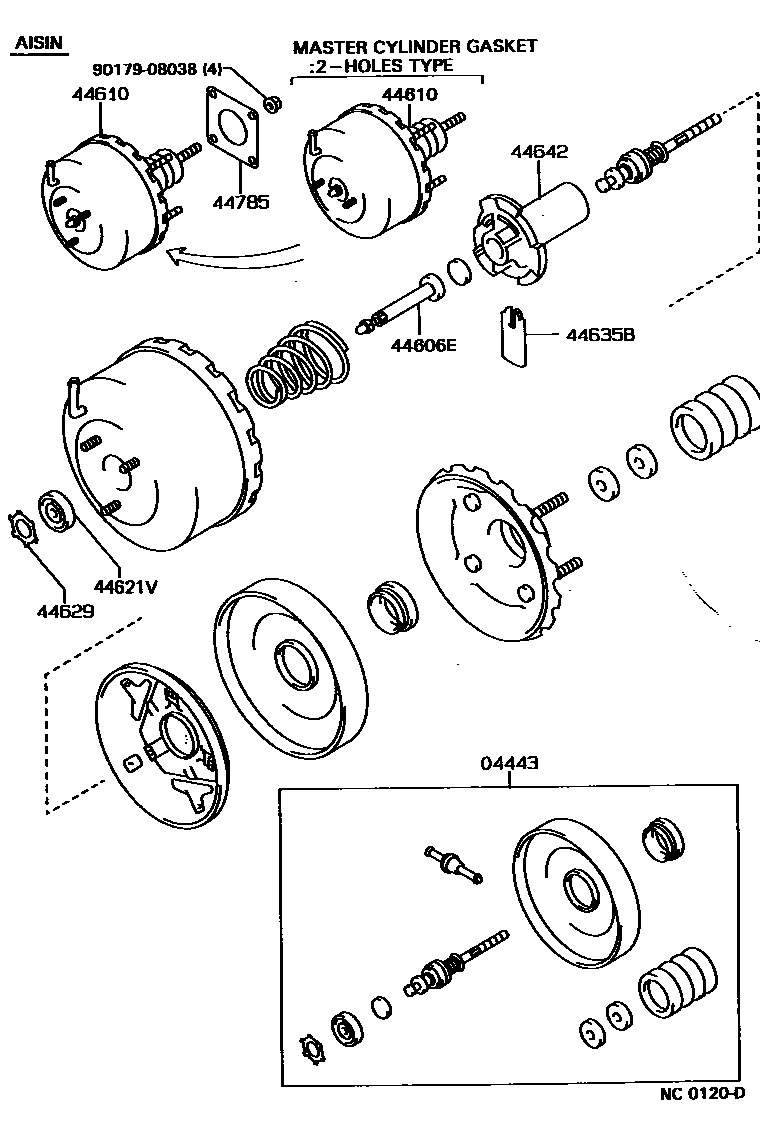

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04443 | brake booster components | 04443-12540 · 04443-12620 |
| 44606E | Brake booster piston rod sub-assembly | 44606-12520 |
| 44610 | brake booster assembly | 44610-12740 · 44610-12750 |
| 44621V | Booster body sealing ring | 44621-28120 |
| 44629 | annular inner ring | 44628-28120 |
| 44635B | valve stop key | 44635-12630 · 44635-28120 |
| 44642 | brake booster piston | 44642-32010 · 44642-32030 |
| 44730 | Vacuum check valve assembly (for brake) | 44580-22030 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51031 · 90404-51237 · 90404-51319 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12090 · 44763-12100 |
| 44772B | Hoses (check valve to brake booster) | 44772-12340 |
| 44774 | Hoses (joints to connector tubes) | 44774-12120 · 44774-12130 · 44774-12180 |
| 44785 | brake booster pad | 44785-32010 |
