Toyota COROLLA 离合器总泵 — Figure 3103

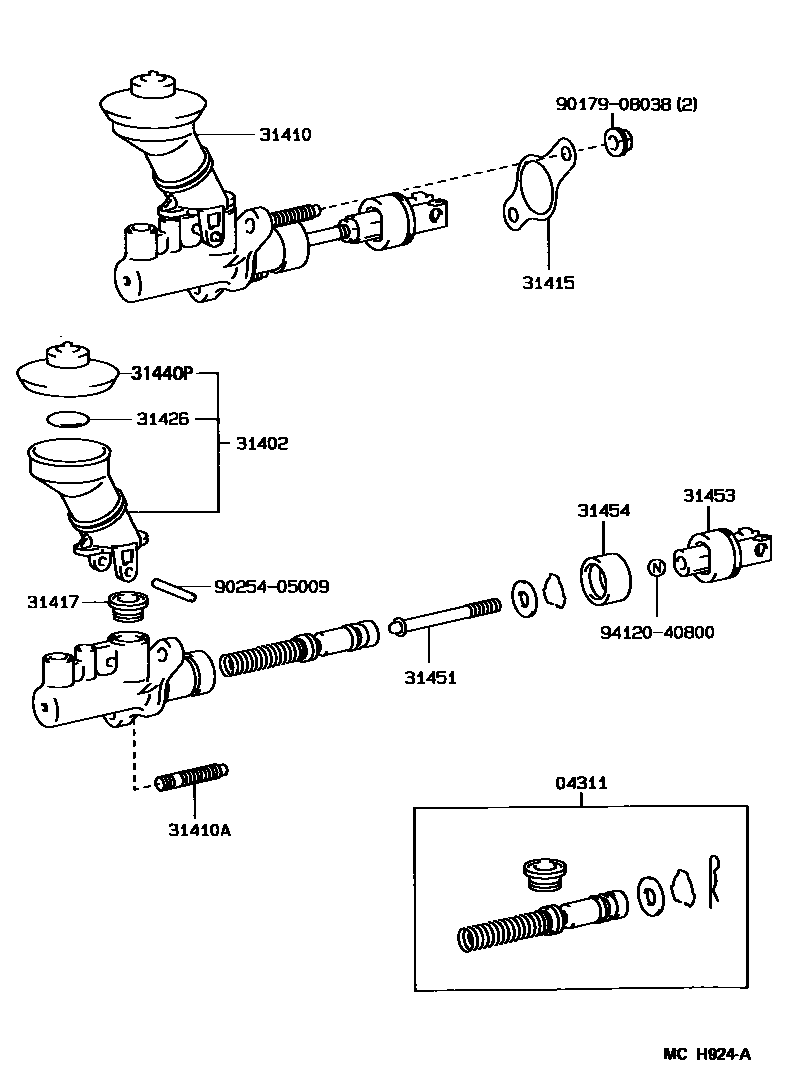

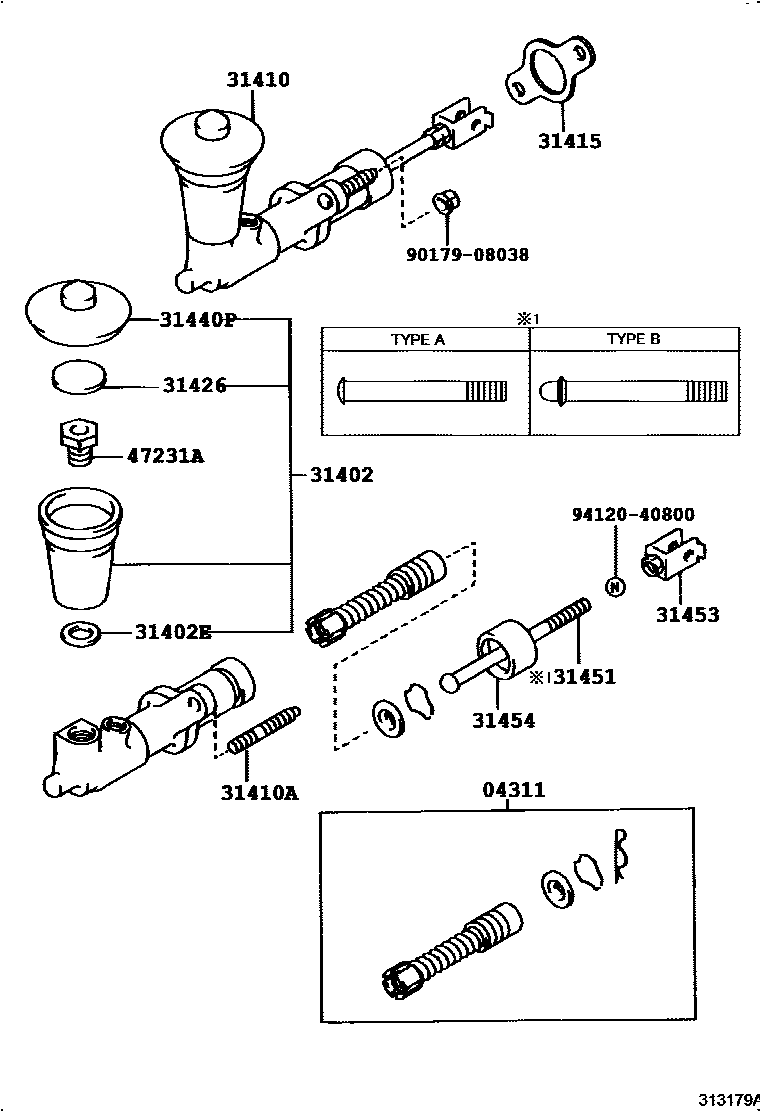

Toyota COROLLA EPC diagram 3103, 离合器总泵, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-12060 · 04311-12080 · 04311-22022 · 04311-32030 |
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 31402-12020 · 31402-12040 · 31402-12050 |
| 31402E | Ring (for clutch master cylinder reservoir) | 90562-18151 |
| 31410 | Clutch master cylinder assembly | 31410-12200 · 31410-12201 · 31410-12220 · 31410-12221 · 31410-12330 · 31410-12340 · 31410-12350 |
| 31410A | Bolt (for securing clutch master cylinder) | 90116-08146 |
| 31415 | Clutch master cylinder gasket | 31415-10010 |
| 31417 | Clutch reservoir retaining ring | 31417-35010 |
| 31426 | Clutch master cylinder reservoir float | 31426-22020 · 31426-30011 |
| 31440P | Clutch master cylinder fluid reservoir filler cap assembly | 47230-20040 |
| 31451 | Clutch master cylinder push rod | 31451-12050 · 31451-12070 · 31451-30120 · 31451-35060 · 31451-35070 · 31451-35080 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-12011 · 31404-12020 · 31404-16011 · 31453-10020 |
| 31454 | Clutch master cylinder dust boot | 31454-14010 · 31454-16010 · 31454-24010 |
| 47231A | Clutch master cylinder reservoir fixing bolt | 47231-20010 |
