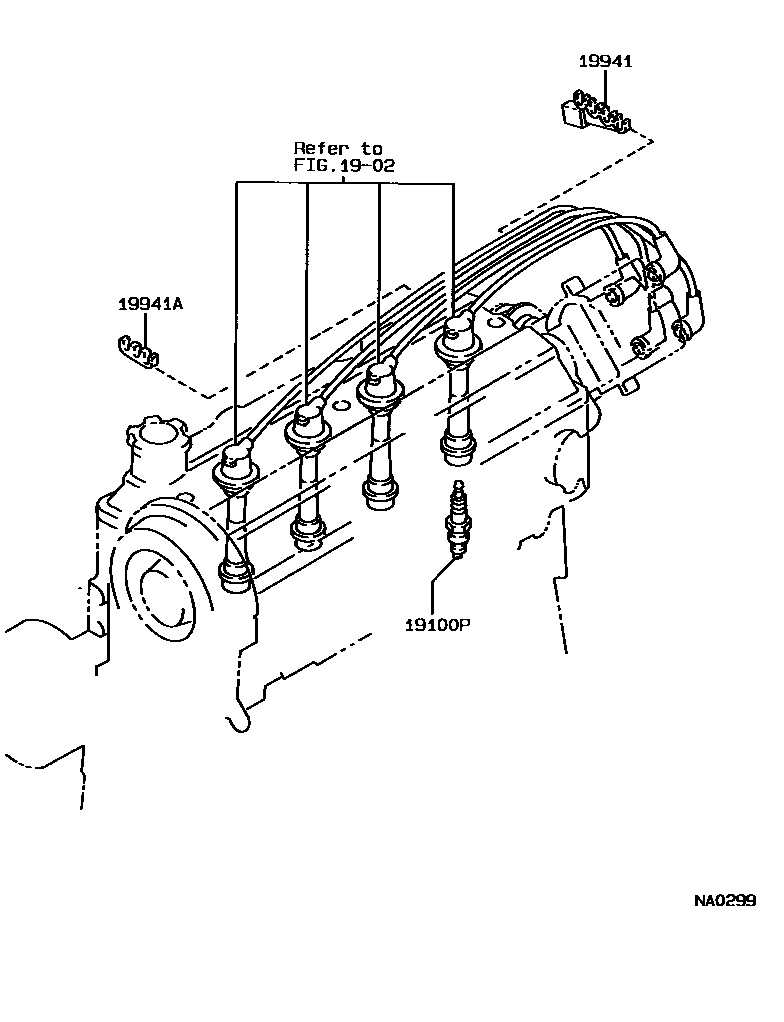

Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01129 · 90919-01153 |
| 19941 | No. 1 damping wire clip | 90929-01165 · 90929-01274 |
| 19941A | Clamp (for damping wire) | 90464-00287 |
