Toyota COROLLA vacuum tube — Figure 1708

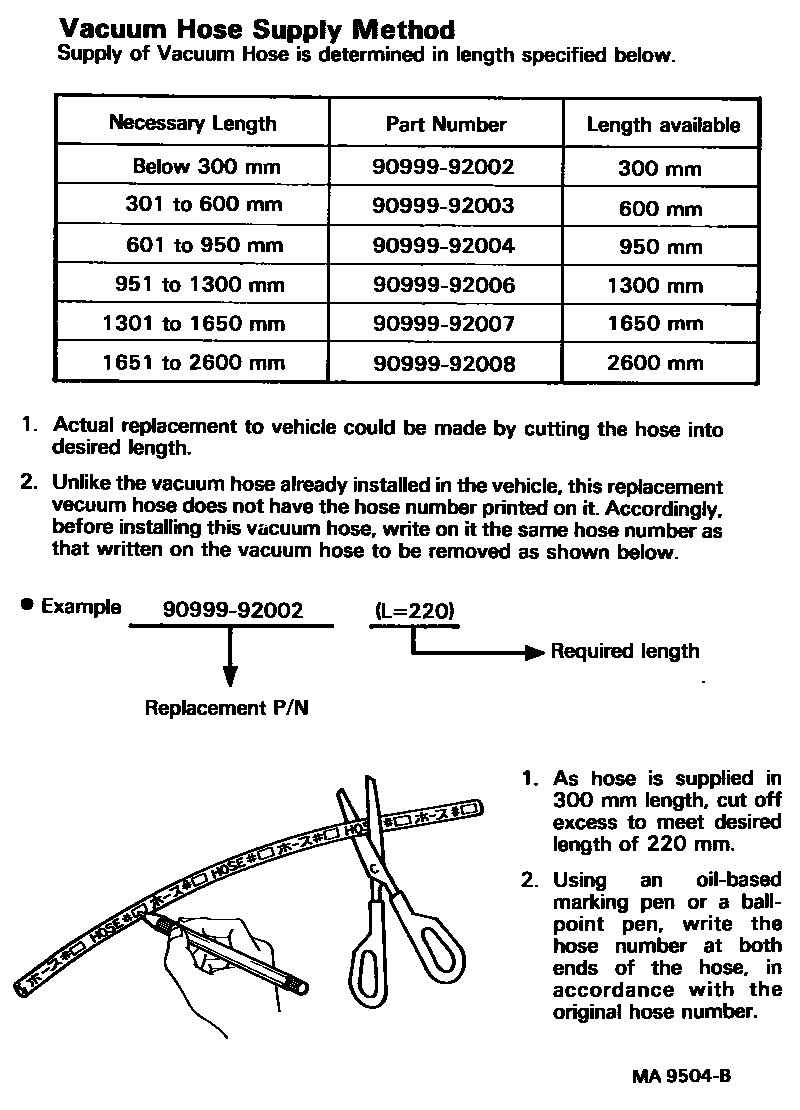

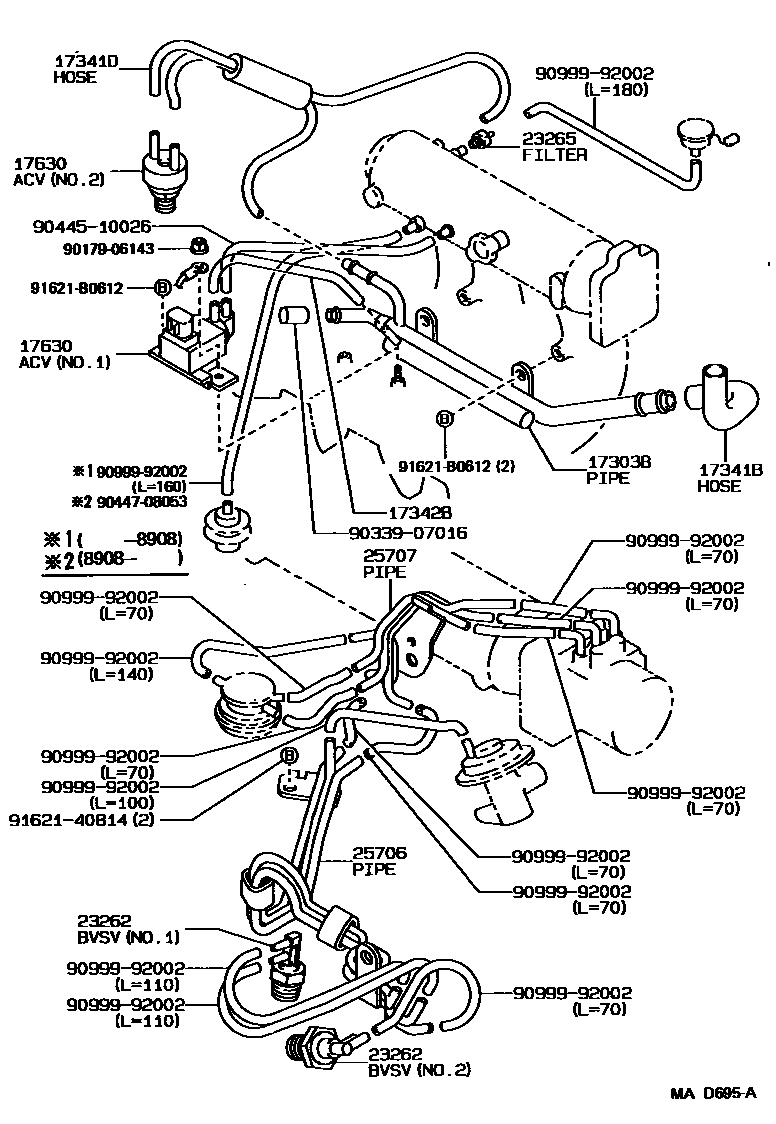

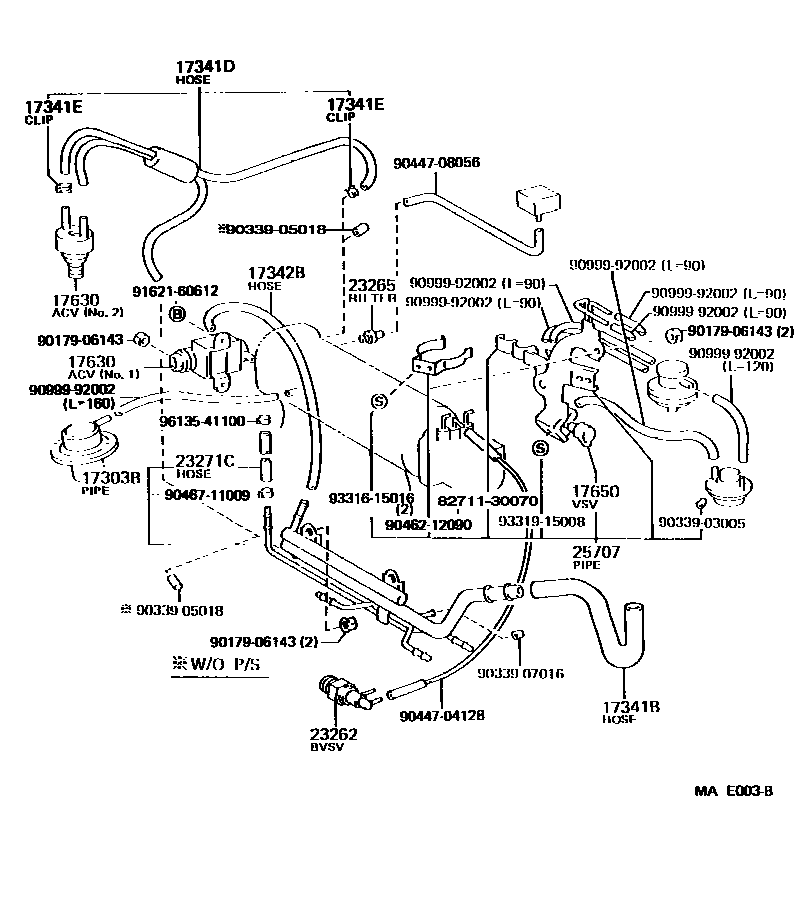

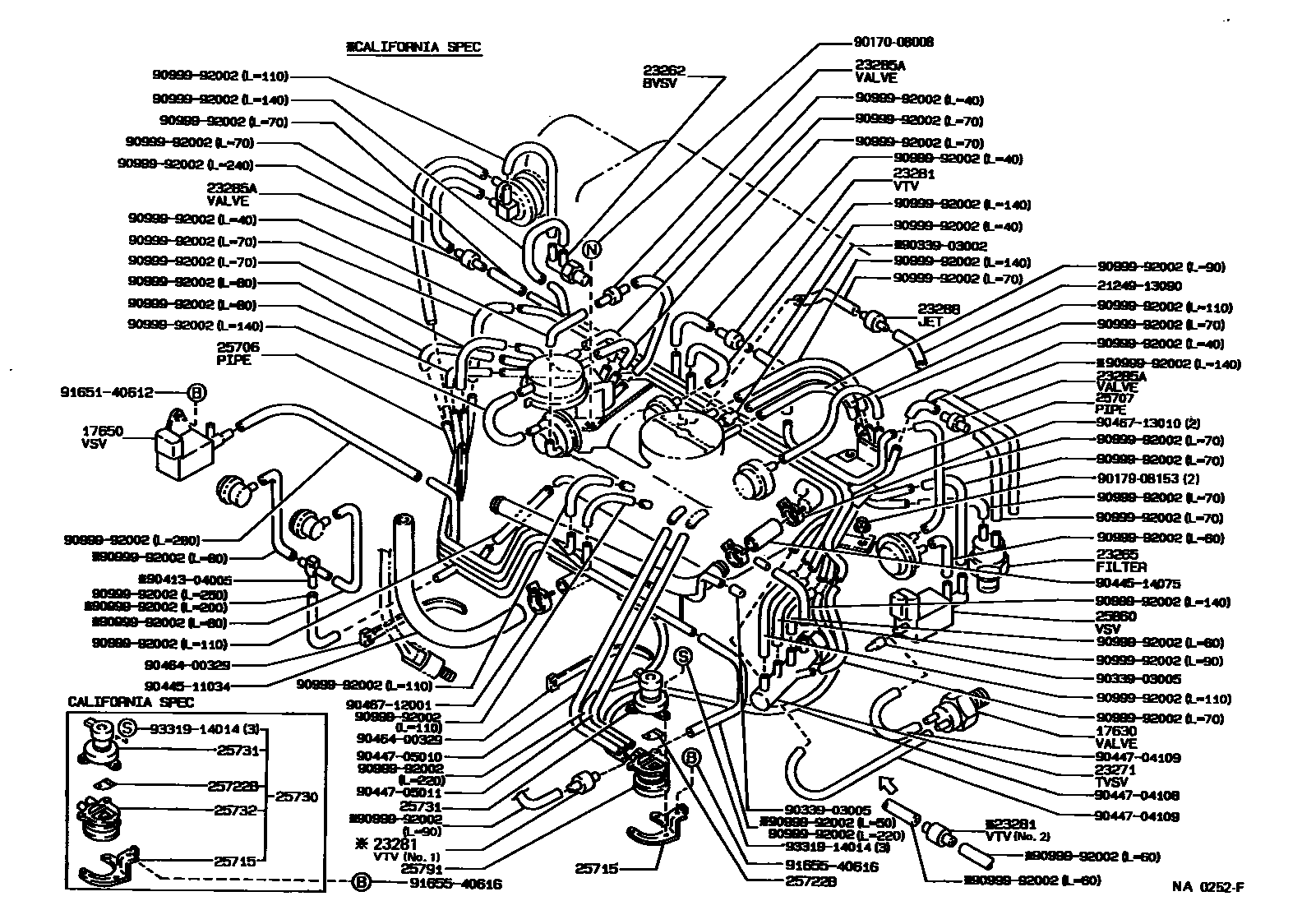

Toyota COROLLA EPC diagram 1708, vacuum tube, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-15050 · 17303-16131 · 17303-16140 |
| 17341B | Hoses No. 1 (for air injection systems) | 17341-15130 · 17341-15170 |
| 17341D | No. 1 hose (for idle boost) | 17302-16010 · 17341-15150 |
| 17341E | Clamp No. 1 (for idle lift hose) | 96132-30400 |
| 17342B | No. 2 hose (for idle boost) | 17342-15070 · 90445-10029 |
| 17630 | Air control valve assembly | 17630-15021 · 17630-15040 · 17630-15060 · 17630-16070 |
| 17650 | Vacuum switch valve assembly | 90910-12053 · 90910-12091 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05017 · 90925-05068 · 90925-05075 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11023 · 90917-11027 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02076 |
| 23271C | fuel hose | 95333-06020 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01014 · 90925-01019 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23288 | Nozzle No. 1 | 90925-04006 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-16230 · 25706-16231 · 25706-16300 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-16070 · 25707-16090 · 25707-16100 · 25707-16131 · 25707-16150 · 25707-16151 · 25707-16190 |
| 25715 | Emission control valve bracket | 25715-16020 |
| 25722B | Electronic exhaust control valve gasket | 25722-16010 |
| 25730 | Electronic exhaust control valve assembly | 25730-16060 |
| 25731 | Electronic exhaust control valve | 25731-16010 |
| 25732 | Electronic exhaust control filter | 25732-16010 |
| 25791 | High altitude compensator valve | 25791-16010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-16100 |
