Toyota COROLLA 歧管喷气系统 — Figure 1706

Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 2 images and 5 PNC and OE references.

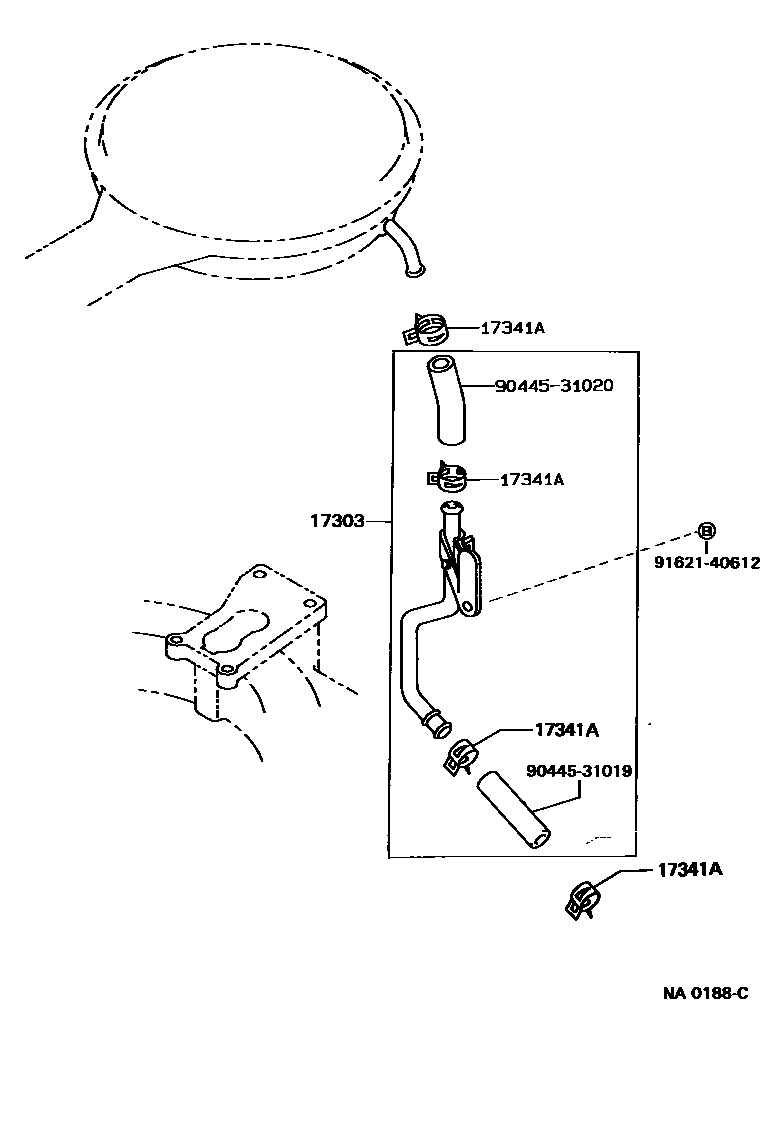

Toyota COROLLA 歧管喷气系统 EPC diagram — NA0188C
歧管喷气系统 — NA0188C (198708 – 198908)

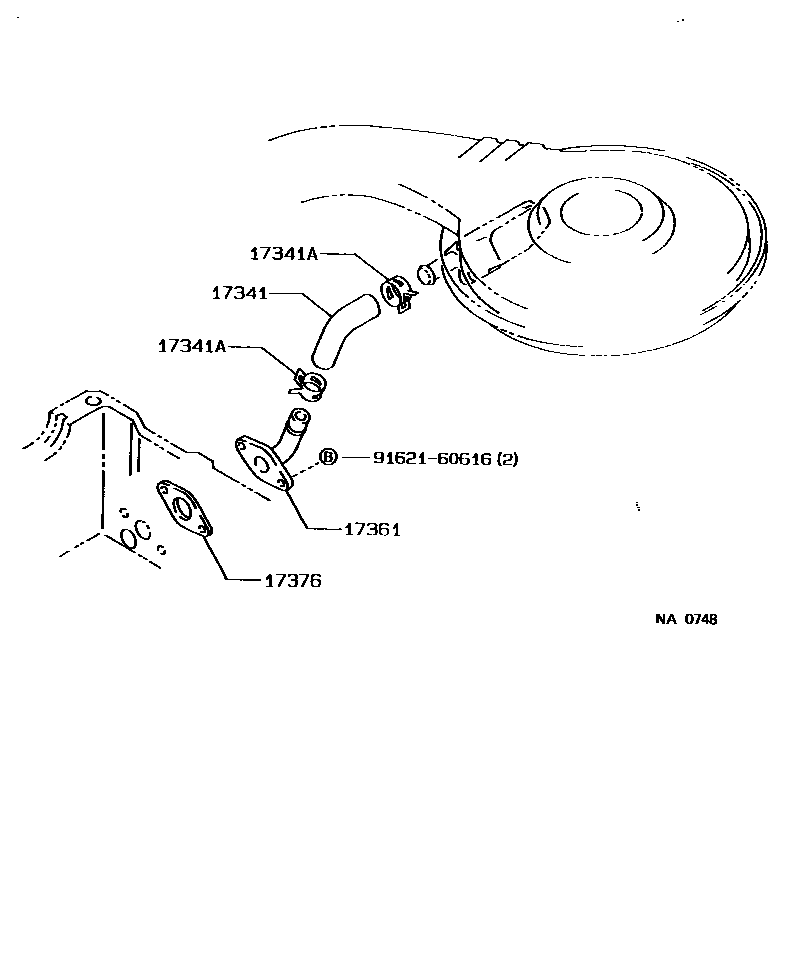

Toyota COROLLA 歧管喷气系统 EPC diagram — NA0748
歧管喷气系统 — NA0748 (198708 – 198908)

PNC and OE references

PNCPart nameOE numbers
17303Air pipe subassembly17303-16080
17341Hoses No. 1 (for air injection systems)17341-15140
17341ANo. 1 clip or clip (for No. 1 air injection system hose)90467-26004 · 90467-28003
17361air tube17361-15080
17376Air tube gasket No. 117376-15020
