Toyota COROLLA Exhaust Pipe — Figure 1702

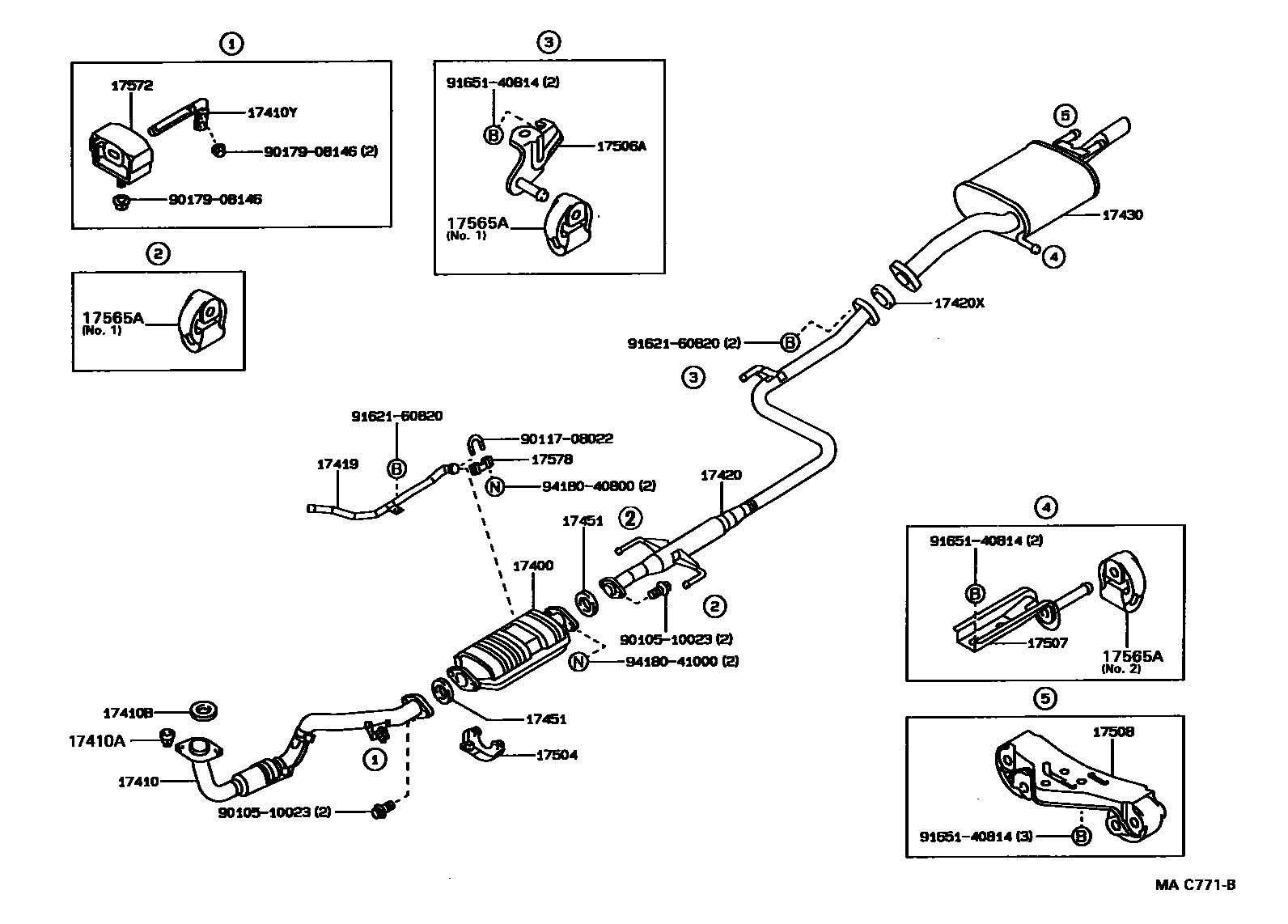

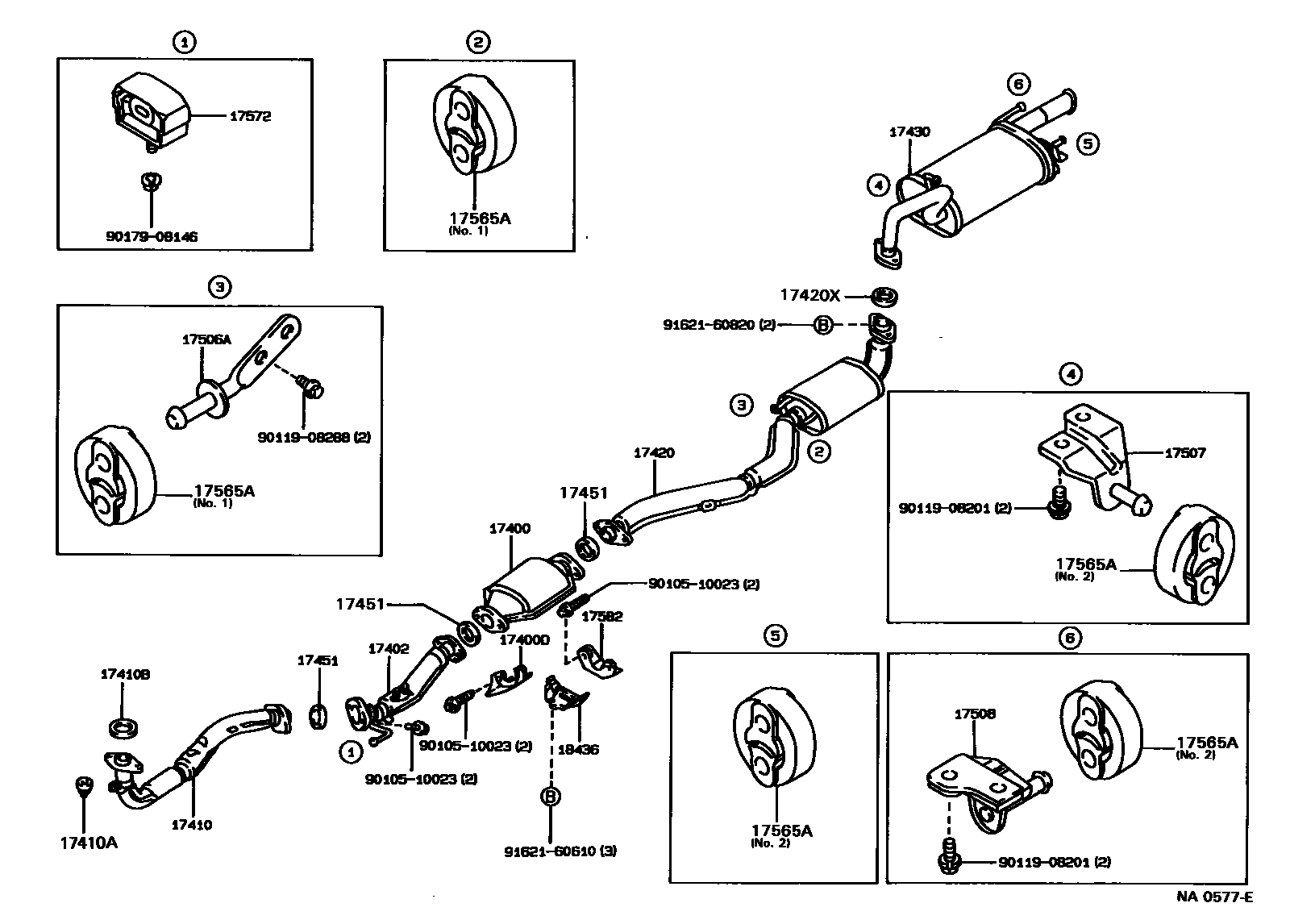

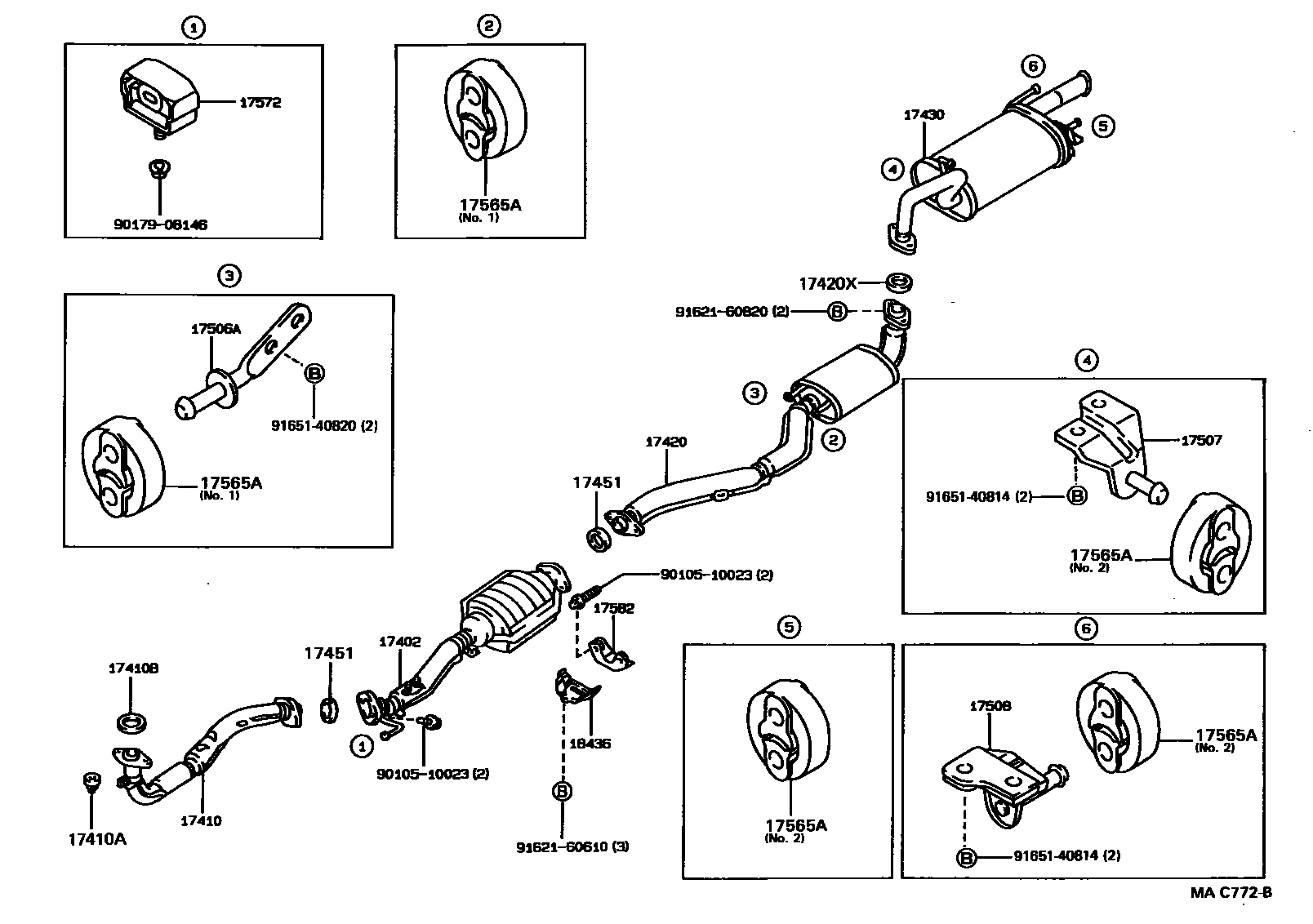

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-16180 · 18450-16220 · 18450-16300 · 18450-16330 · 18450-16370 · 18450-16390 · 18450-16400 · 18450-16520 |
| 17400D | Three-way catalytic converter bracket | 17503-16120 |
| 17402 | No. 2 front exhaust pipe sub-assembly | 17402-16060 · 17402-16080 · 17402-16081 |
| 17410 | Front exhaust pipe assembly | 17410-16390 · 17410-16400 · 17410-16550 · 17410-16551 · 17410-16690 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06012 · 90917-06045 · 90917-06047 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17561-16140 |
| 17419 | Three-way catalytic converter intake pipe | 17409-16020 |
| 17420 | Central exhaust pipe assembly | 17420-16120 · 17420-16130 · 17420-16190 · 17420-16191 · 17420-16320 · 17420-16330 · 17420-16340 |
| 17420X | Center exhaust pipe liner | 90917-06004 · 90917-06039 |
| 17430 | Exhaust tailpipe assembly | 17430-16410 · 17430-16411 · 17430-16450 · 17430-16451 · 17430-16541 · 17430-16542 · 17430-16740 · 17430-16750 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06012 · 90917-06023 · 90917-06039 · 90917-06041 · 90917-06045 · 90917-06047 |
| 17504 | Three-way catalytic converter bracket sub-assembly | 17504-16010 · 17504-16011 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-15050 · 17506-16040 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-15030 · 17507-16020 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-15030 · 17508-16040 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-15050 · 17565-15070 · 17565-63030 · 17565-63071 |
| 17572 | No. 1 exhaust pipe bracket | 17572-15050 |
| 17578 | Pipe clamp | 17578-15020 |
| 17582 | Three-way catalytic converter upper bracket | 17582-38070 |
| 18436 | No. 1 integrated three-way catalytic converter protection device | 18436-16010 |
