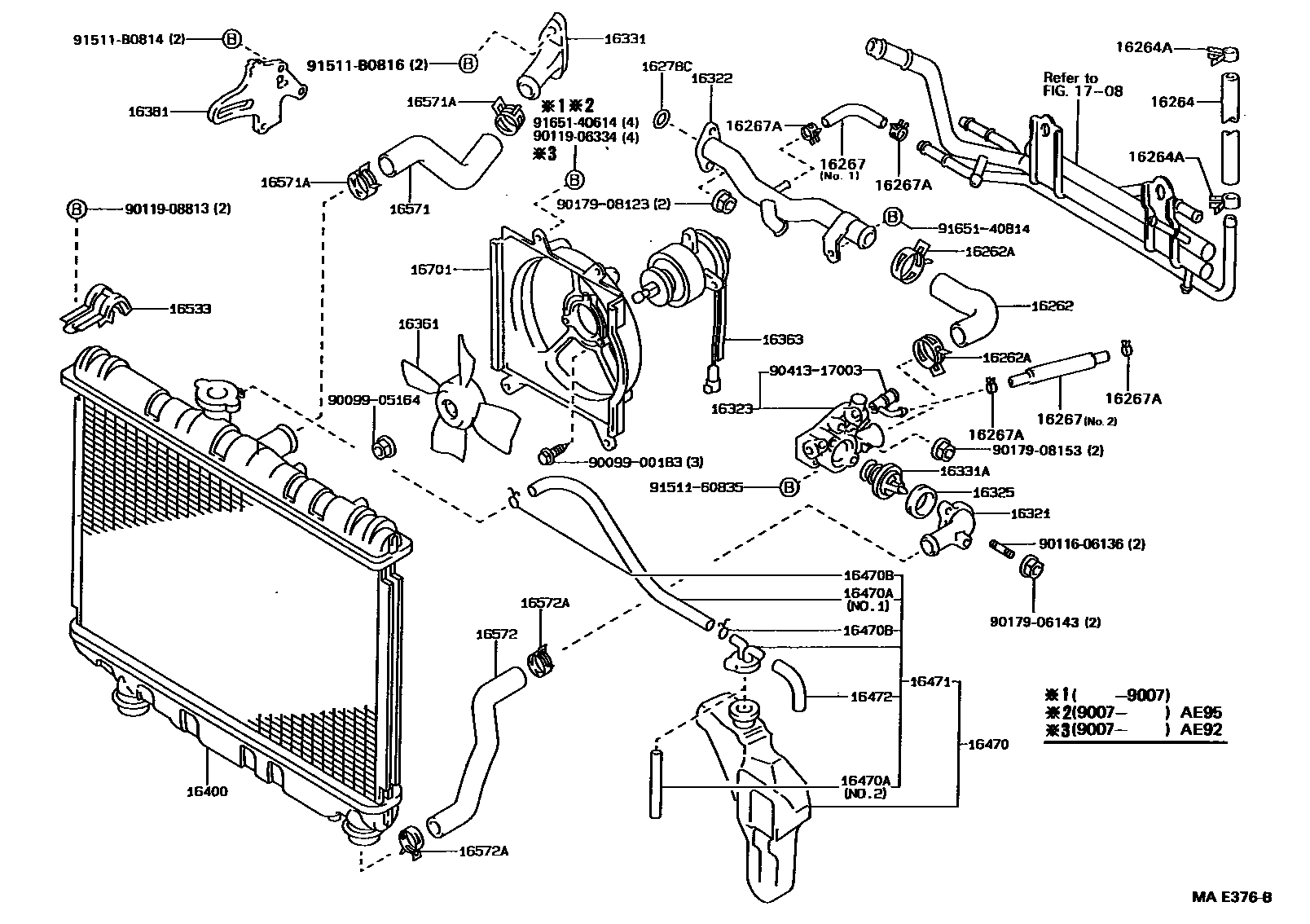

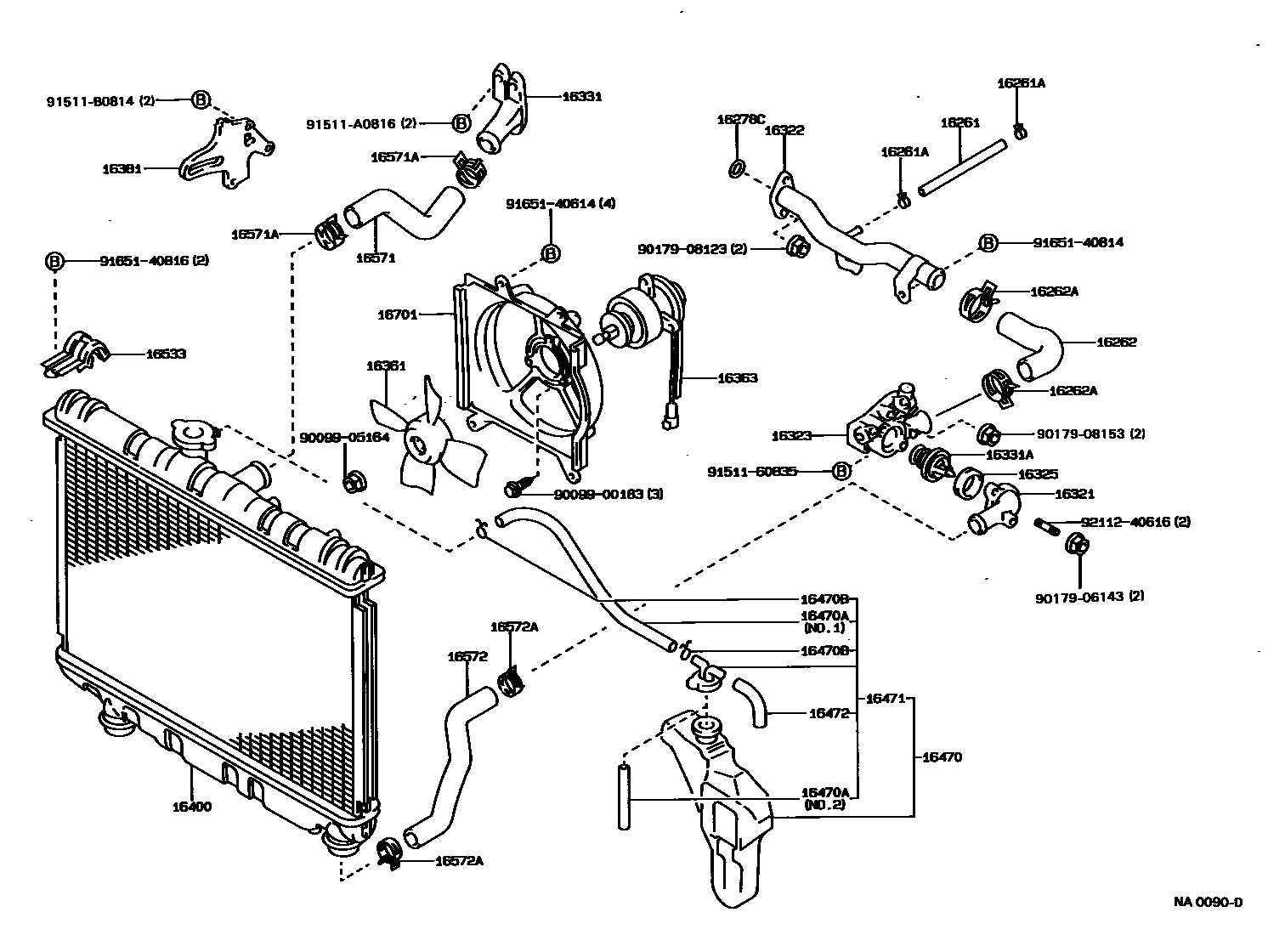

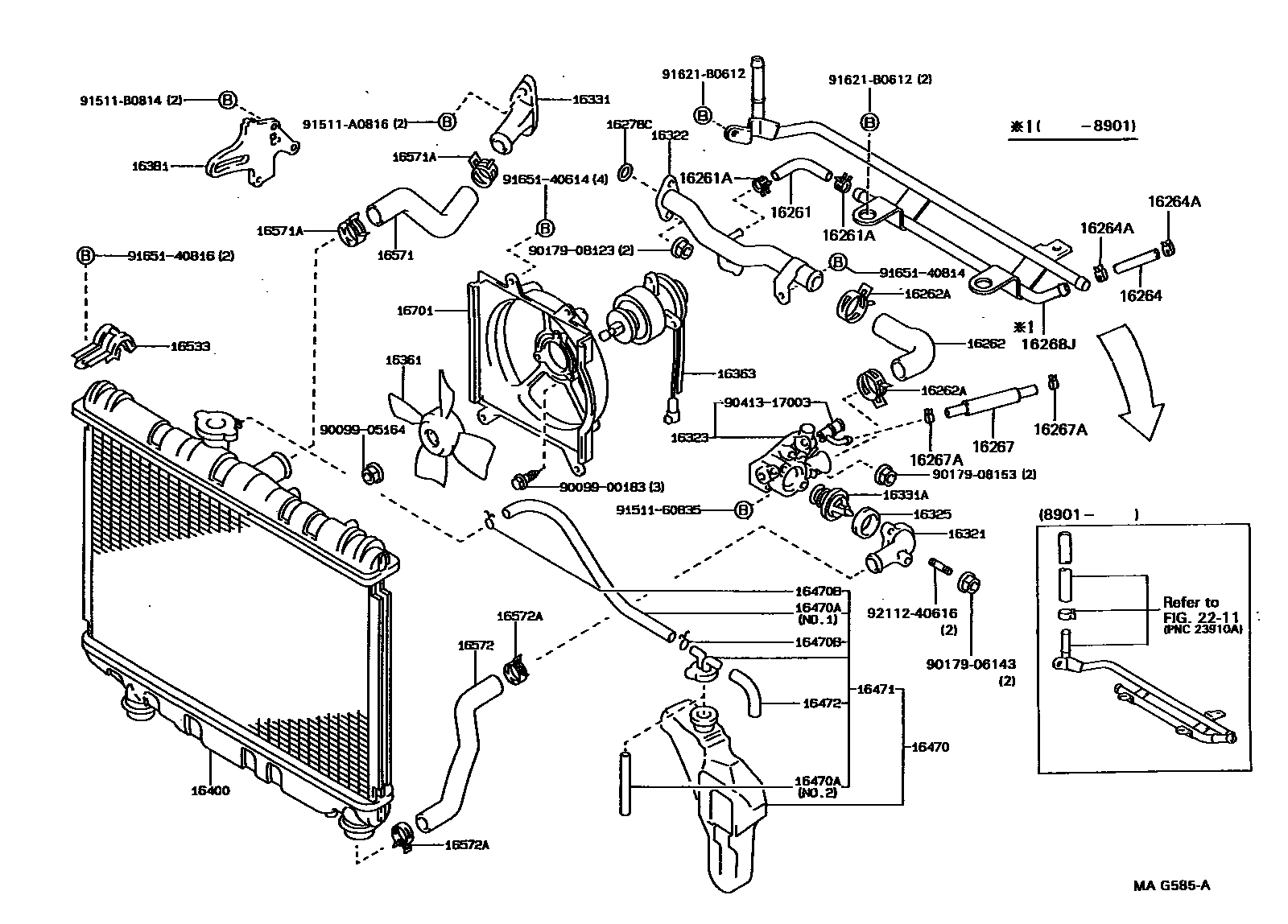

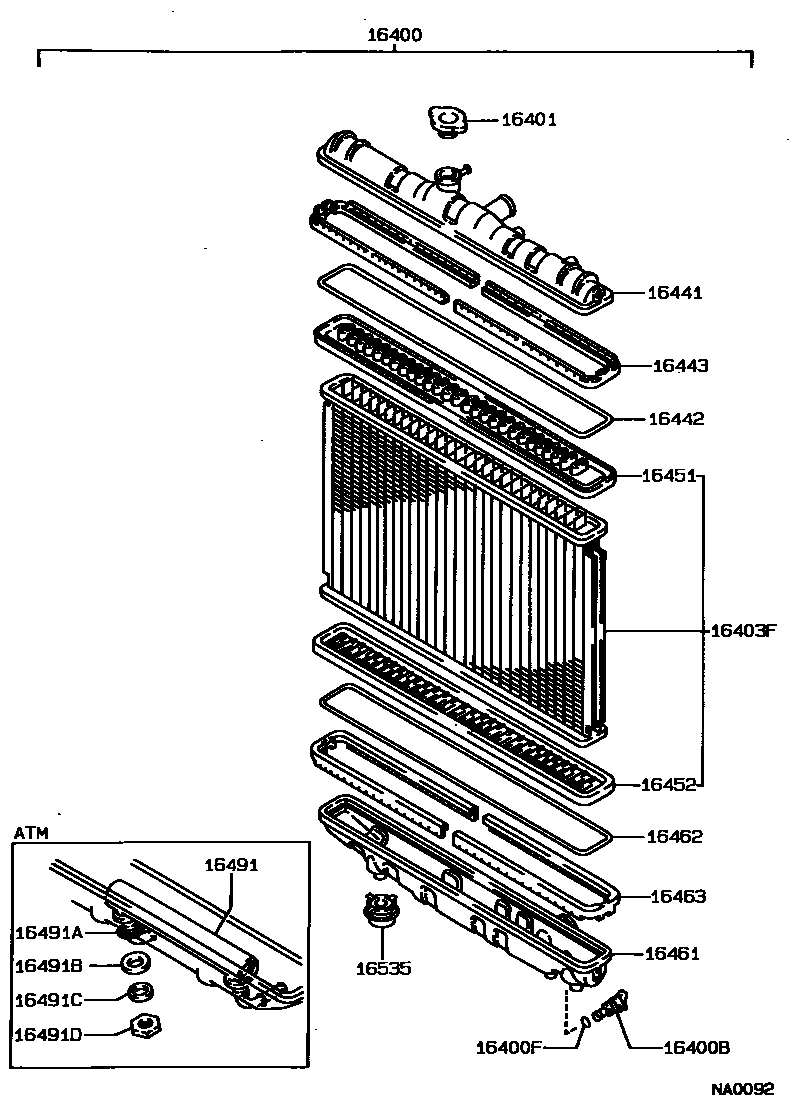

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 99555-10180 · 99555-10200 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13001 |
| 16262 | water inlet hose | 16262-15030 |
| 16262A | Clamp (for water inlet hose) | 90467-36001 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-16050 · 99555-10180 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13001 · 96135-41300 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16264-16050 · 16267-16040 · 90447-15021 · 99555-10180 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-13001 · 96135-41300 |
| 16268J | No. 5 water bypass pipe | 16268-15080 · 16268-16080 |
| 16278C | O-ring (for No. 2 water bypass pipe) | 96711-24035 |
| 16321 | water inlet | 16321-15020 |
| 16322 | PIPE, WATER INLET | 16322-15020 · 16322-15040 · 16322-15041 |
| 16323 | HOUSING, WATER INLET | 16323-15090 · 16323-15100 · 16323-16090 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 |
| 16331 | Water outlet | 16331-15070 · 16331-15080 |
| 16331A | thermostat | 90916-03046 |
| 16361 | Fan | 16361-15080 · 16361-63020 · 16361-64010 |
| 16363 | cooling fan motor | 16363-16030 · 16363-64010 · 16363-64030 |
| 16381 | Fan belt adjustment lever | 16381-15060 |
| 16400 | Radiator assembly | 16400-11210 · 16400-15380 · 16400-15400 · 16400-15410 · 16400-15420 · 16400-15440 · 16400-16230 · 16400-16290 |
| 16400B | Radiator drain switch screw plug | 16417-15210 · 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16418-24200 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-15210 · 16401-63010 |
| 16403F | Radiator core sub-assembly | 16403-15390 · 16403-64111 · 16403-74170 · 16403-74180 |
| 16441 | Radiator water tank | 16441-15371 · 16441-15410 · 16441-16200 |
| 16442 | O-ring (for radiator tank) | 16442-63030 · 16442-70080 · 16462-63030 |
| 16443 | Radiator upper tank locking plate | 16443-15321 · 16443-15370 · 16463-15320 |
| 16451 | Radiator core upper plate | 16451-63030 · 16451-70080 · 16452-64070 |
| 16452 | Radiator core lower plate | 16452-15370 · 16452-63030 · 16452-64070 |
| 16461 | Radiator lower tank | 16461-15371 · 16461-15390 · 16461-15400 · 16461-15410 · 16461-15420 · 16461-15440 · 16461-16170 · 16461-16200 |
| 16462 | O-ring (for radiator lower tank) | 16462-15370 · 16462-63030 |
| 16463 | Radiator lower tank locking plate | 16463-15320 · 16463-15370 |
| 16470 | Radiator reservoir assembly | 16470-15040 |
| 16470A | Hoses or tubes (for radiator reservoir) | 90445-12078 · 90445-12117 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-15050 |
| 16472 | Breather hose | 85338-74040 |
| 16491 | Oil cooler (for ATM) | 16491-15390 · 16491-15420 · 16491-63040 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-15390 · 16492-35080 · 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-15130 · 16493-15390 |
| 16491C | Spring washer (for automatic transmission oil cooler) | 16494-15130 · 16494-15390 |
| 16491D | Nut (for automatic transmission oil cooler) | 16496-15130 · 16496-15390 |
| 16533 | Radiator upper bracket | 16533-15090 |
| 16535 | Radiator lower support | 16535-11030 · 16535-15020 |
| 16571 | Radiator water inlet hose | 16571-15140 · 16571-15150 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34003 |
| 16572 | Radiator outlet hose | 16572-15190 · 16572-16100 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-34003 |
| 16701 | Fan cover sub-assembly | 16711-15220 · 16711-15230 · 16711-15240 · 16711-16140 · 16711-16150 |
