Toyota COROLLA Standard Tools — Figure 0901

Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 8 PNC and OE references.

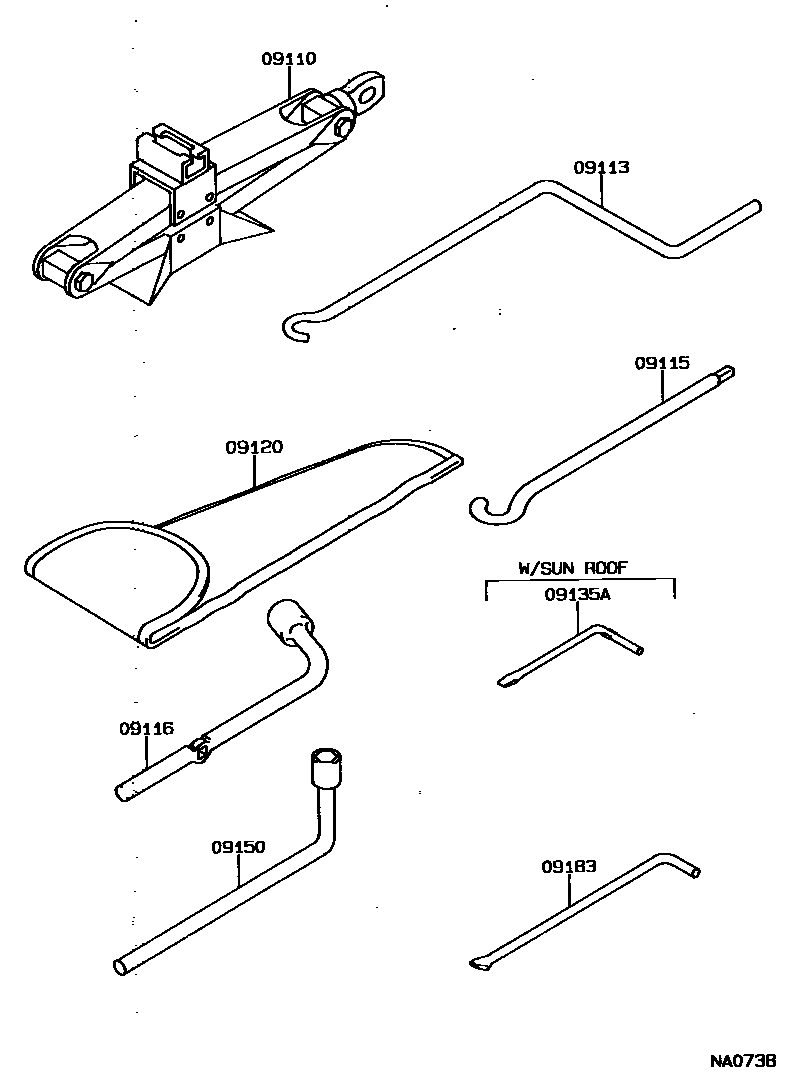

Toyota COROLLA Standard Tools EPC diagram — NA0738
Standard Tools — NA0738 (198708 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09111-12090 · 09111-12100 · 09111-12130
09113Jack Handle09113-12010 · 09113-20030
09115Jack Handle Rod Sub-Assembly09115-16030
09116Jack Handle Rod09116-16010
09120Tool Bag09120-12030 · 09120-32010
09135Ascrewdriver tip09135-00012
09150Wheel Nut Wrench09150-26010
09183Wheel Cap Remover09183-00010
