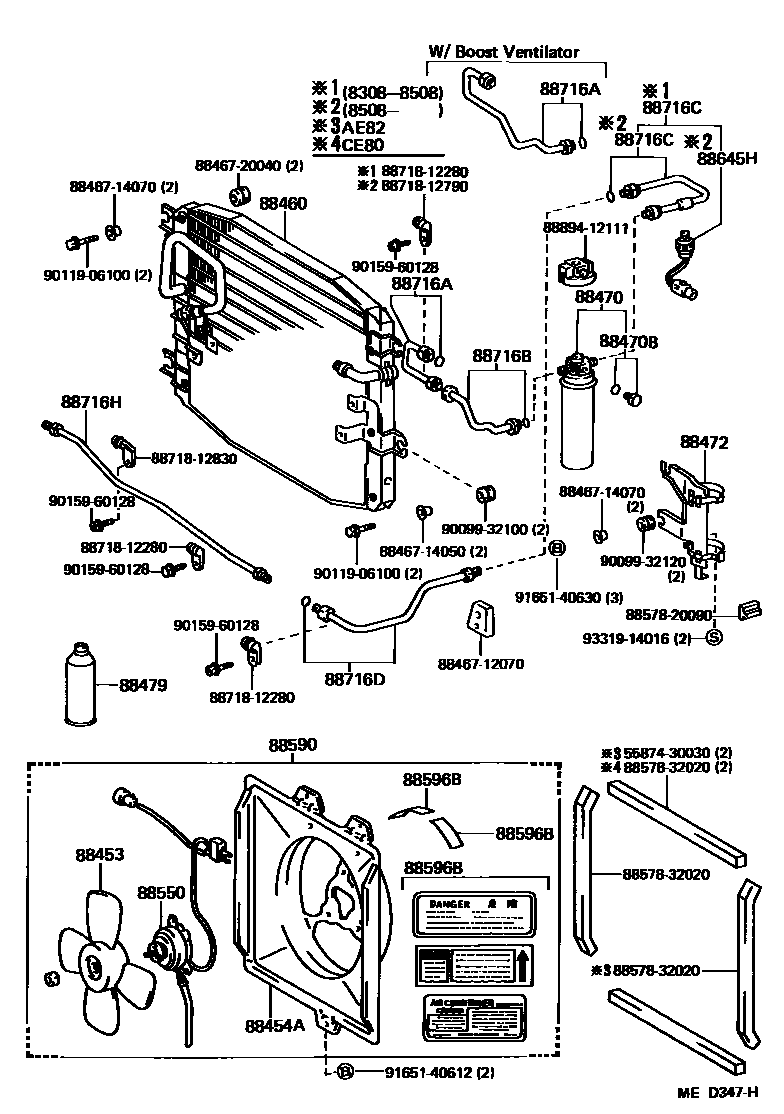

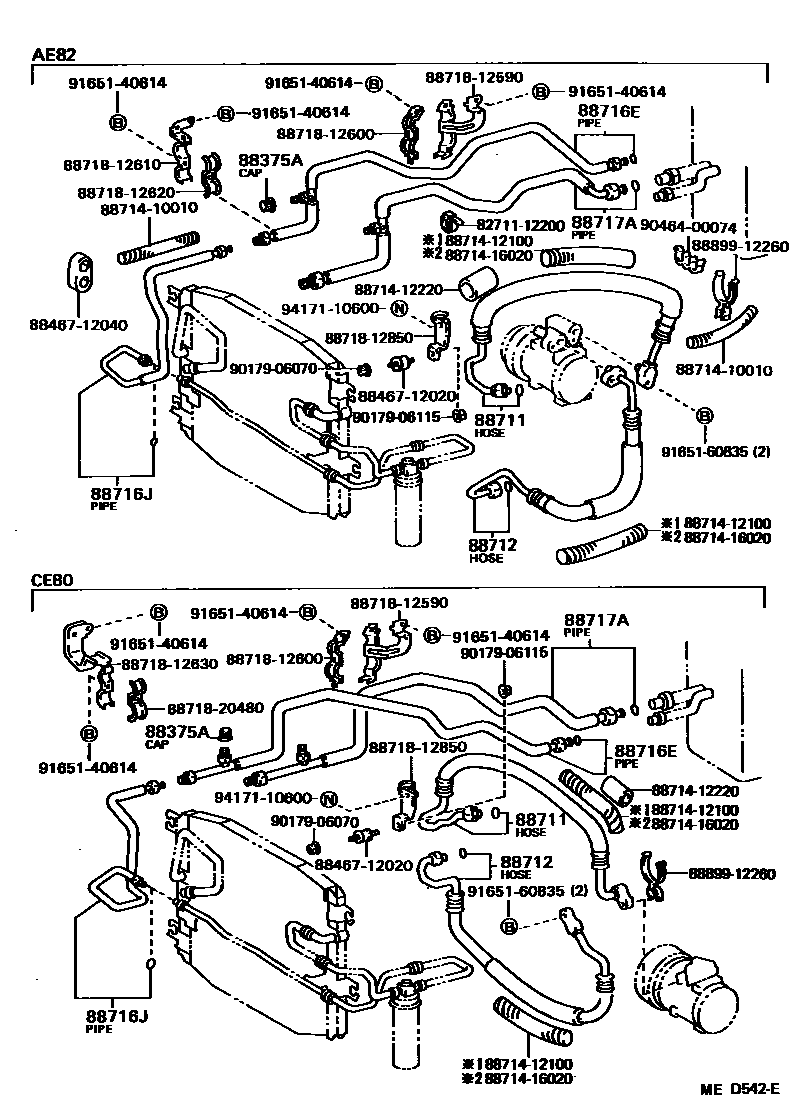

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375A | Repair valve cover (for cooler tube) | 88375-20010 · 88375-30270 |
| 88453 | Cooling fan (for condenser) | 16361-28010 · 88453-10010 · 88453-32010 |
| 88454A | fan cover | 88454-12050 · 88454-12060 · 88454-12090 |
| 88460 | Air conditioning condenser assembly | 88460-12250 · 88460-12251 |
| 88470 | Cooler reservoir and dryer assembly | 88470-12061 · 88470-14010 |
| 88470B | fuse bolt | 88475-12020 |
| 88472 | No. 1 liquid storage tank bracket | 88473-20010 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88550 | Blower motor assembly (for condenser) | 88550-12080 · 88550-12090 |
| 88590 | Blower assembly with hood | 88590-12040 · 88590-12060 · 88590-12090 · 88590-12100 · 88590-12130 |
| 88596B | No. 1 warning nameplate | 88596-12010 · 88596-12040 · 88596-14010 |
| 88645H | No. 1 pressure switch | 88645-32020 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12260 · 88711-12261 · 88711-12270 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-12410 · 88712-12420 · 88712-12500 · 88712-12501 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-12750 · 88716-12860 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-12870 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-12810 · 88716-12850 |
| 88716D | Cooler refrigerant liquid pipe D | 88716-12830 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-12660 · 88716-12661 · 88716-12680 |
| 88716H | Cooler refrigerant liquid pipe H | 88716-12820 |
| 88716J | Cooler refrigerant liquid pipe J | 88716-12670 · 88716-12800 |
| 88717A | Cooler refrigerant suction pipe A | 88717-12180 · 88717-12190 |
