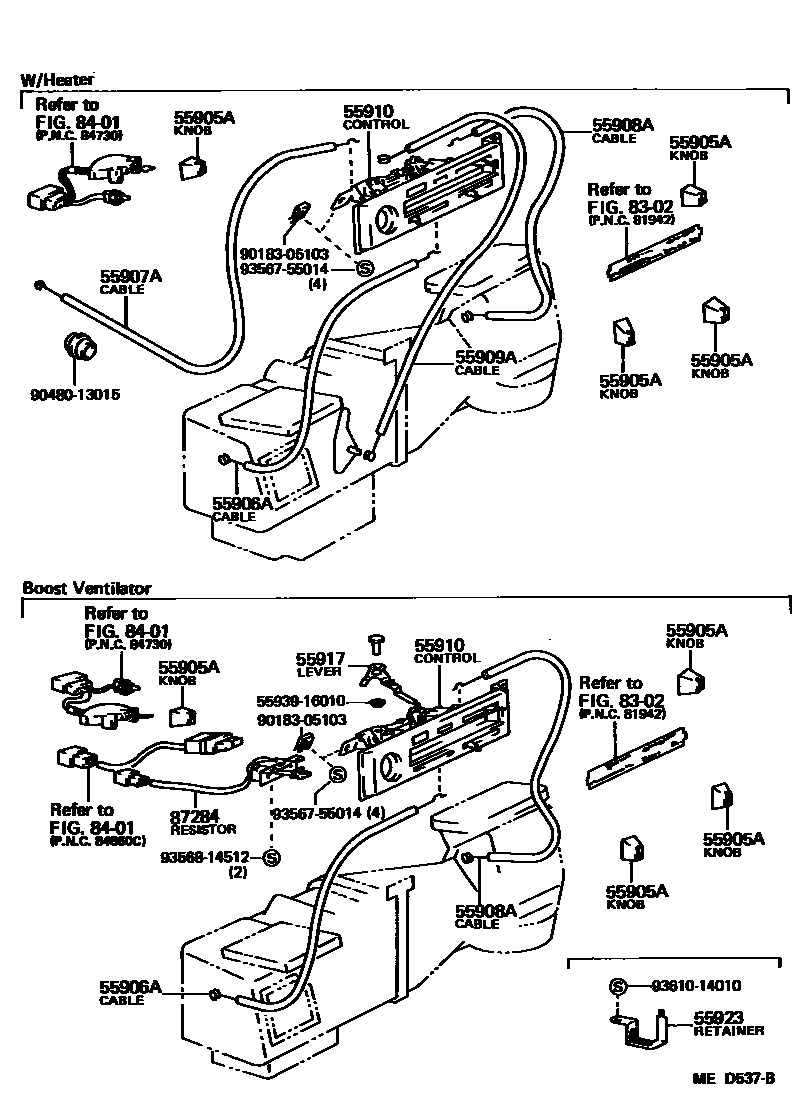

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55905A | Heater control button | 55905-12060 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12190 |
| 55907A | Water valve control cable sub-assembly | 55907-12250 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12170 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12150 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-12360 · 55910-12400 |
| 55917 | air inlet control panel | 55917-12070 |
| 55923 | Heater controller upper fixing piece | 55923-12060 |

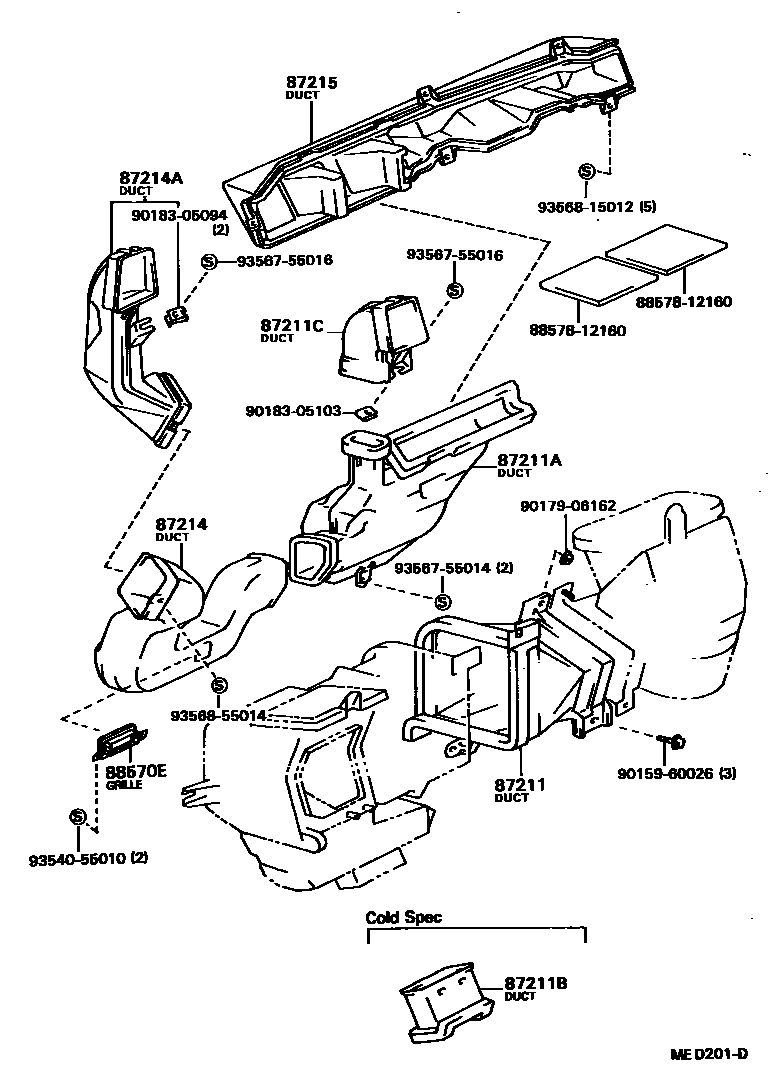

| 87211 | No. 1 air duct | 87201-12080 |
| 87211A | Duct No. 2 | 87201-12050 |
| 87211B | No. 3 air duct | 87211-12110 |
| 87211C | No. 4 air duct | 55086-12130 · 55086-12131 |
| 87214 | Air duct No. 1 on the right | 55844-12140 · 55844-12170 |
| 87214A | Air duct No. 2 on the right | 55084-12100 · 55084-12101 |
| 87215 | Air duct No. 1 on the left | 55087-12080 |
| 87284 | Variable resistor sub-assembly | 88032-12070 |
| 88570E | Air outlet grille assembly | 55680-32010 |
