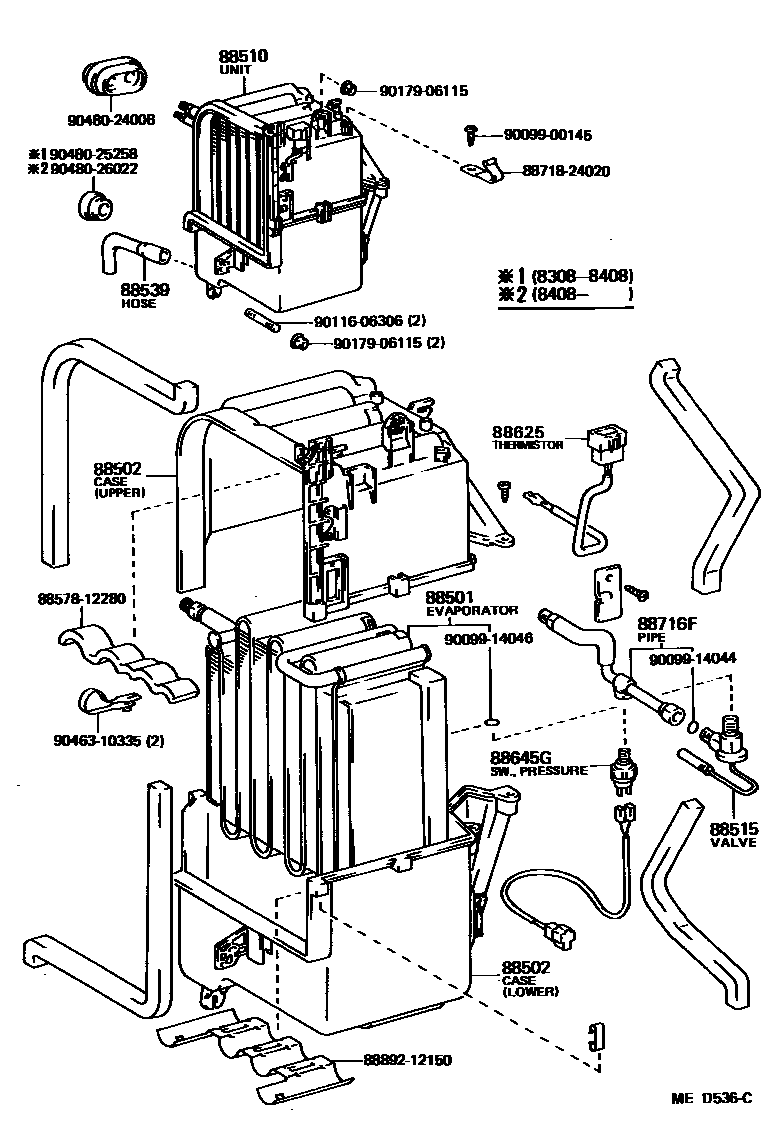

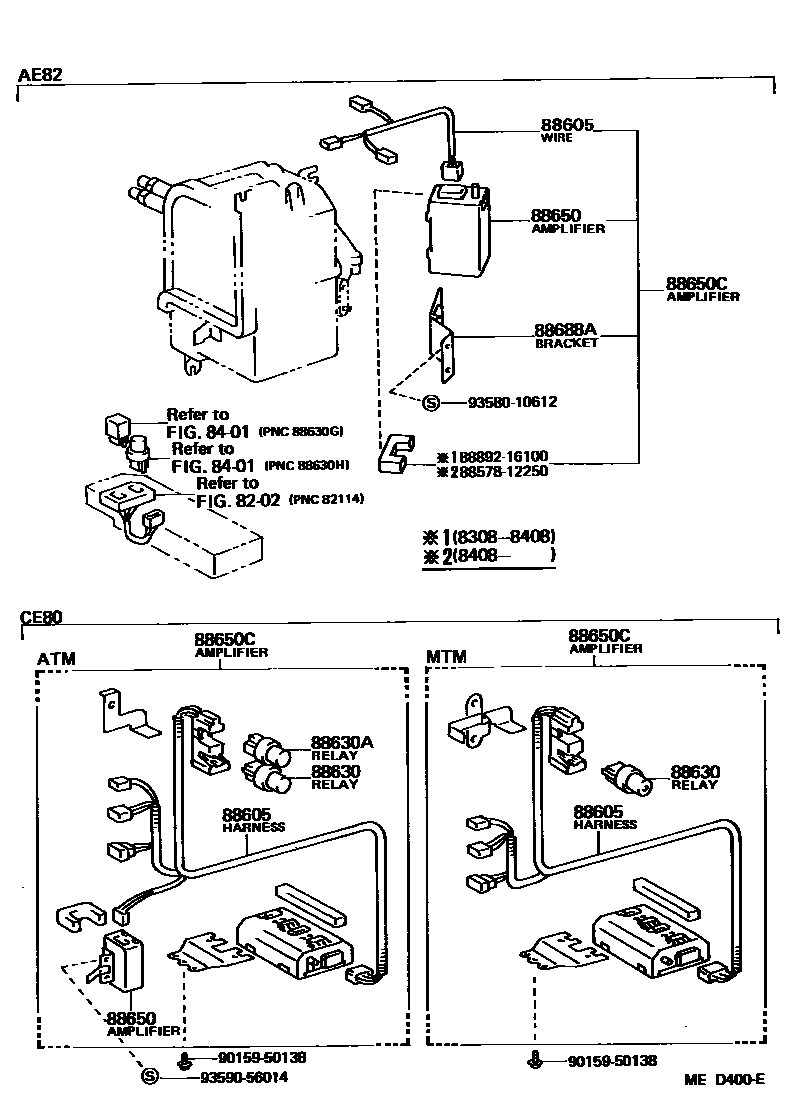

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-16050 · 88501-16051 |
| 88502 | Cooling device shell sub-assembly | 88502-16051 · 88502-16061 |
| 88510 | Cooler device assembly | 88510-12640 · 88510-16090 |
| 88515 | Cooler expansion valve | 88515-16030 · 88515-16031 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12080 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-12380 · 88605-12381 · 88605-12630 · 88605-12690 · 88605-12700 · 88605-12710 · 88605-12720 |
| 88625 | Cooler No. 1 Thermistor | 88625-12200 · 88625-16060 |
| 88630 | Cooler relay assembly | 90987-02004 |
| 88630A | Cooler relay assembly | 90987-03001 |
| 88645G | pressure switch | 88645-10020 · 88645-12020 |
| 88650 | Cooler stabilized amplifier assembly | 88650-12240 · 88650-12250 · 88650-12300 · 88650-12320 · 88650-14140 · 88650-16030 |
| 88650C | Air conditioning amplifier sub-assembly | 88650-12220 · 88650-12221 · 88650-12260 · 88650-12270 · 88650-12280 |
| 88688A | Cooler stabilized amplifier stand | 88688-16080 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-16170 |
