Toyota COROLLA 后视镜 — Figure 8701

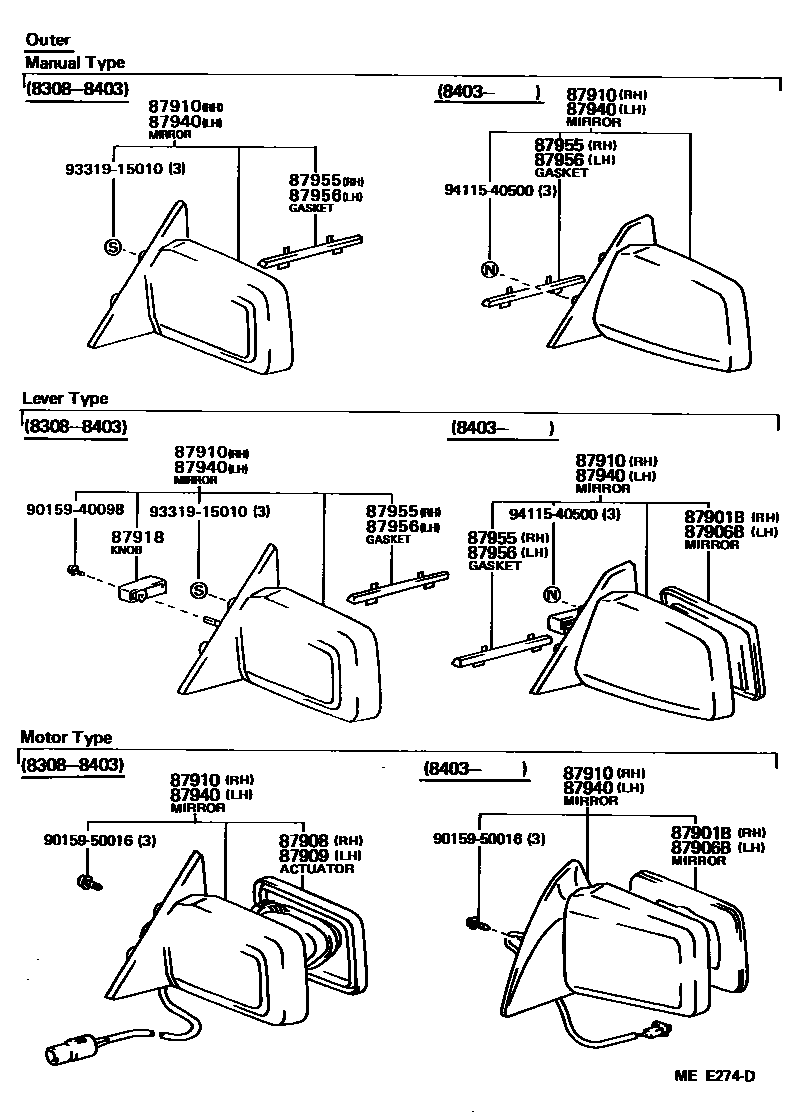

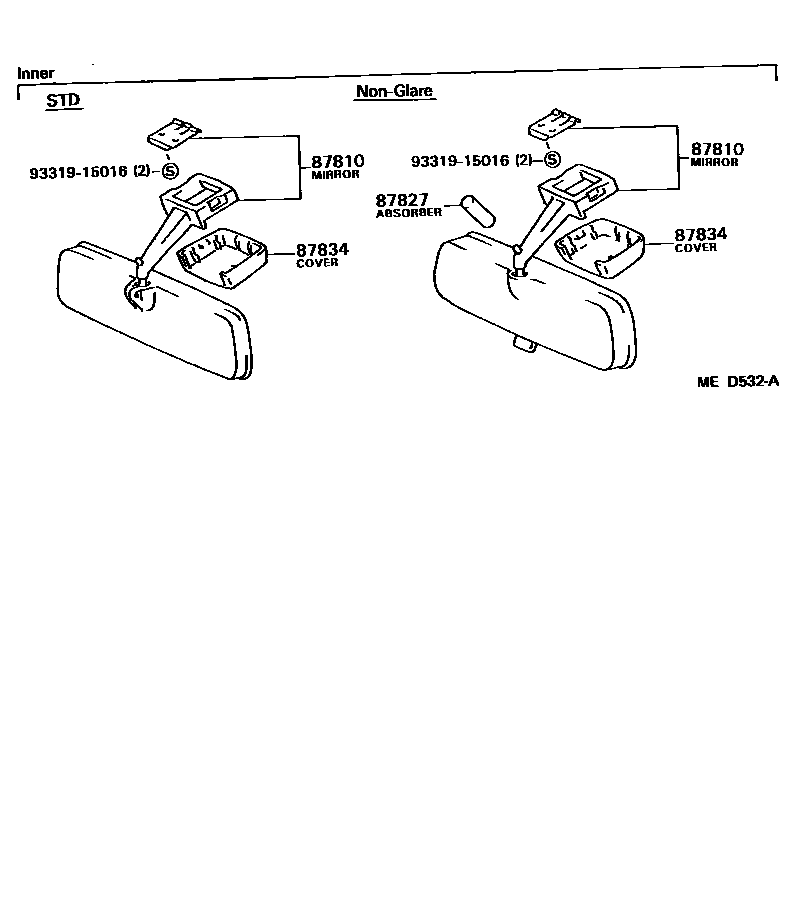

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87827 | Interior rearview mirror shock absorber | 87828-22020 · 87828-23010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87908-16060 · 87931-12890 |
| 87906B | Left exterior rearview mirror sub-assembly | 87909-16050 · 87961-1A090 |
| 87908 | Right exterior rearview mirror actuator assembly | 87908-12070 |
| 87909 | Left exterior rearview mirror actuator assembly | 87909-12060 |
| 87910 | Right exterior rearview mirror assembly | 87910-12530 · 87910-12540 · 87910-12550 · 87910-12890 · 87910-12891 · 87910-1A010 · 87910-1A020 |
| 87918 | Exterior rearview mirror control handle | 87918-12040 |
| 87940 | Left exterior rearview mirror assembly | 87940-12600 · 87940-12610 · 87940-12611 · 87940-12620 · 87940-12750 · 87940-1A090 · 87940-1A091 · 87940-1A100 |
| 87955 | Right exterior mirror base lower pad | 87955-12010 · 87955-12020 |
| 87956 | Left side exterior mirror base lower pad | 87956-12010 · 87956-12020 |
