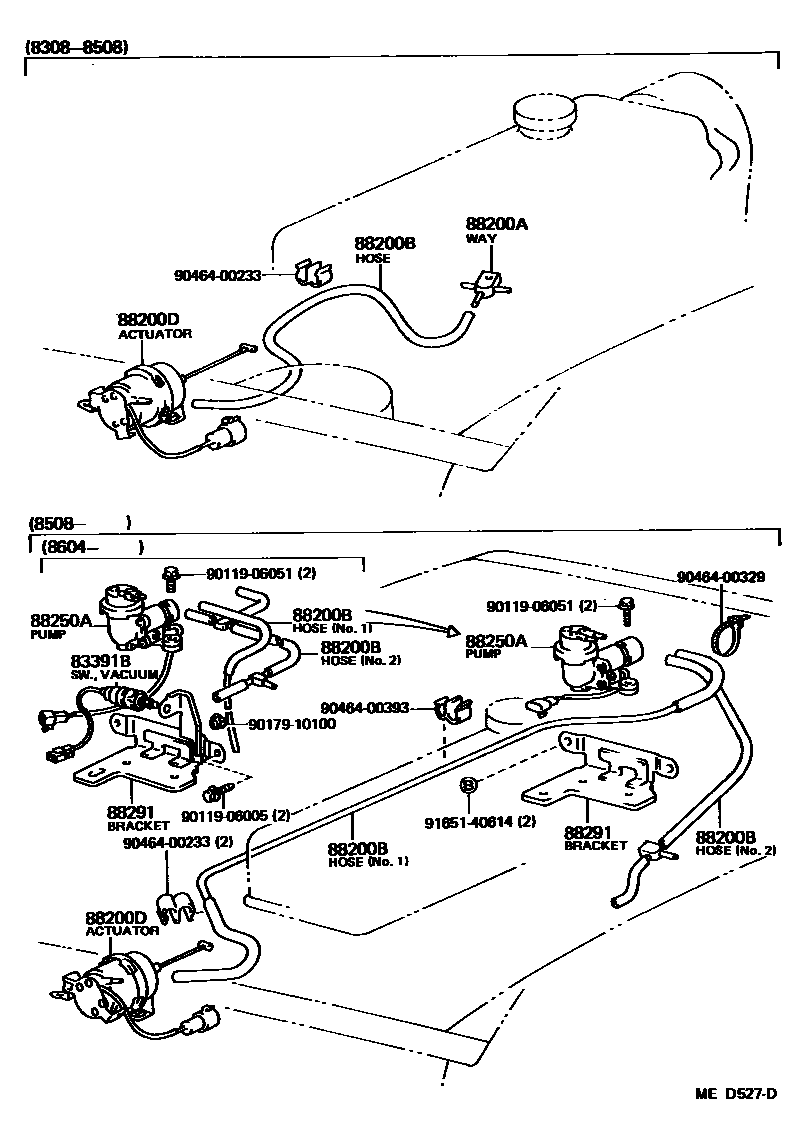

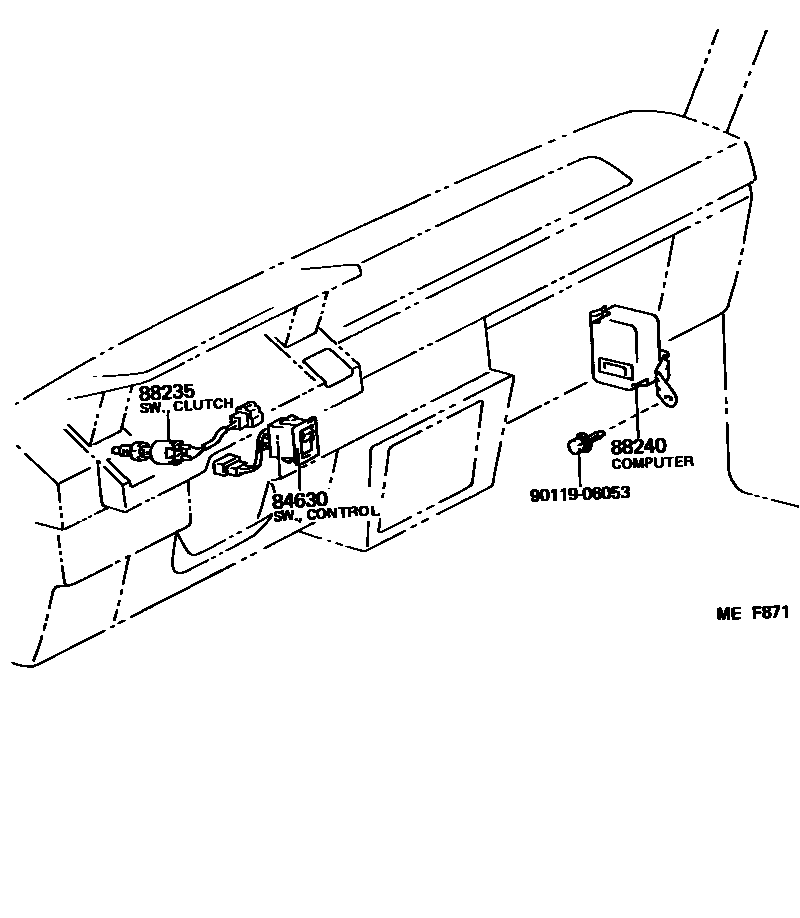

Toyota COROLLA 巡航控制(自动行驶) — Figure 8408
Toyota COROLLA EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83391B | Automatic driving vacuum switch | 83391-14090 |
| 84630 | Cruise control main switch assembly | 84630-32020 · 84630-32040 |
| 88200A | cruise control vacuum fitting or tube | 90413-04005 |
| 88200B | cruise control vacuum hose | 88283-12010 · 88283-12050 · 90447-04068 |
| 88200D | Cruise control actuator assembly | 88200-12030 · 88200-12031 · 88200-12032 |
| 88235 | Cruise control (automatic driving) release switch assembly | 88280-35010 |
| 88240 | Cruise control ECU assembly | 88240-12040 · 88240-12050 · 88240-12090 · 88240-12091 |
| 88250A | cruise control pump assembly | 88251-12080 |
| 88291 | No. 1 cruise control (automatic driving) bracket | 88291-12010 · 88291-12060 |
