Toyota COROLLA indicator light — Figure 8302

Toyota COROLLA EPC diagram 8302, indicator light, with 1 images and 3 PNC and OE references.

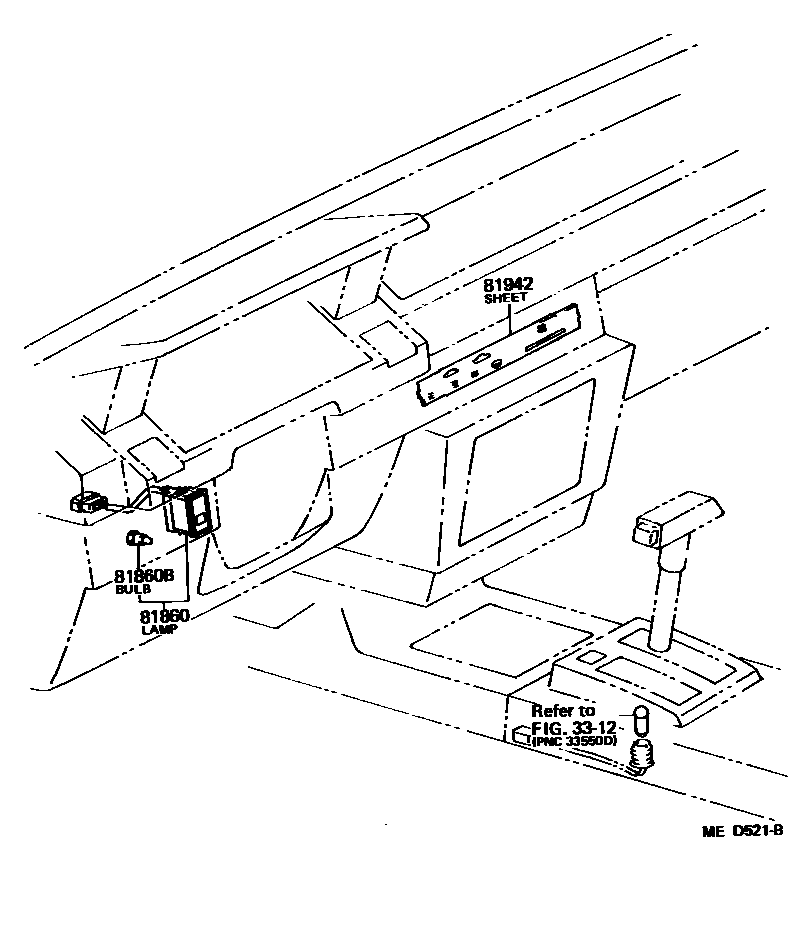

Toyota COROLLA indicator light EPC diagram — MED521B
indicator light — MED521B (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
81860Transmission indicator light assembly81860-12030
81860BTransmission indicator light bulb84999-10110
81942Heater control nameplate81942-12090 · 81942-12091 · 81942-12110 · 81942-12111 · 81942-12120 · 81942-12180 · 81942-12190 · 81942-12200
