Toyota COROLLA 后组合灯 — Figure 8111

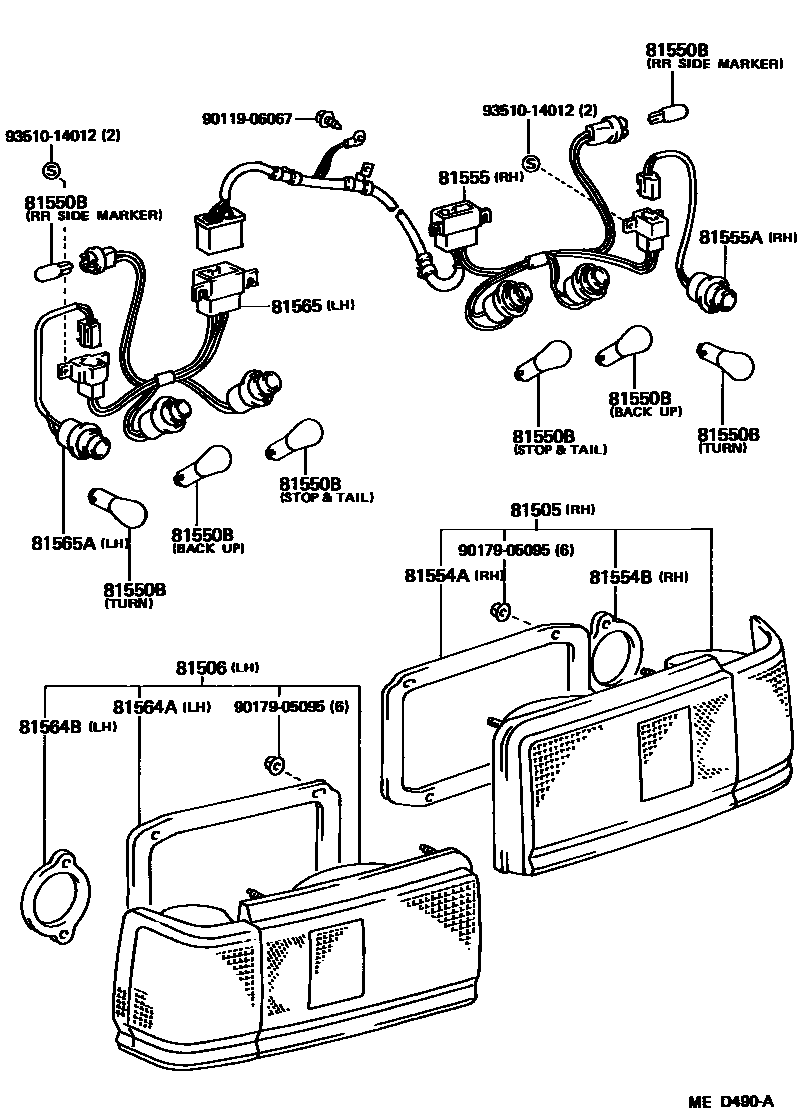

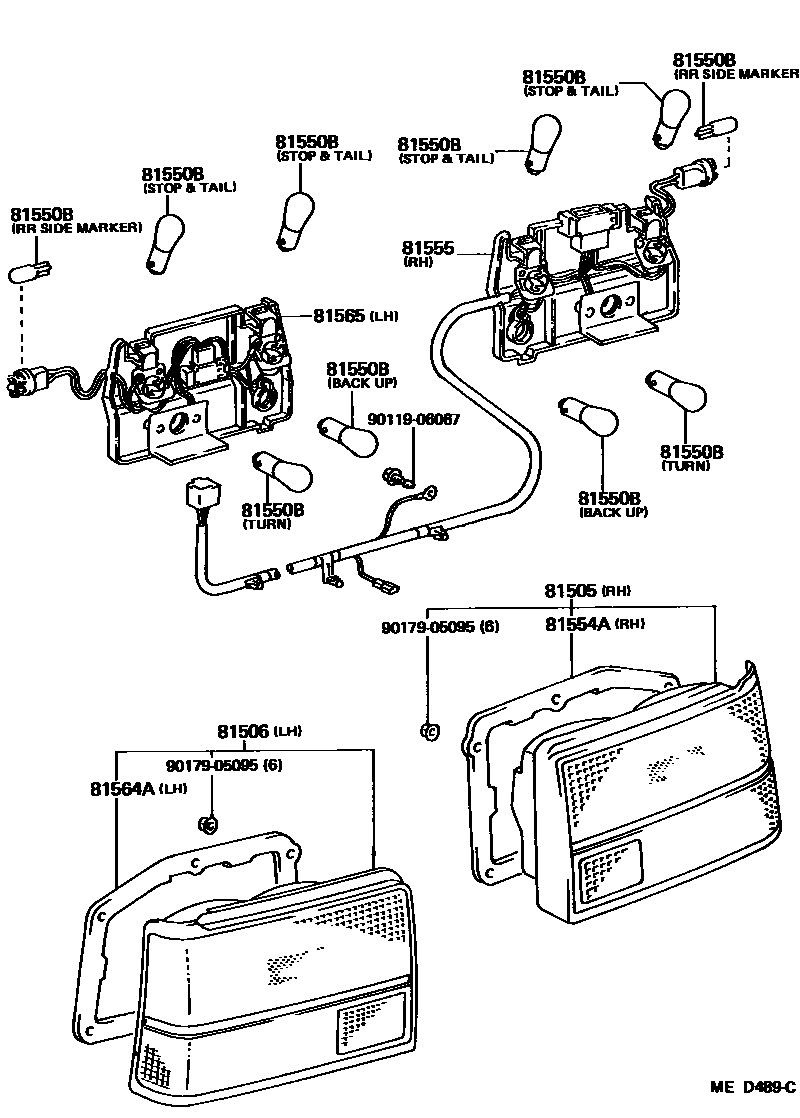

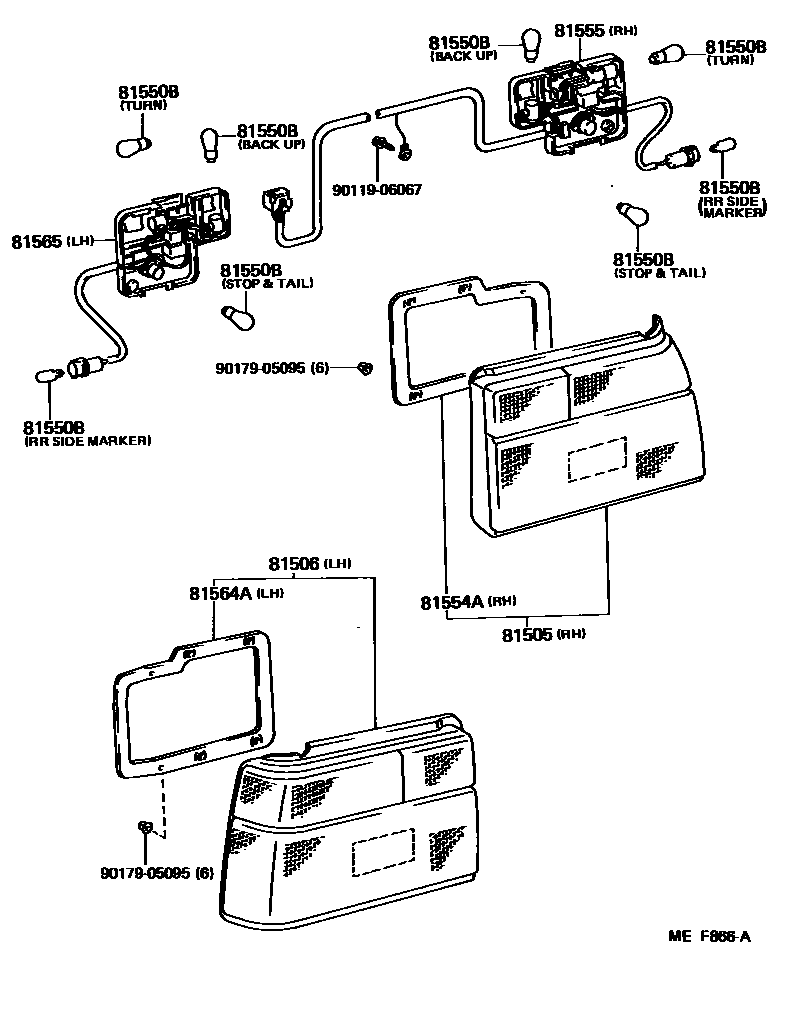

Toyota COROLLA EPC diagram 8111, 后组合灯, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81505 | Right rear combination lamp sub-assembly | 81505-12770 · 81505-19715 · 81505-19735 |
| 81506 | Left rear combination lamp sub-assembly | 81506-12690 · 81506-19575 · 81506-19595 |
| 81550B | Bulb (for rear combination lights) | 90981-11020 · 99132-11270 · 99132-21270 |
| 81554A | No. 1 right rear combination lamp body gasket | 81554-1A150 · 81554-1A180 · 81554-1A310 |
| 81554B | No. 2 right rear combination lamp body gasket | 81552-1A180 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-1A060 · 81555-1A170 · 81555-1A200 · 81555-1A201 |
| 81555A | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81558-1A200 |
| 81564A | No. 1 left rear combination light lamp body gasket | 81554-1A150 · 81554-1A180 · 81554-1A310 |
| 81564B | No. 2 left rear combination lamp body gasket | 81552-1A180 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-12870 · 81565-1A170 · 81565-1A200 · 81565-1A201 |
| 81565A | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81558-1A200 |
