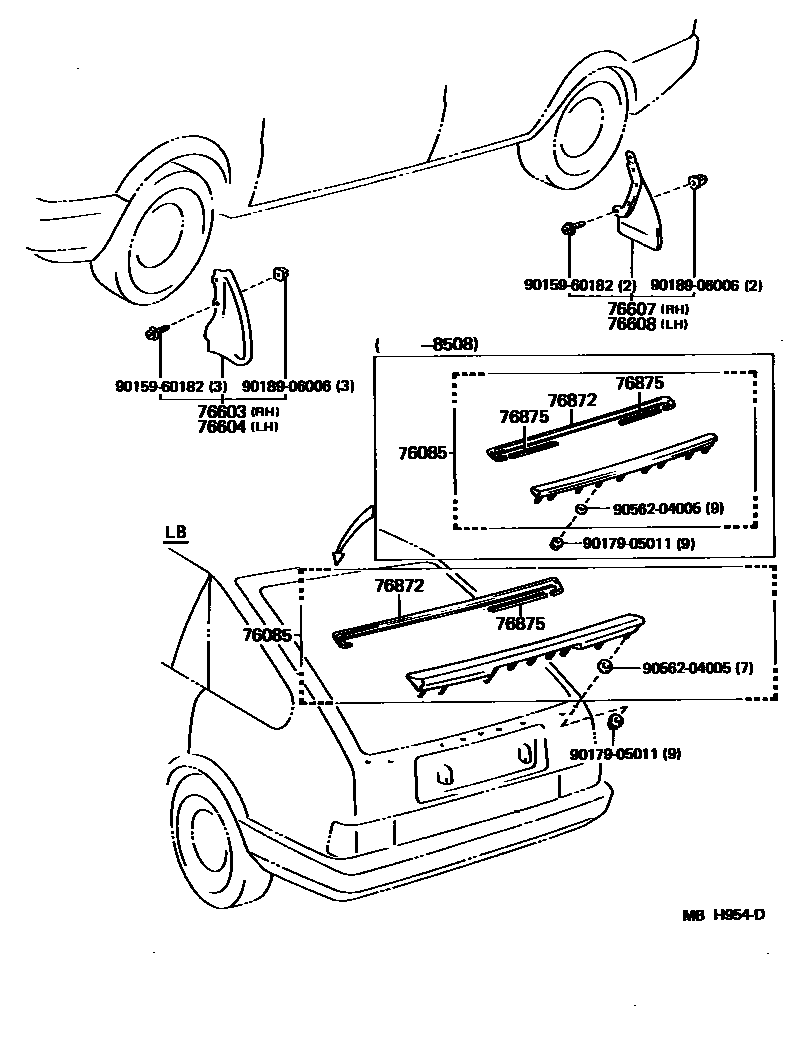

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76085-12020 · 76085-12080 |
| 76603 | Right front fender fender sub-assembly | 76621-19085 |
| 76604 | Left front fender fender sub-assembly | 76622-19085 |
| 76607 | Right rear side fender sub-assembly | 76625-19045 |
| 76608 | Left rear side fender sub-assembly | 76626-19055 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12900 · 76872-12901 |
| 76875 | No. 4 rear spoiler protective strip | 76875-12010 · 76875-12050 |
