Toyota COROLLA 侧防护条 — Figure 7503

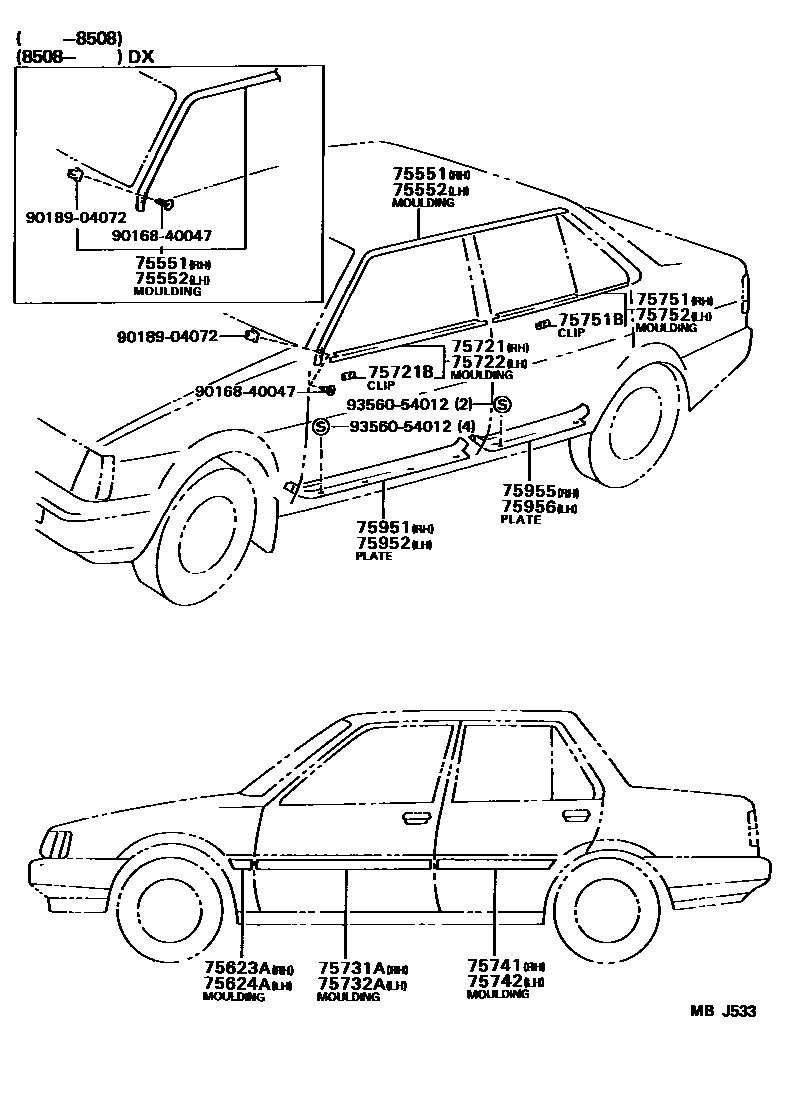

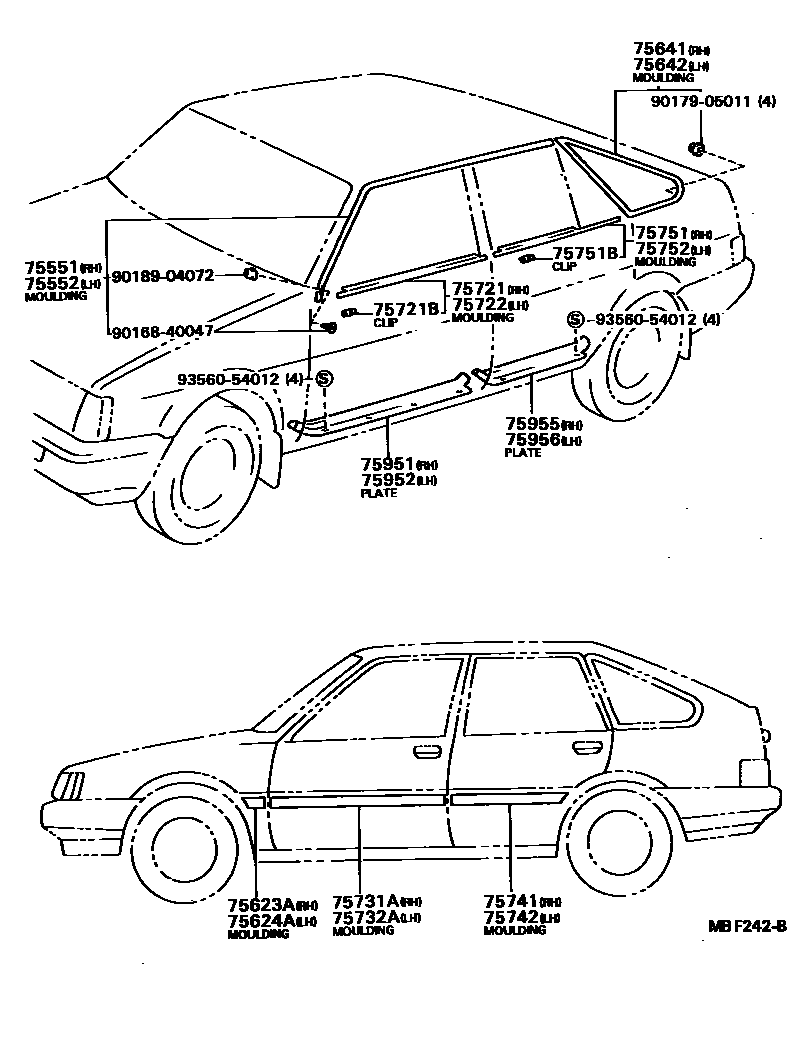

Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-12291 · 75551-19125 · 75551-19135 · 75551-19165 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-12291 · 75552-19125 · 75552-19135 · 75552-19165 |
| 75623A | Right front fender outer rear protective strip | 75623-12180 |
| 75624A | Left front fender outer rear protective strip | 75624-12180 |
| 75641 | Right front corner window outer protective strip | 68153-19035 |
| 75642 | Left front corner window protection strip | 68154-19035 |
| 75721 | Right front door waistline protection strip | 75710-12360 · 75710-12380 |
| 75721B | Clip (for front door waistline protective strip assembly) | 68211-12090 |
| 75722 | Left front door waistline protection strip | 75720-12360 · 75720-12380 |
| 75731A | Right front door outer protective strip | 75731-12430 |
| 75732A | Left front door outer protective strip | 75732-12270 |
| 75741 | Right rear door outer protective strip | 75741-12320 |
| 75742 | Left rear door outer protective strip | 75742-12300 |
| 75751 | Right rear door waistline protection strip | 75730-12050 · 75730-12060 |
| 75751B | Clip (for rear door waistline protection strip assembly) | 68211-12080 |
| 75752 | Left rear door waistline protection strip | 75740-12140 · 75740-12150 |
