Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

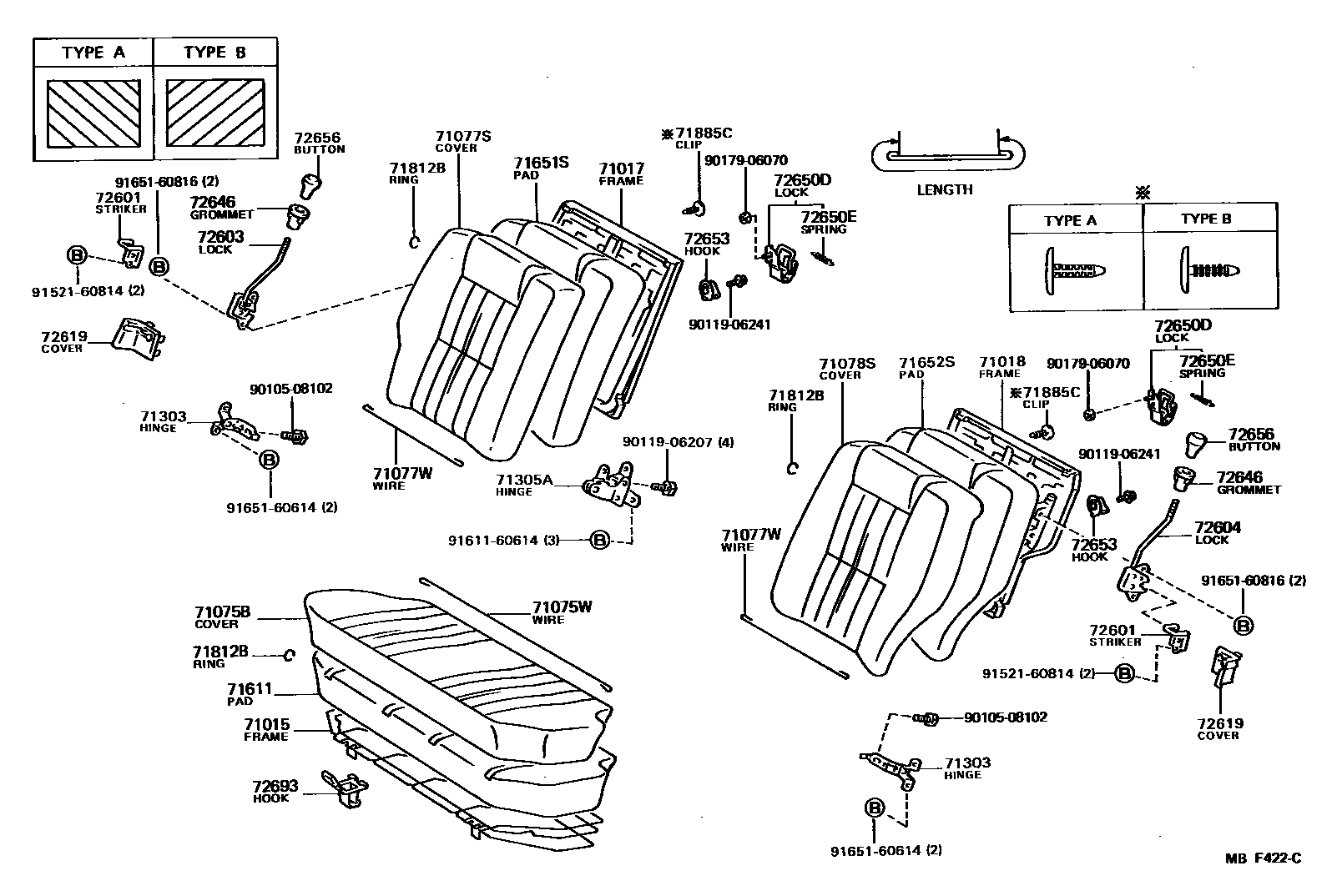

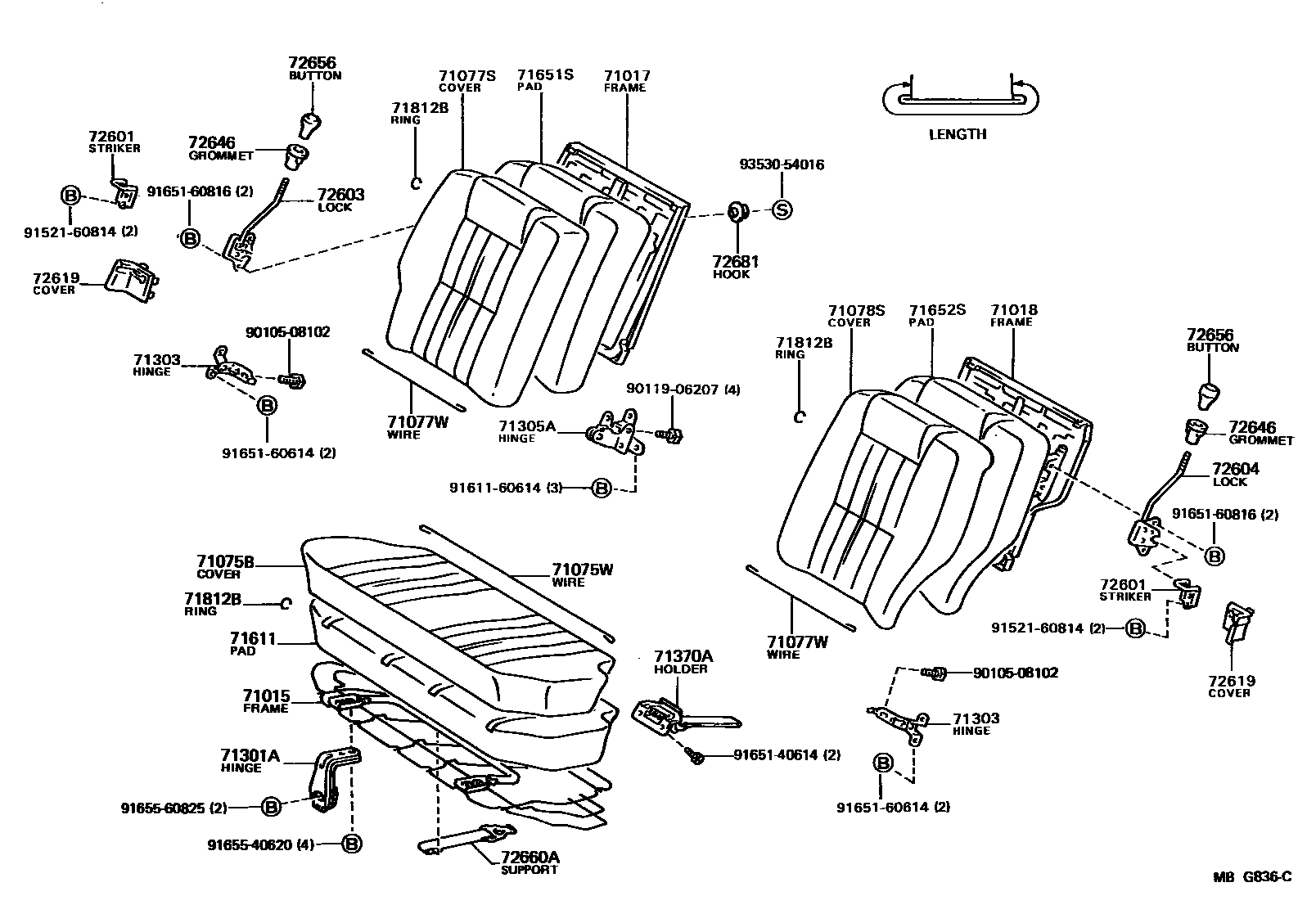

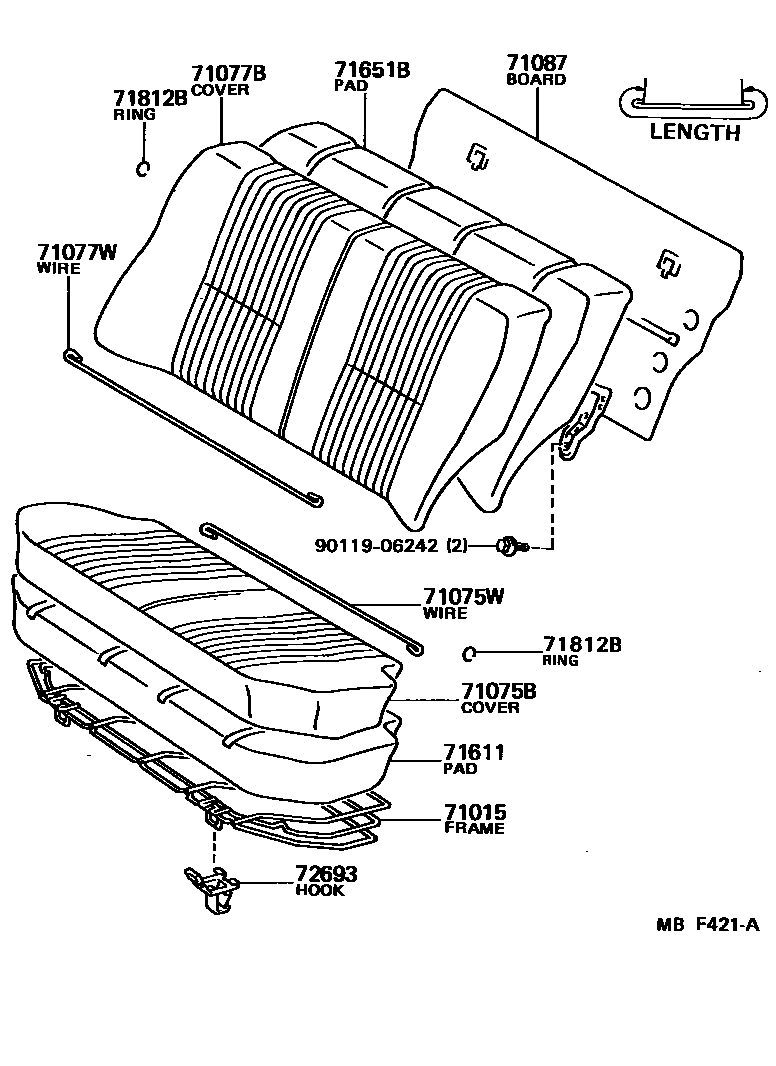

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-12250 · 71015-16030 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12240 · 71017-12250 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12030 · 71018-12040 |
| 71075W | Rear seat cushion protective wire | 90580-20015 · 90580-20132 |
| 71077W | Rear seat backrest protective wire | 90580-16024 · 90580-16041 · 90580-16063 · 90580-20021 · 90580-20032 · 90580-20108 · 90580-20171 · 90580-26012 |
| 71087 | Rear seat back panel sub-assembly | 71087-12010 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12030 |
| 71611 | Rear seat cushion cushion | 71611-12430 · 71611-12470 · 71611-12480 · 71611-12510 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-12450 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12430 · 71651-12460 · 71651-12530 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12330 · 71652-12340 · 71652-12390 |
| 71812B | Clip (for rear seat cushion cover) | 90468-18071 |
| 72601 | Rear seat lock sub-assembly | 72601-12080 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12110 · 72630-12120 |
| 72604 | Rear left seat back lock sub-assembly | 72640-12100 · 72640-12110 |
| 72650D | Rear seat back lock assembly | 72650-12020 |
| 72650E | Spring (for rear seat back lock) | 90508-10029 |
| 72693 | Rear seat cushion hook | 72693-16010 |
