Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

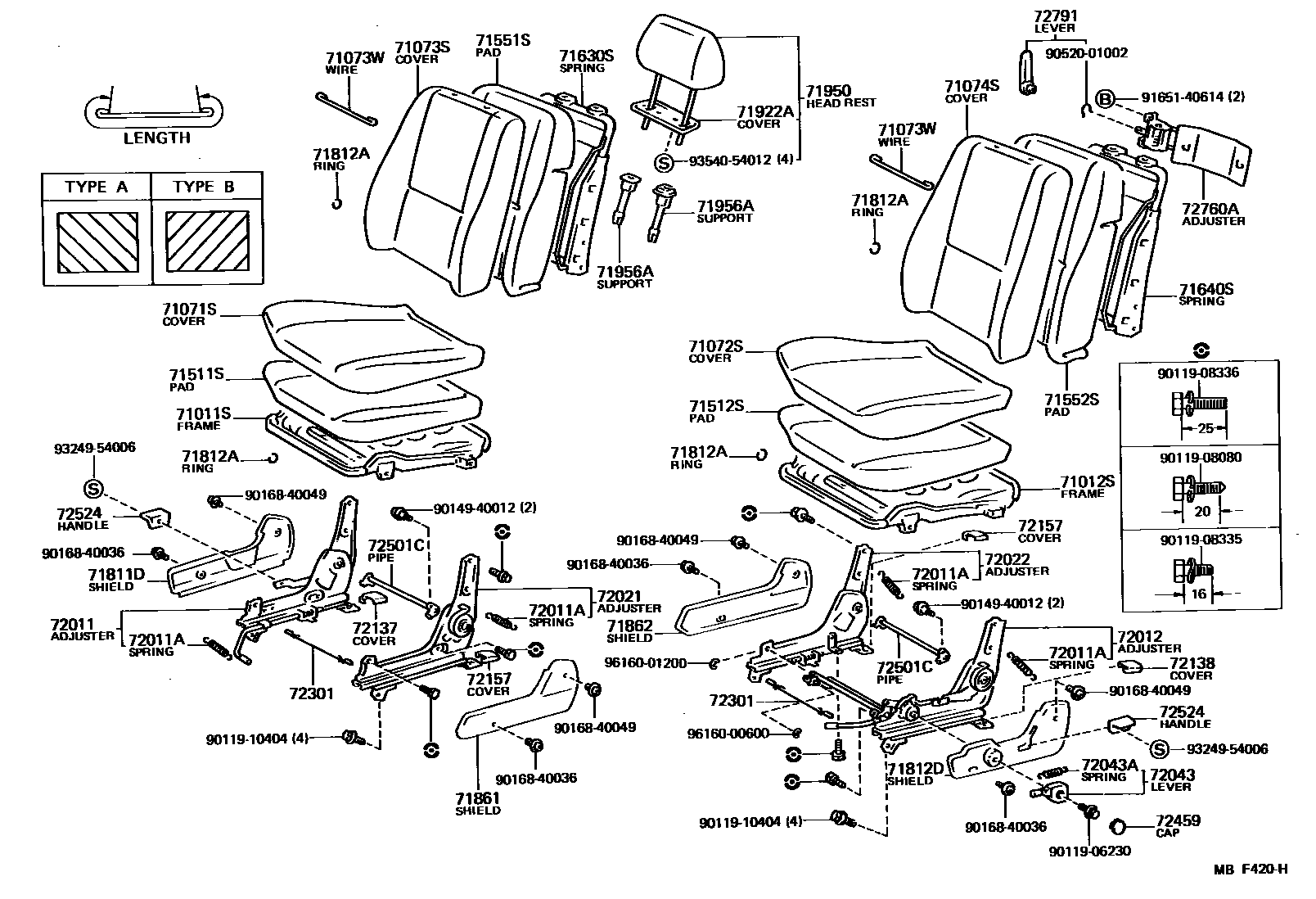

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-12190 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-12190 · 71011-12200 |
| 71073W | Front seat back cover wire | 90580-20012 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12490 · 71511-12560 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12490 · 71511-12560 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12440 · 71551-12490 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12440 · 71551-12490 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-16060 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-16060 · 71630-16080 · 71630-16081 |
| 71812A | Small clamp ring (for front seats) | 90468-18071 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-12030 |
| 72011A | Tension spring (for front seat outer adjusters) | 90506-14039 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12030 · 72012-12040 · 72012-12060 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12030 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12010 · 72022-12030 · 72022-12080 |
| 72043A | Tension spring (for lifting rod) | 90506-04001 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-12060 |
| 72501C | Seat back recline adjuster connecting pipe sub-assembly | 72501-12030 |
| 72760A | Lumbar support adjuster assembly | 72760-12040 · 72760-12050 |
