Toyota COROLLA 背门板和背门玻璃 — Figure 6708

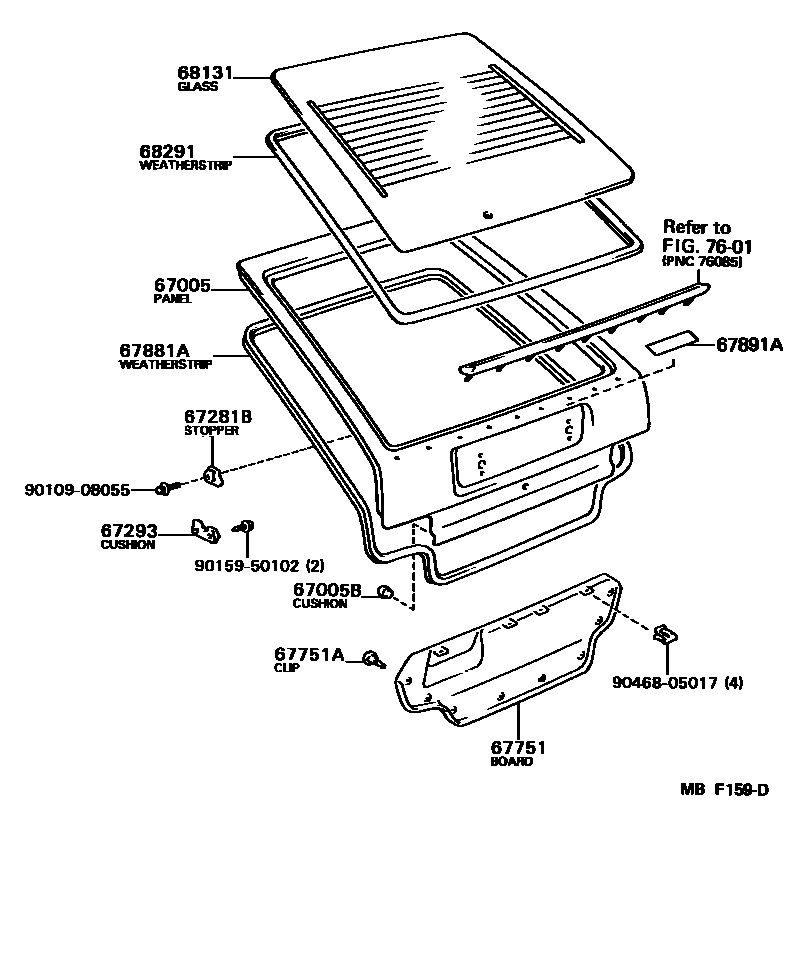

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67005 | Rear door panel sub-assembly | 67005-12420 · 67005-12430 · 67005-12440 · 67005-12441 · 67005-12450 · 67005-1A110 |
| 67005B | Cushion pad (for back door panel) | 90541-09041 |
| 67281B | Back door lower block | 67281-12020 |
| 67293 | Back door lower block cushion | 67293-20010 |
| 67881A | Back door seal | 67881-12090 |
| 67891A | Back door seal | 67891-12010 |
| 68131 | back door glass | 68105-12090 · 68105-12100 · 68105-12110 · 68105-12120 |
| 68291 | Rear door glass seal strip | 68291-12100 |
| 75129 | rear license plate cushion | 75129-22010 |
