Toyota COROLLA 后门车窗升降器和合页 — Figure 6707

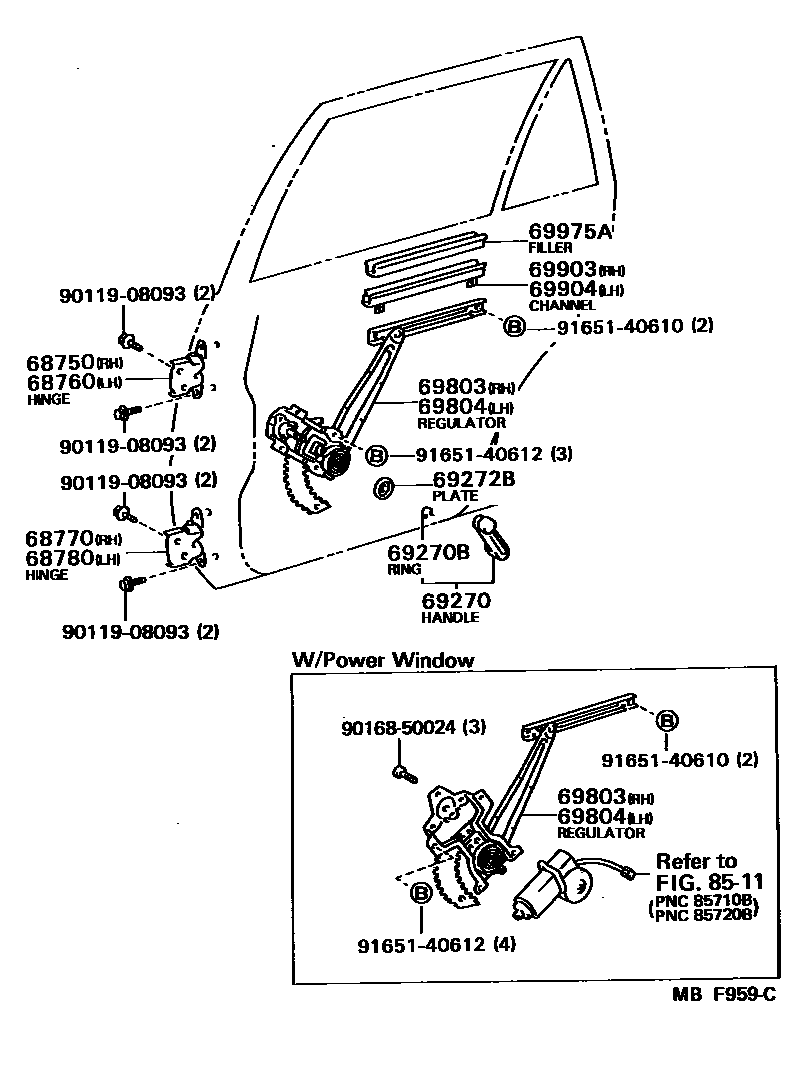

Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-32010 |
| 68760 | Left rear door upper hinge assembly | 68760-32010 |
| 68770 | Right rear door lower hinge assembly | 68770-12030 |
| 68780 | Left rear door lower hinge assembly | 68780-12020 |
| 69270B | Shaft snap ring (for rear door window regulator handle) | 90520-01002 |
| 69272B | Rear door window regulator inner handle plate | 69268-16010 |
| 69803 | Right rear door window lifter sub-assembly | 69803-12050 · 69830-12090 · 69830-12120 |
| 69804 | Left rear door window lifter sub-assembly | 69804-12050 · 69840-12090 · 69840-12120 |
| 69903 | Right rear door glass groove sub-assembly | 69905-12080 |
| 69904 | Left rear door glass groove sub-assembly | 69906-12070 |
| 69975A | Rear door glass channel filler | 69975-22020 |
