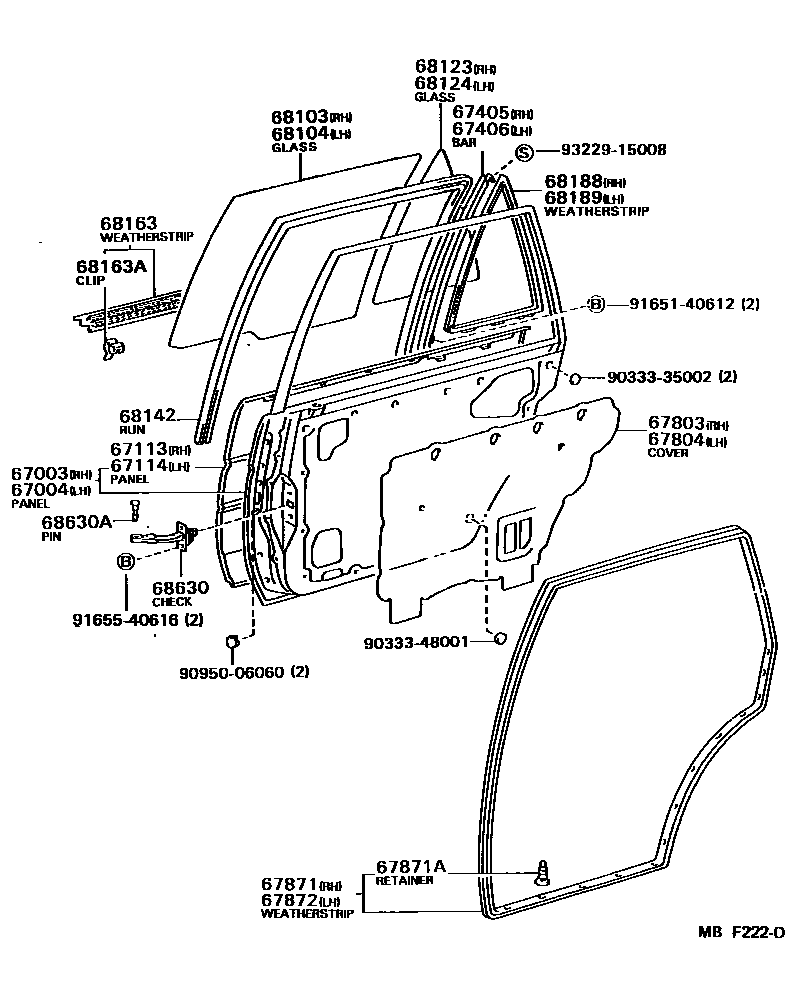

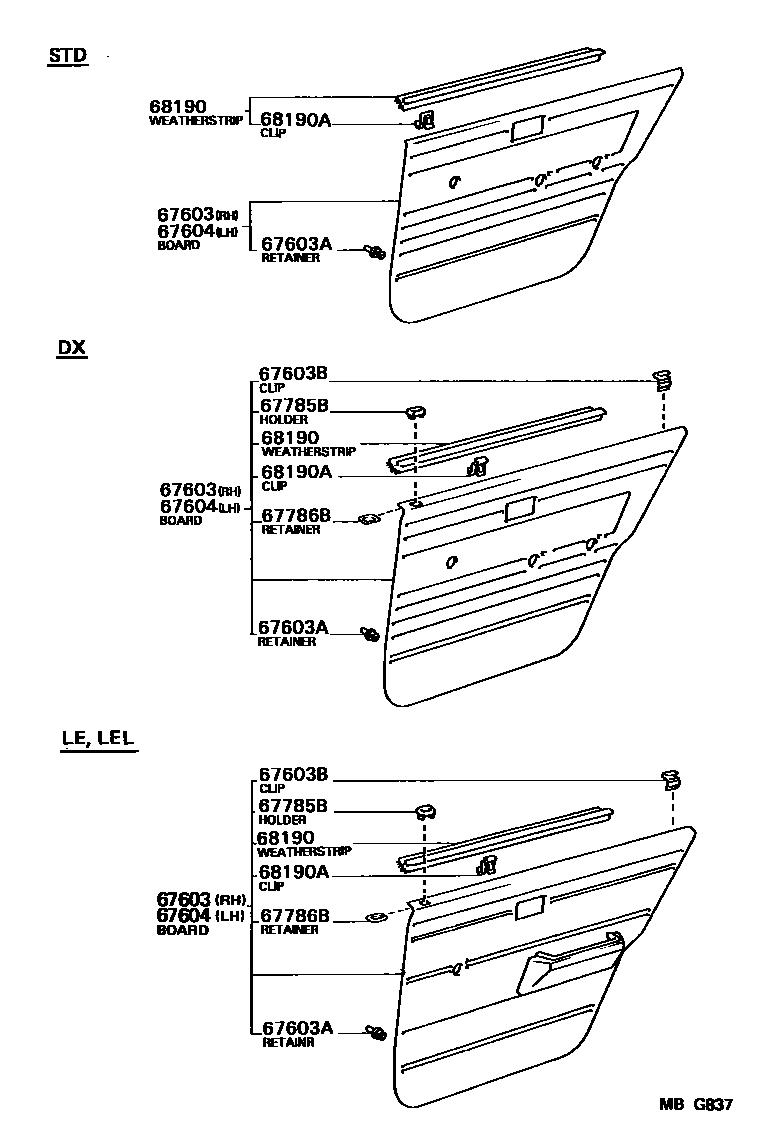

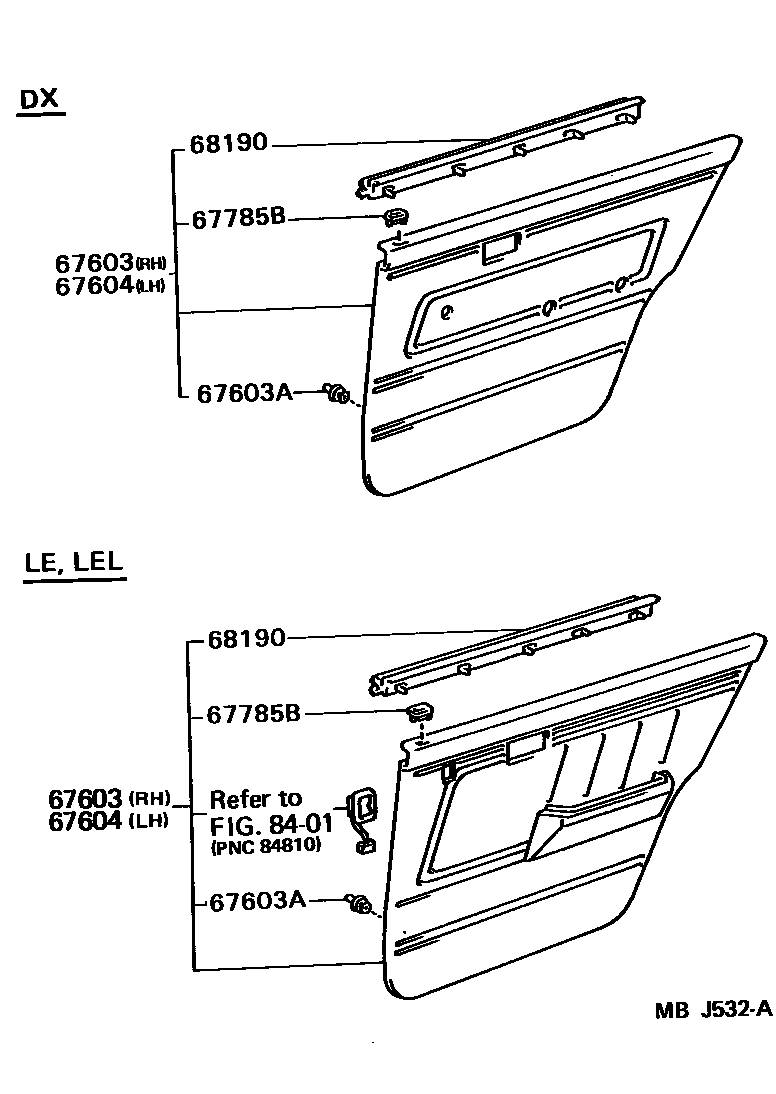

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12300 · 67003-12330 |
| 67004 | Left rear door panel sub-assembly | 67004-12300 · 67004-12330 |
| 67113 | Right rear door outer panel | 67113-12110 |
| 67114 | Left rear door outer panel | 67114-12110 |
| 67405 | Right rear door window divider sub-assembly | 67407-12100 · 67407-12110 |
| 67406 | Left rear door window divider sub-assembly | 67408-12100 · 67408-12110 |
| 67603A | Fixings (for rear door trim) | 67771-12010 |
| 67603B | Catch (for rear door trim panel) | 67774-10010 |
| 67785B | Door lock button collar fastener (for rear doors) | 69751-20040 |
| 67786B | Door lock button collar fastener (for rear doors) | 67786-10010 |
| 67803 | Right rear door access hole cover sub-assembly | 67841-12170 |
| 67804 | Left rear door access hole cover sub-assembly | 67842-12050 |
| 67871 | Right rear door sealing strip | 67871-12170 · 67871-12210 |
| 67871A | Fixings (for rear door sealing strip) | 67868-30040 |
| 67872 | Left rear door sealing strip | 67872-12170 · 67872-12210 |
| 68103 | Right rear door glass sub-assembly | 68113-12120 · 68113-12130 |
| 68104 | Left rear door glass sub-assembly | 68114-12120 · 68114-12130 |
| 68123 | Right rear door window glass | 68123-12170 · 68123-12180 · 68123-12240 |
| 68124 | Left rear door window glass | 68124-12170 · 68124-12180 · 68124-12240 |
| 68142 | Rear door glass lift chute | 68142-12050 |
| 68163 | Rear door glass outer seal strip | 68180-12050 · 68230-12030 |
| 68163A | Catch (for rear door glass outer sealing strip) | 68211-12080 |
| 68188 | Right rear door corner window seal | 68188-12090 · 68188-12100 · 68188-12130 · 68188-12140 |
| 68189 | Left rear door corner window seal | 68189-12090 · 68189-12100 · 68189-12130 · 68189-12140 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-12040 · 68173-12060 · 68174-12020 · 68190-12100 · 68240-12050 |
| 68190A | Catch (for rear door glass inner sealing strip assembly) | 67773-12010 · 68211-10030 |
| 68630 | Rear door opening limiter assembly | 68630-12020 |
| 68630A | Pin (for rear door opening limiter) | 68617-12010 · 68617-22010 · 68617-90A00 |
