Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 33 PNC and OE references.

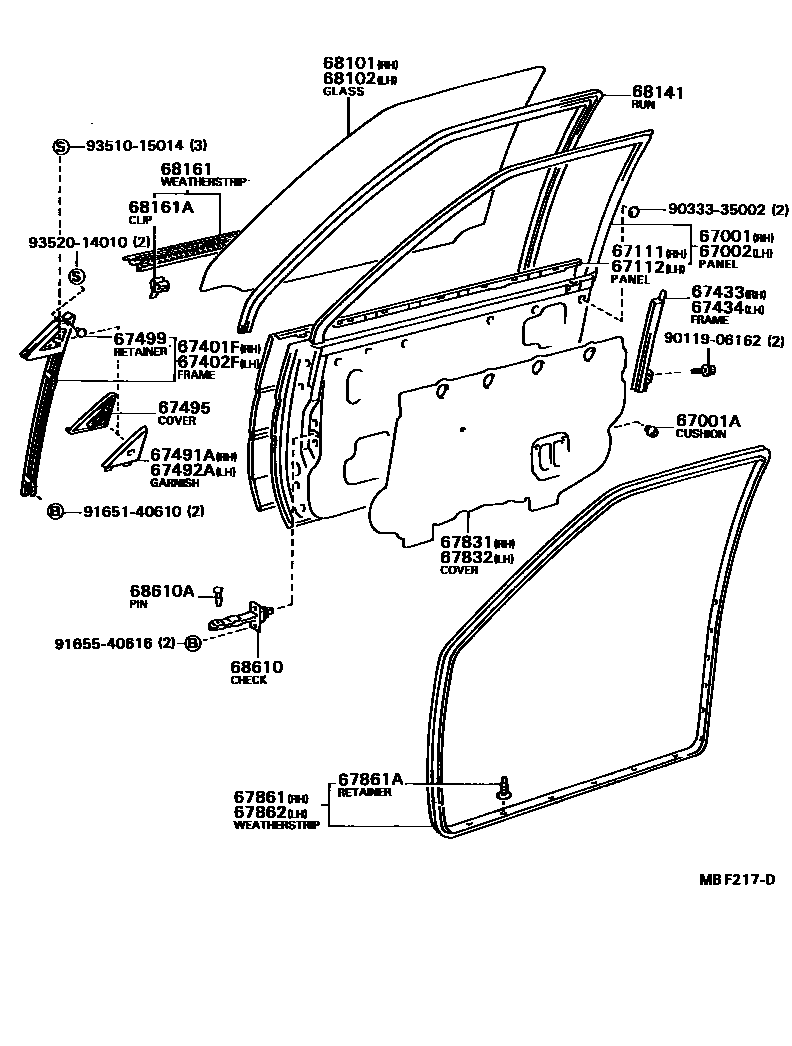

Toyota COROLLA 前门板和前门玻璃 EPC diagram — MBF217D
前门板和前门玻璃 — MBF217D (198308 – 999999)

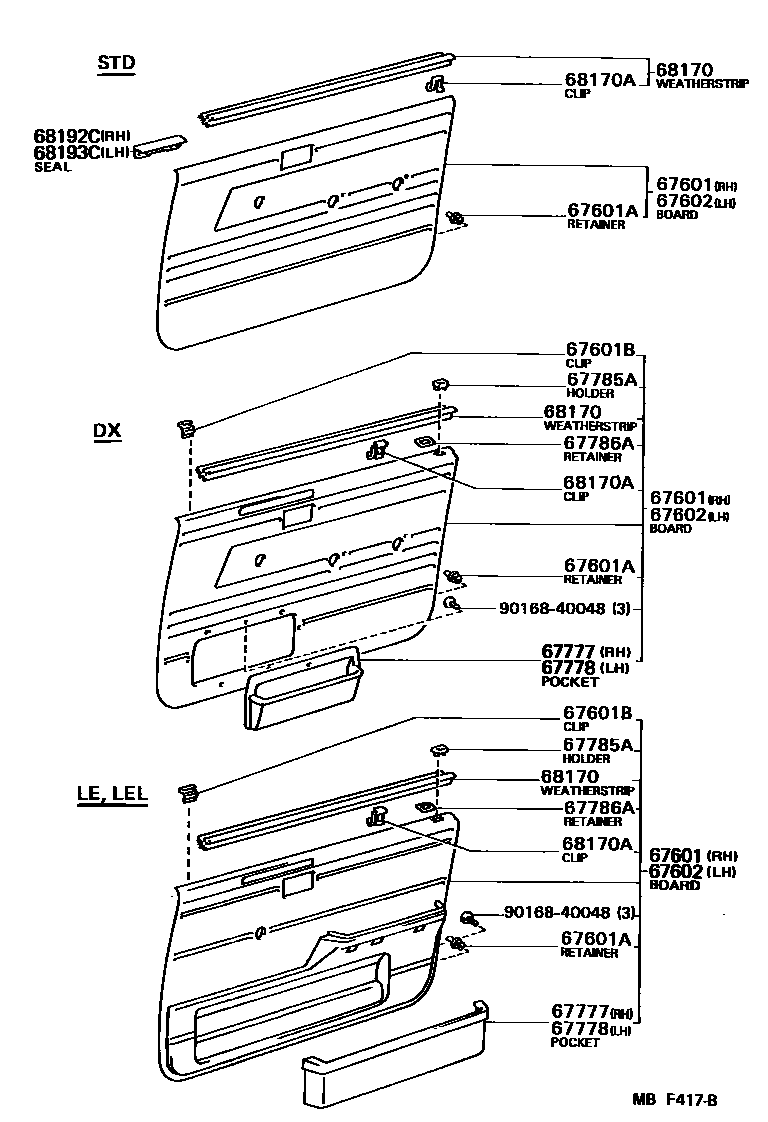

Toyota COROLLA 前门板和前门玻璃 EPC diagram — MBF417B
前门板和前门玻璃 — MBF417B (198308 – 198508)

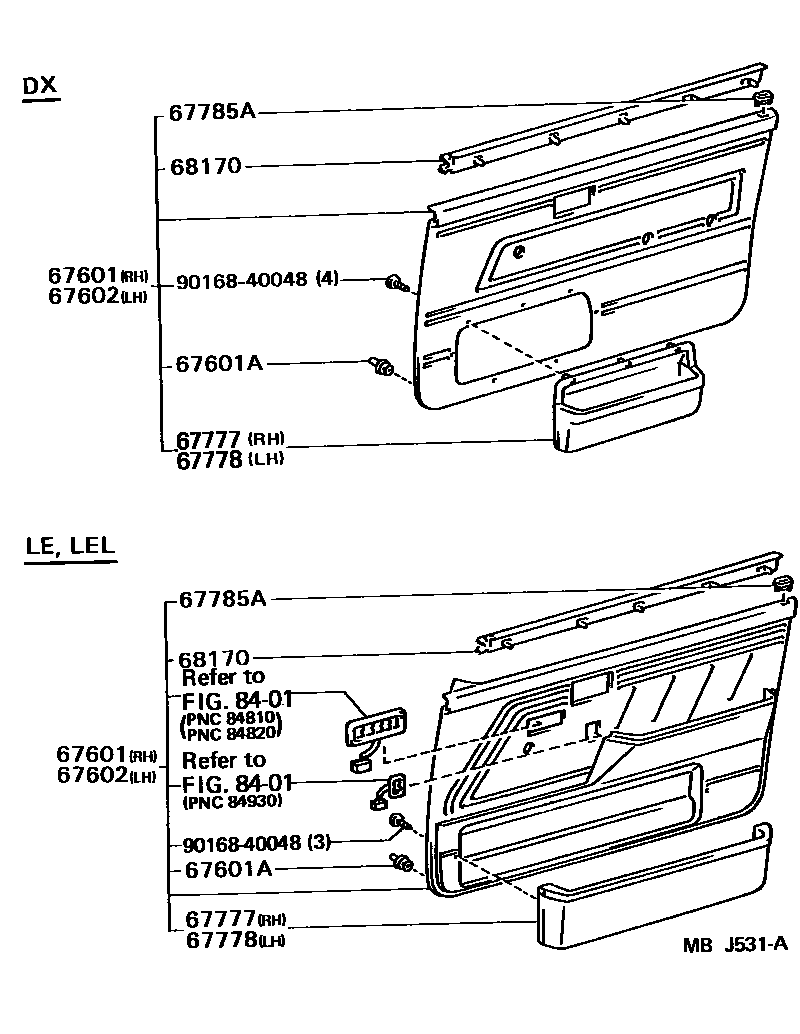

Toyota COROLLA 前门板和前门玻璃 EPC diagram — MBJ531A
前门板和前门玻璃 — MBJ531A (198508 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-12780 · 67001-12790 · 67001-12830 · 67001-12840
67001AFront door panel cushion90541-09006
67002Left front door panel sub-assembly67002-12760 · 67002-12770 · 67002-12810 · 67002-12820
67111Outer right front door panel67111-12390
67112Outer left front door panel67112-12380
67401FRight front door front lower door frame sub-assembly67401-12200 · 67401-12210 · 67401-12220 · 67401-12230
67402FLeft front door front lower door frame sub-assembly67402-12190 · 67402-12200
67433Right front door window rear lower frame67403-12050 · 67403-12080
67434Left front door window rear lower frame67404-12050 · 67404-12080
67491ARight front door lower door frame bracket decorative strip67491-12090 · 67491-12100 · 67491-12110 · 67491-12120
67492ALeft front door lower door frame bracket decorative strip67492-12090 · 67492-12100 · 67492-12110 · 67492-12120
67495Front door lower door frame upper cover67495-12050 · 67495-12060 · 67495-12070 · 67495-12080
67499Front door lower door frame bracket trim strip fixing67499-30010
67601AFixings (for front door trim)67771-12010
67601BCatch (for front door trim panel)67774-10010
67785ADoor lock button collar fastener (for front doors)69751-20040
67786ADoor lock button collar fastener (for front doors)67786-10010
67831Right front door access hole cover67831-12280 · 67831-12330
67832Left front door access hole cover67832-12150
67861Right front door seal67861-12490 · 67861-12530
67861AFixing piece (for front door sealing strip)67868-30040
67862Left front door seal67862-12470 · 67862-12510
68101Right front door glass sub-assembly68111-12500 · 68111-12510 · 68111-12570
68102Left front door glass sub-assembly68112-12500 · 68112-12510 · 68112-12570
68141Front door glass lift chute68141-12190 · 68141-12210
68161Front door glass outer seal strip68160-12140 · 68210-12100
68161ACatch (for front door glass outer sealing strip)68211-12080
68170Front door glass inner sealing strip assembly68170-12250 · 68171-12080 · 68171-12110 · 68172-12040 · 68220-12180
68170ACatch (for front door glass inner sealing strip assembly)67773-12010 · 68211-10030
68192CRight front door beltline front seal68192-12020
68193CLeft front door beltline front seal68192-12020
68610Front door opening limiter assembly68610-12030
68610APin (for front door opening limiter)68617-12010 · 68617-22010 · 68617-90A00
