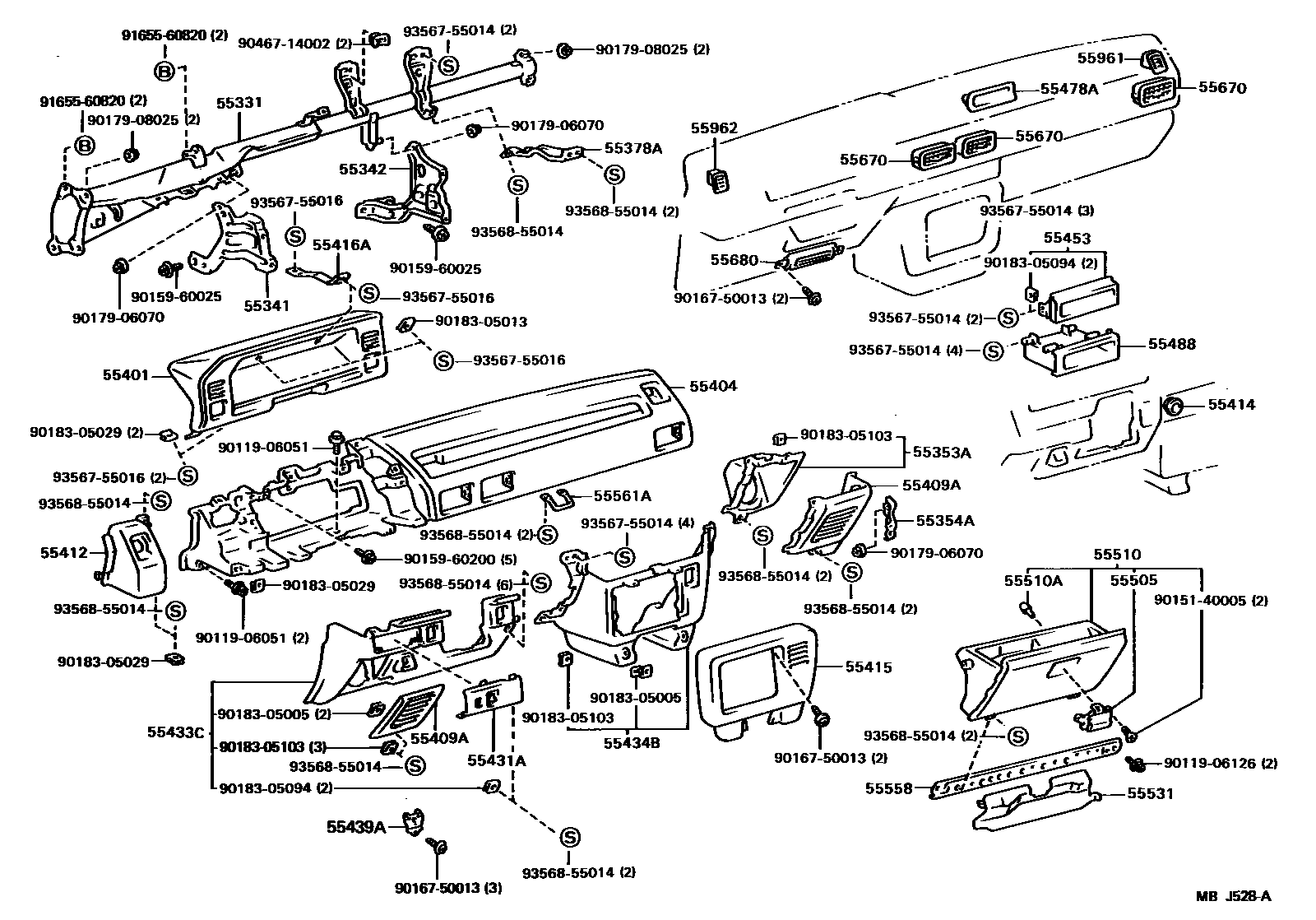

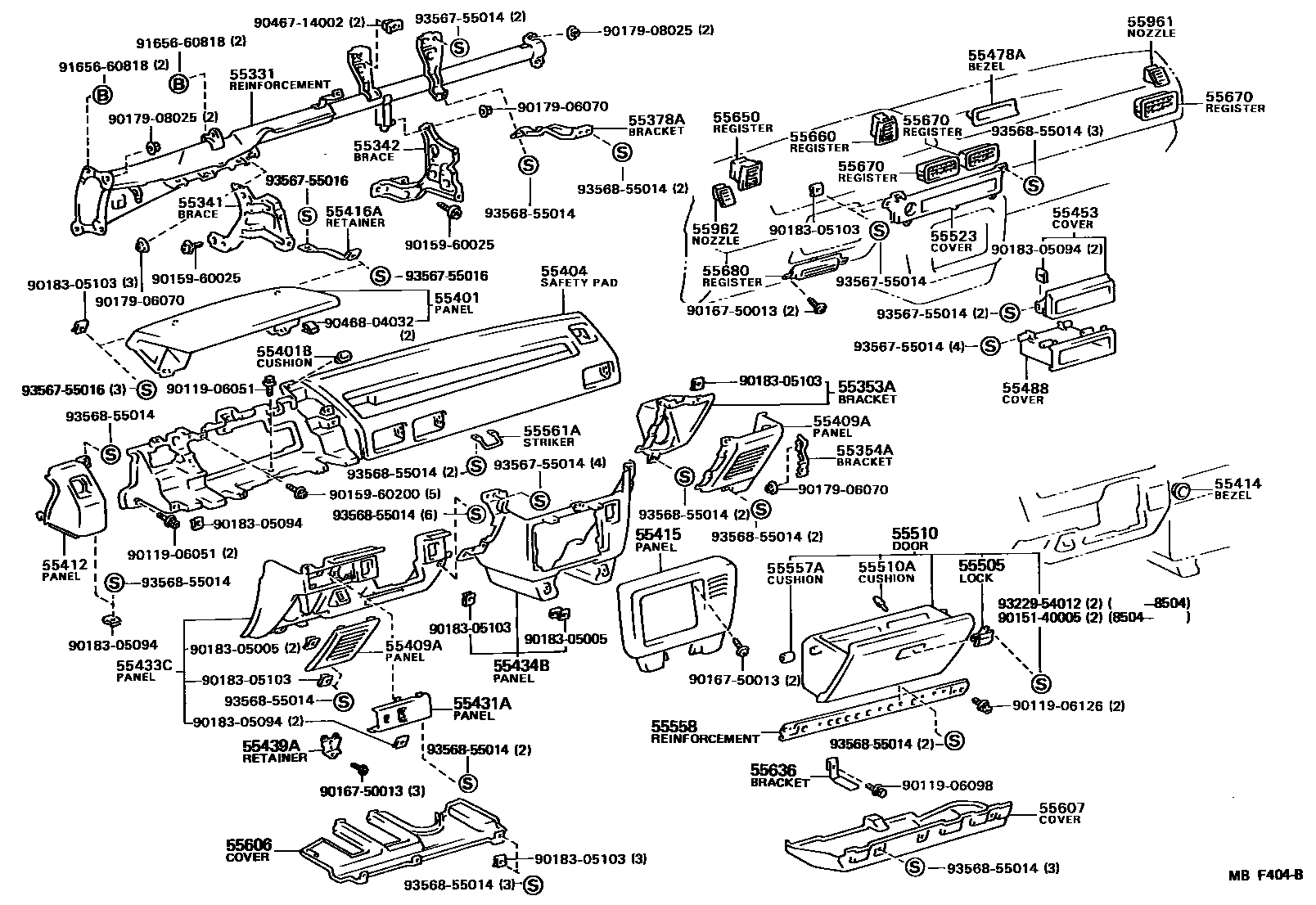

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55331 | Dashboard reinforcement | 55330-12070 · 55330-12090 · 55330-12091 · 55330-12092 |
| 55341 | Instrument panel bracket No. 1 | 55351-12020 |
| 55342 | Instrument panel bracket No. 2 | 55307-12080 |
| 55353A | Speaker 1 mounting bracket | 55353-12030 |
| 55354A | Speaker 2 mounting bracket | 55354-12030 |
| 55378A | Glovebox lid lock mounting bracket | 55378-12080 |
| 55401B | Instrument cluster decorative panel cushion | 55419-16010 |
| 55414 | Cigarette lighter hole frame | 55477-12060 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-12010 |
| 55439A | Instrument panel No. 3 decorative panel fixings | 55439-12020 |
| 55453 | Radio tuner opening cover | 55522-32010 |
| 55488 | stereo system hole cover | 55521-16010 |
| 55510A | Cushion (for glovebox lid) | 90541-03015 |
| 55523 | Heater control opening cover | 55523-12070 |
| 55531 | glove box panel | 55531-12110 |
| 55557A | Glove box cover limit pad | 55557-16010 |
| 55558 | Glove box cover reinforcement | 55558-12030 |
| 55561A | Glove box lid lock | 55561-12040 |
| 55636 | Instrument panel bottom cover bracket No. 1 | 55636-12020 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-12110 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-12190 |
| 55680 | Instrument panel No. 1 down-regulator assembly | 55680-32010 |
