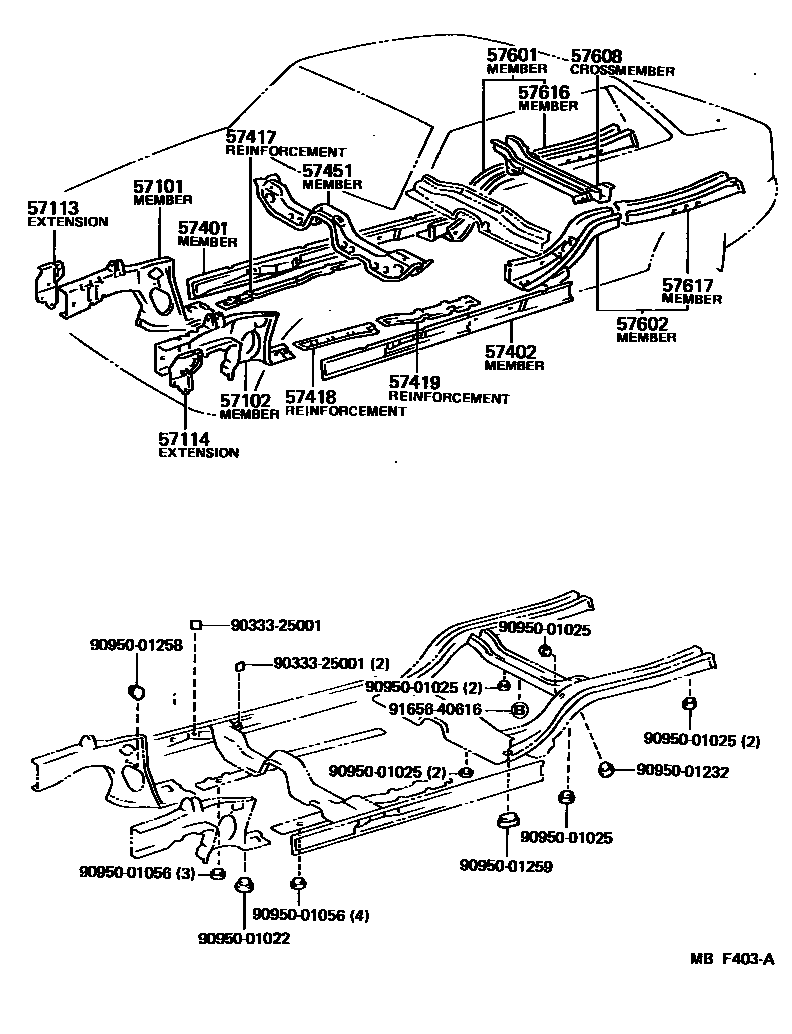

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57101 | Right front longitudinal beam sub-assembly | 57101-12240 · 57101-12250 · 57101-12251 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-12240 · 57102-12250 |
| 57113 | Right front longitudinal beam extension | 57105-12030 |
| 57114 | Left front longitudinal beam extension | 57106-12030 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-12190 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-12190 |
| 57417 | Front floor lower right reinforcement | 57417-12070 |
| 57418 | Front floor lower left reinforcement | 57418-20040 |
| 57419 | Front floor No. 2 lower left reinforcement | 57419-12020 |
| 57451 | front floor cross member | 57408-12040 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12360 · 57601-12390 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12330 |
| 57608 | Rear floor No. 2 cross member sub-assembly | 57606-12050 · 57606-12090 |
| 57616 | Rear floor right rear longitudinal member | 57615-12900 |
| 57617 | Rear floor left rear longitudinal member | 57616-12900 |
