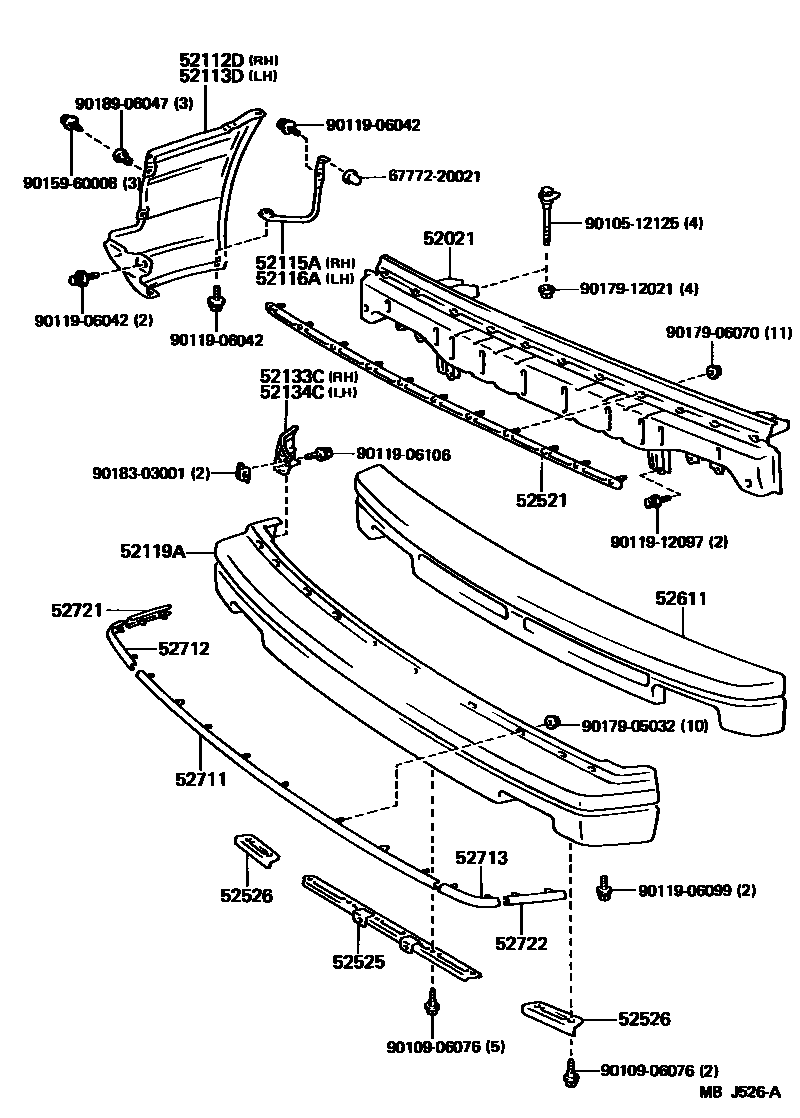

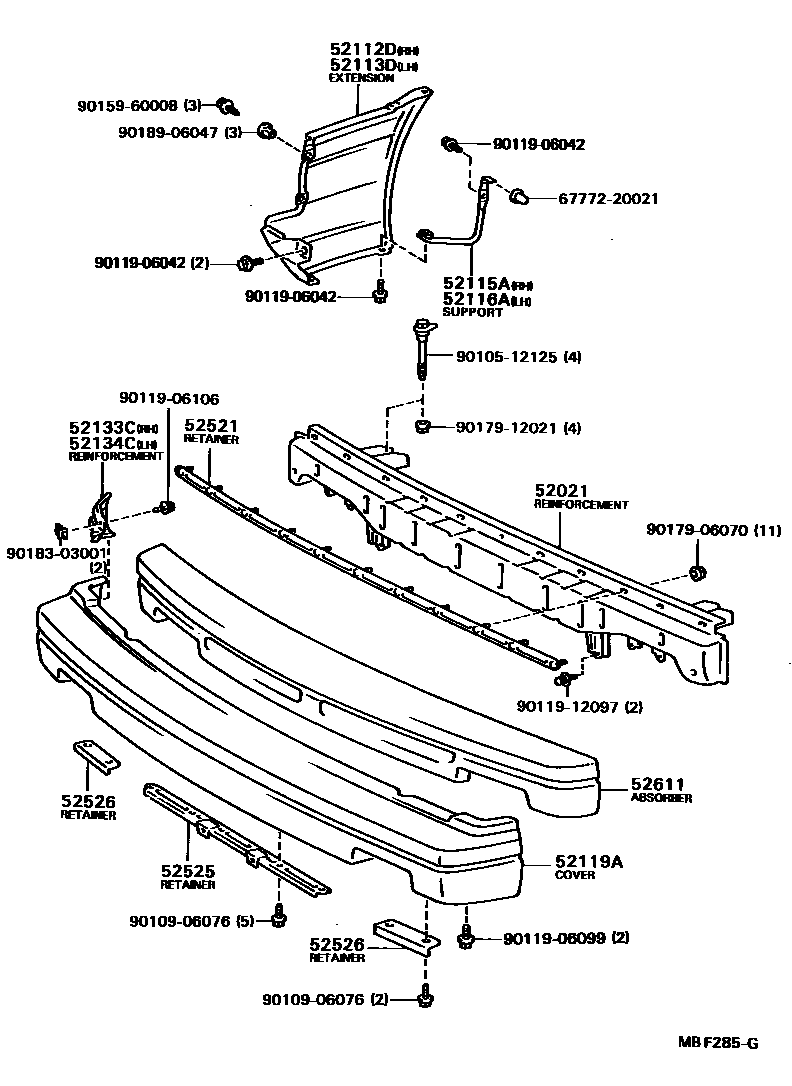

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-12110 · 52021-12140 |
| 52112D | Front bumper right extension | 52112-12110 · 52112-12170 · 52112-12180 |
| 52113D | Front bumper left extension | 52113-12110 · 52113-12170 · 52113-12180 |
| 52115A | Front bumper right side bracket | 52115-12180 · 52115-12230 |
| 52116A | Front bumper left bracket | 52116-12150 · 52116-12180 |
| 52119A | front bumper cover | 52119-12240 · 52119-12750 · 52119-12760 · 52119-12901 · 52119-12904 |
| 52133C | Front bumper right reinforcement | 52133-12070 |
| 52134C | Front bumper left reinforcement | 52134-12030 |
| 52521 | Front bumper upper center fixing bracket | 52521-12050 |
| 52525 | Front bumper lower center fixing bracket | 52506-12020 · 52506-12021 · 52506-12040 |
| 52526 | Front bumper lower side fixing bracket | 52526-12010 |
| 52611 | front bumper energy absorber | 52611-12100 |
| 52711 | Front bumper protection strip | 52711-12060 |
| 52712 | Front bumper right side protective strip | 52712-12010 |
| 52713 | Front bumper protection strip screw plug | 52713-12010 |
| 52721 | Front bumper right extension protection strip | 52721-12010 |
| 52722 | Front bumper left extended section protective strip | 52722-12010 |
