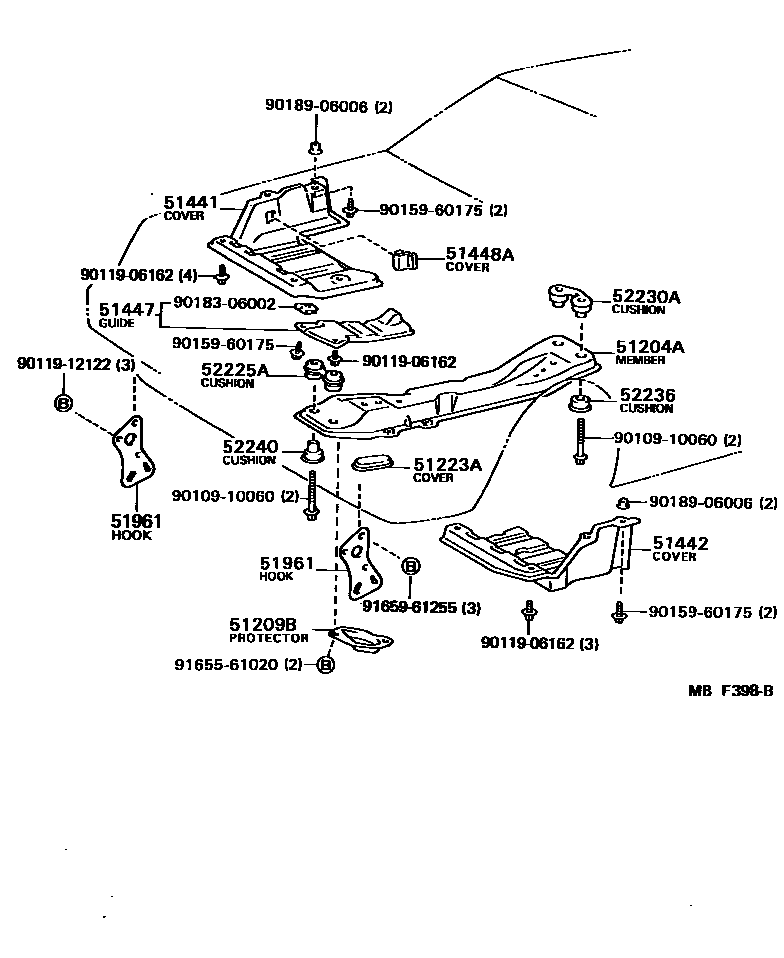

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51204A | Engine center mount beam sub-assembly | 51204-12030 · 51204-12031 |
| 51209B | Center beam front protective cover sub-assembly | 51209-20010 |
| 51223A | Engine mounting hole cover | 51223-20020 |
| 51441 | No. 1 engine bottom cover | 51441-12130 · 51441-12131 · 51441-20080 |
| 51442 | No. 2 engine bottom cover | 51442-20010 · 51442-20020 |
| 51447 | Engine underhood deflector | 51447-12070 |
| 51448A | Engine right bottom cover | 51448-20010 |
| 51961 | No. 1 hook | 51963-12080 |
| 52225A | Fixed buffer pad on front center beam | 52225-20010 |
| 52230A | Fixed buffer pad assembly on rear center beam | 52230-20010 |
| 52236 | Fixed cushion pad under rear center beam | 52236-20010 |
| 52240 | Fixed buffer pad assembly under front center beam | 52240-20010 |
