Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

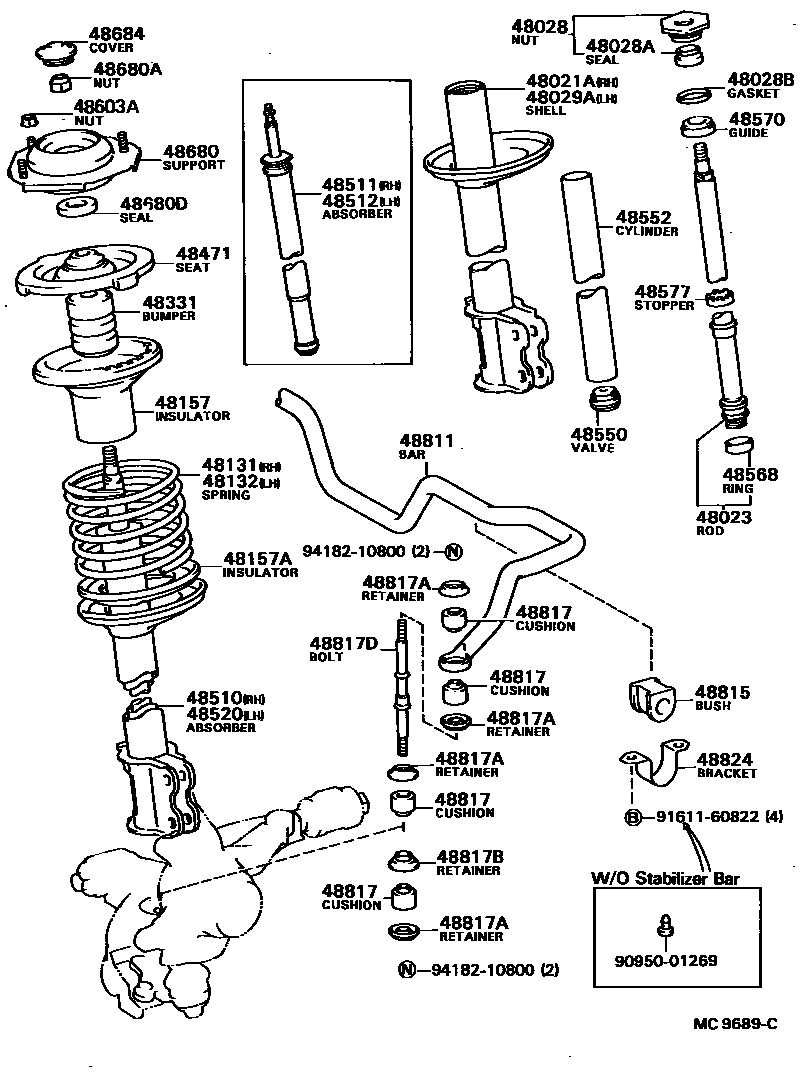

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48021A | Right front shock absorber housing sub-assembly | 48021-12181 · 48021-20121 |
| 48023 | Front shock absorber piston rod sub-assembly | 48023-12260 · 48023-12300 · 48023-20110 |
| 48028 | Shock absorber ring nut sub-assembly | 48028-10020 · 48028-14011 |
| 48028A | Oil seal (for shock absorber ring nut) | 90316-20006 · 90316-22001 |
| 48028B | Gasket (for shock absorber ring nut) | 90430-36002 · 90430-37003 · 90430-43206 |
| 48029A | Left front shock absorber housing sub-assembly | 48029-12061 · 48029-20121 |
| 48131 | Right front coil spring | 48131-1A640 · 48131-1A760 · 48131-1E150 · 48131-1E170 · 48131-1E190 · 48131-1E210 · 48131-1E220 · 48131-1E240 · 48131-1E260 · 48131-1E300 · 48131-1E310 · 48131-1E340 · 48131-1E350 · 48131-1E510 · 48131-1E520 · 48131-1E590 |
| 48132 | Left front coil spring | 48131-1A640 · 48131-1A760 · 48131-1E150 · 48131-1E170 · 48131-1E190 · 48131-1E210 · 48131-1E220 · 48131-1E240 · 48131-1E260 · 48131-1E300 · 48131-1E310 · 48131-1E340 · 48131-1E350 · 48131-1E510 · 48131-1E520 · 48131-1E590 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-12050 · 48157-20030 · 48157-20050 |
| 48157A | Front coil spring lower vibration isolation pad | 48158-12010 · 48158-12020 |
| 48331 | No. 1 front spring buffer block | 48331-12100 · 48331-20040 |
| 48471 | Front spring seat | 48044-12080 · 48044-32010 |
| 48510 | Right front shock absorber assembly | 48510-12300 · 48510-12340 · 48510-12410 · 48510-12440 · 48510-20162 |
| 48511 | Right front shock absorber (for adhesive cartridge type) | 48511-12280 |
| 48512 | Left front shock absorber (for adhesive cartridge type) | 48511-12280 |
| 48520 | Left front shock absorber assembly | 48520-12170 · 48520-12210 · 48520-12280 · 48520-12310 · 48520-20162 |
| 48550 | Shock absorber bottom valve assembly | 48550-10080 · 48550-12220 · 48550-12230 |
| 48552 | front shock absorber cylinder | 48552-12050 · 48552-20050 |
| 48568 | Shock absorber piston ring | 48568-12021 · 48568-22021 |
| 48570 | Damper rod guide assembly | 48022-10020 · 48022-14010 |
| 48577 | Shock absorber rebound limiter | 48577-16010 · 48579-14011 |
| 48603A | Nut (for front suspension mount) | 90179-08054 · 90179-08090 |
| 48680 | Front suspension support assembly | 48609-20050 · 48609-20060 |
| 48680A | Nut (for front mount to front shock absorber) | 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-32010 |
| 48811 | front stabilizer bar | 48811-12440 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-14160 |
| 48817 | Front stabilizer bar cushion | 48817-30020 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02032 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02015 |
| 48817D | Bolt (for front stabilizer bar) | 48819-20030 |
| 48824 | front stabilizer bar bracket | 48824-20040 |
