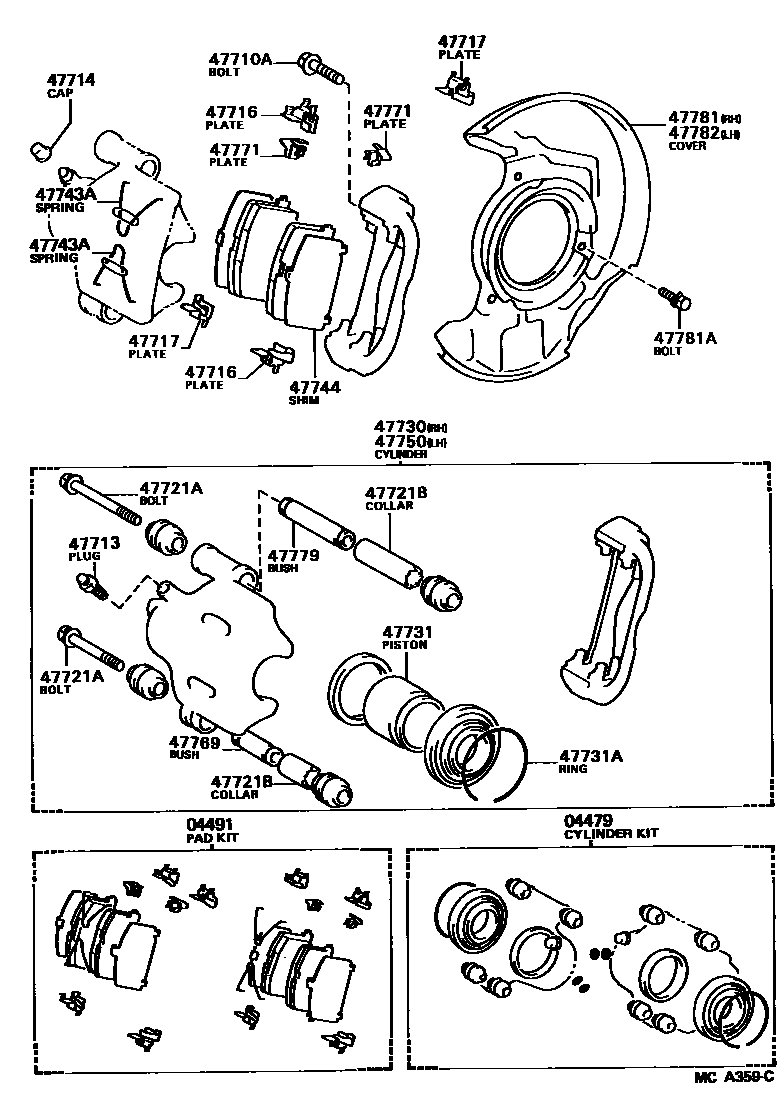

Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

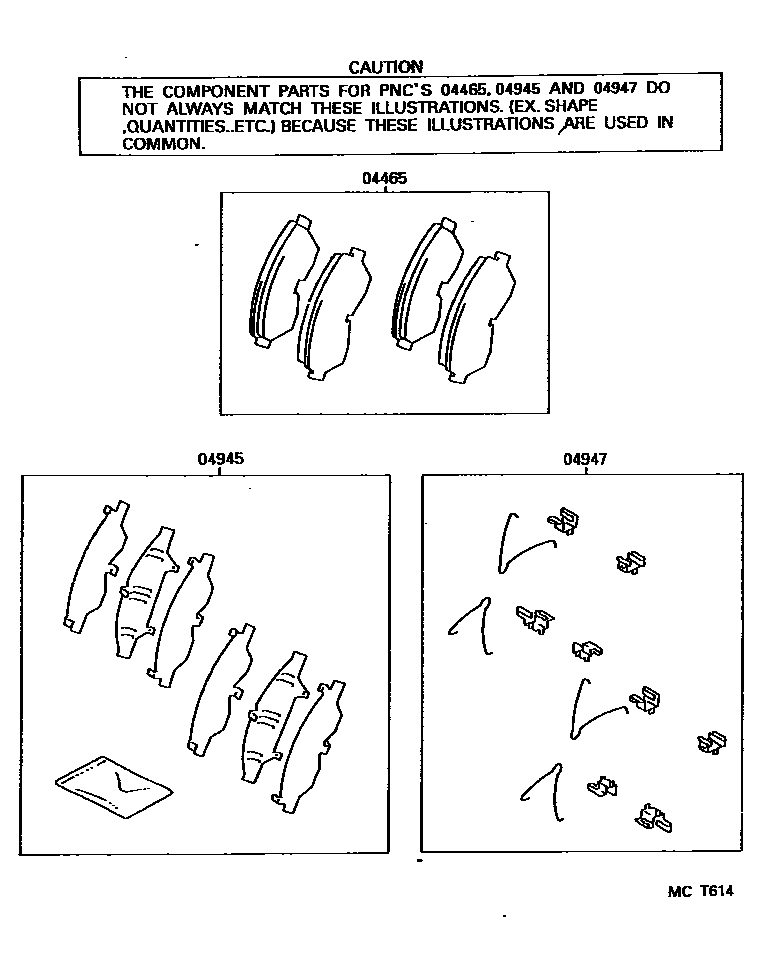

| 04465 | Front disc brake pad assembly | 04465-12010 · 04465-32021 |
| 04479 | Front disc brake cylinder assembly | 04479-12090 · 04479-12091 |
| 04491 | Front disc brake pad assembly | 04491-12240 · 04491-12241 · 04491-32050 |
| 04945 | Front silencer gasket assembly | 04945-32220 |
| 04947 | Front disc brake mounting kit | 04947-32010 · 04947-32040 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90119-12040 |
| 47713 | Bleed plug (for front disc brake) | 47547-20010 |
| 47714 | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-32010 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-32010 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90119-09003 · 90119-09004 |
| 47721B | Collar (for front disc brake cylinder retainer) | 90387-15004 · 90387-15005 |
| 47730 | Right front disc brake cylinder assembly | 47730-12210 |
| 47731 | Front disc brake piston | 47731-12090 · 47731-12150 |
| 47731A | retaining ring (for front disc brake piston) | 90522-61001 |
| 47743A | Silencer spring (for front disc brake) | 47743-12040 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-32010 |
| 47750 | Left disc brake cylinder assembly | 47750-12210 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-12030 · 47769-16010 |
| 47771 | No. 1 pad wear indicator plate | 47771-32010 |
| 47779 | No. 2 brake cylinder sliding sleeve (for front disc brake) | 47779-16010 |
| 47781 | Right front disc brake dust cover | 47781-20140 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 |
| 47782 | Left front disc brake dust cover | 47782-20140 |
