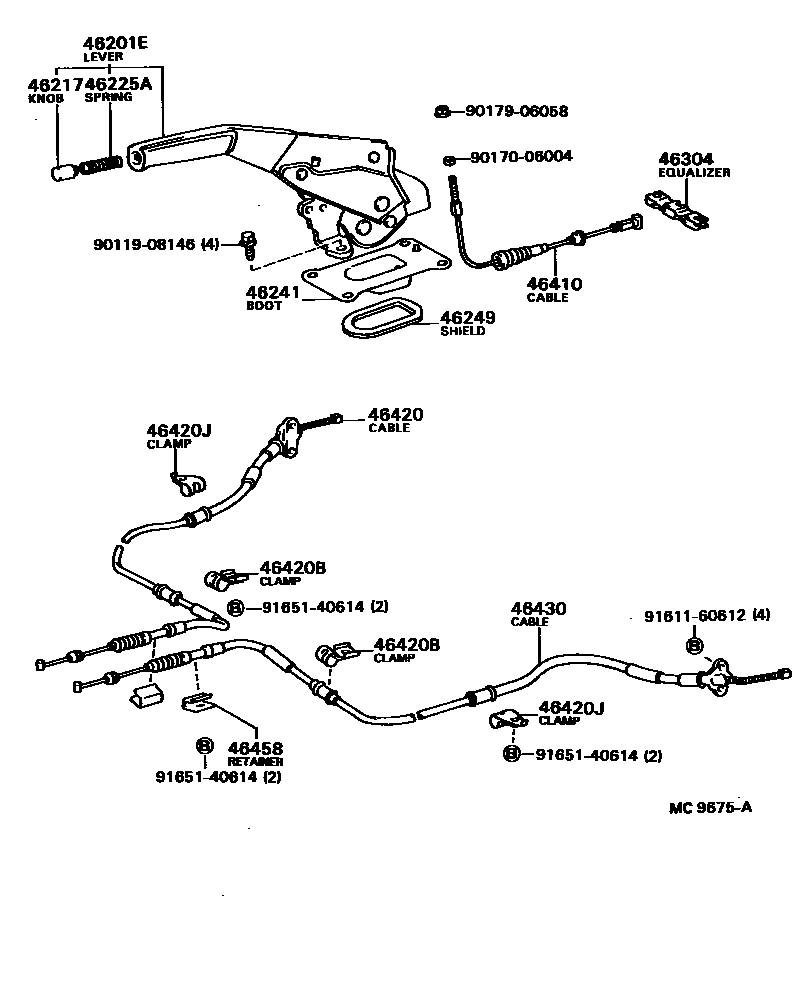

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46225A | Compression spring (for parking brake pawl lever) | 90501-10069 |
| 46241 | Parking brake lever dust cover | 46241-32010 |
| 46249 | Parking brake hole cover | 46249-32010 |
| 46304 | Parking brake balancer sub-assembly | 46341-12010 |
| 46410 | Parking brake cable assembly No. 1 | 46410-20210 |
| 46420 | Parking brake No. 2 cable assembly | 46420-12310 |
| 46420B | Clamp No. 2 (for parking brake cable) | 90949-01112 |
| 46420J | Clamp No. 3 (for parking brake cable) | 90949-01015 |
| 46430 | Parking brake No. 3 cable assembly | 46430-12210 |
| 46458 | Cable fixings | 46458-20020 |
