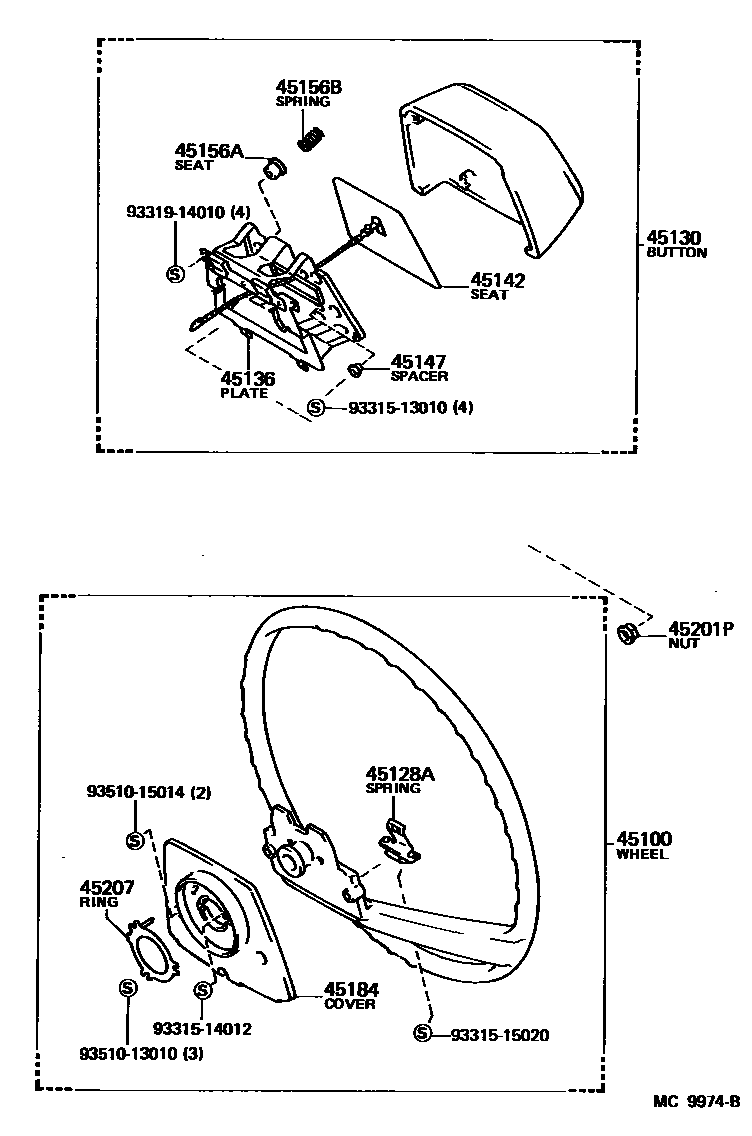

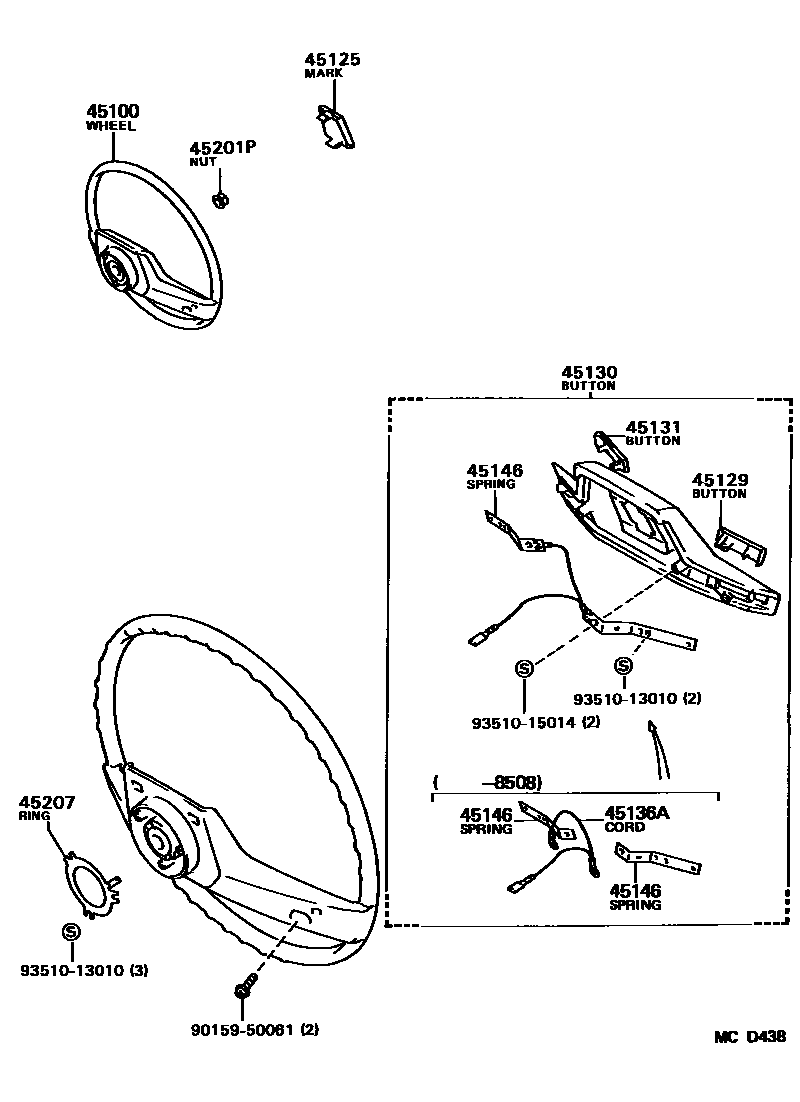

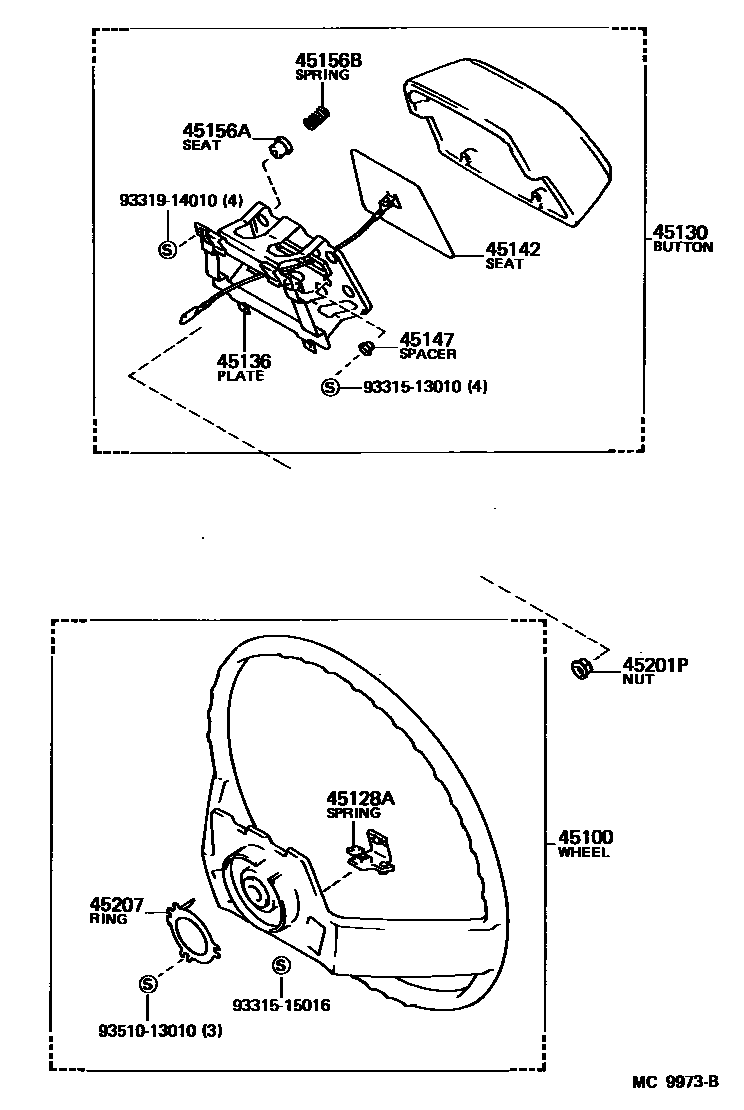

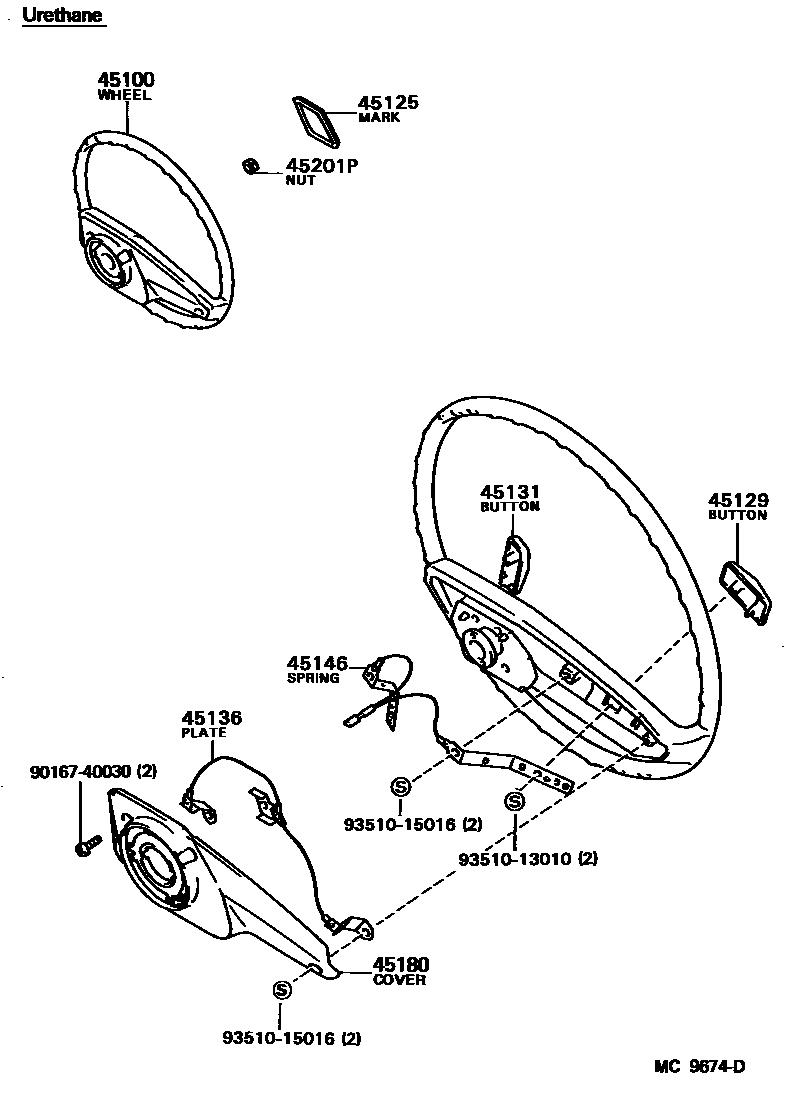

Toyota COROLLA Steering Wheel — Figure 4504
Toyota COROLLA EPC diagram 4504, Steering Wheel, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45125 | Steering wheel trim cover markings | 45125-12360 · 45125-12470 |
| 45128A | Steering wheel trim cover retaining spring | 45128-12010 · 45128-12020 |
| 45136 | horn button contact piece | 45136-12110 · 45136-12130 · 45136-12140 · 45136-16050 |
| 45136A | Wire (for speaker contact ring) | 90945-02058 |
| 45142 | No. 1 horn button contact seat | 45142-16010 |
| 45146 | Horn button contact spring | 45146-12090 · 45146-12100 · 45146-12110 |
| 45147 | Speaker button spacer | 90561-02001 |
| 45156A | Speaker contact spring holder | 45156-16010 |
| 45156B | Spring (for horn contact spring holder) | 90501-06032 |
| 45201P | Steering wheel fixing nut | 90179-12086 |
| 45207 | Speaker contact ring | 45176-20030 · 45176-22050 |
