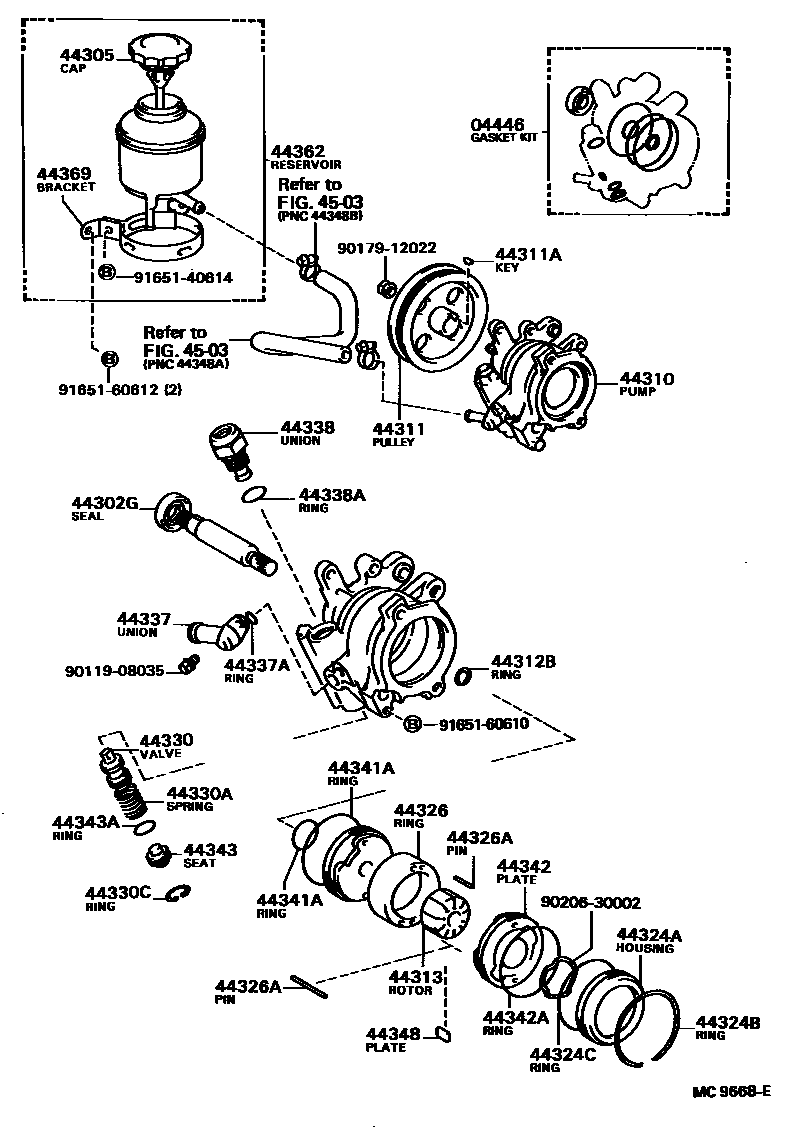

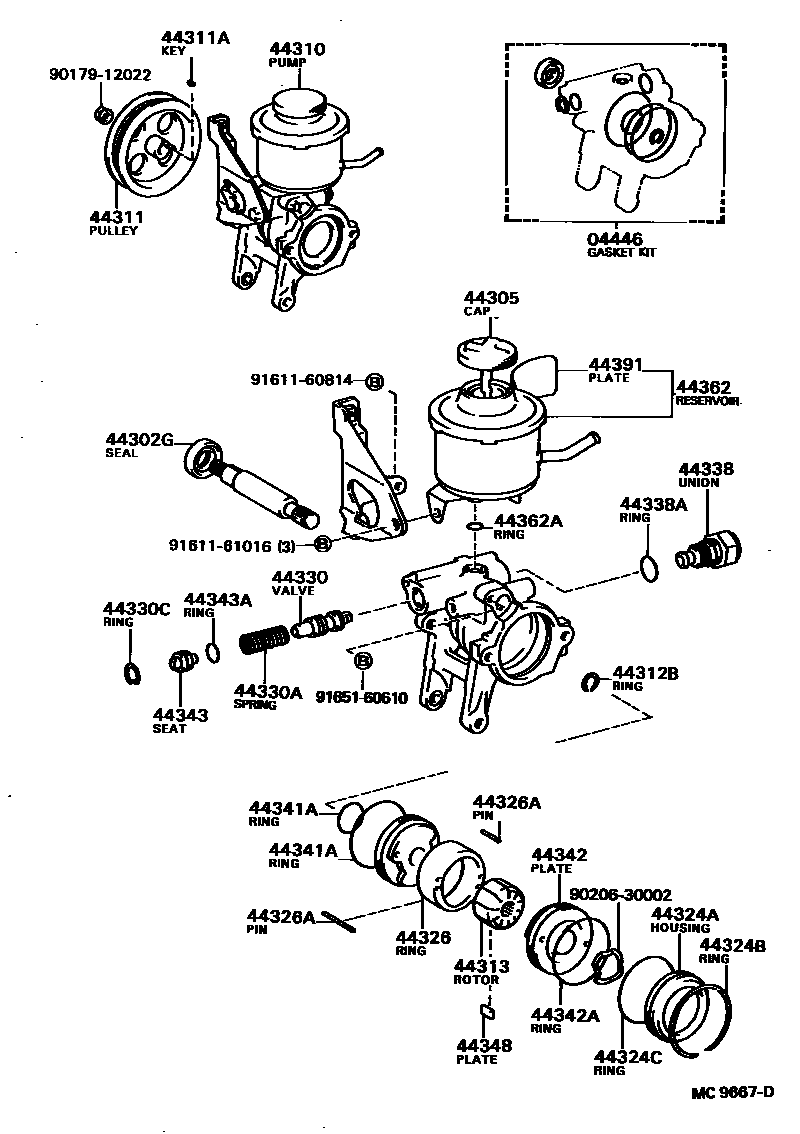

Toyota COROLLA 叶片泵和储油罐(动力转向) — Figure 4502
Toyota COROLLA EPC diagram 4502, 叶片泵和储油罐(动力转向), with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-12020 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-18007 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-30020 · 44305-32010 |
| 44310 | Vane pump assembly | 44320-12050 · 44320-12051 · 44320-12060 · 44320-12061 |
| 44311 | vane pump pulley | 44311-12030 · 44311-12040 |
| 44311A | Vane pump pulley key | 90280-05008 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 |
| 44313 | vane pump rotor | 44313-12010 · 44313-12020 · 44313-12030 · 44313-12040 · 44313-12050 |
| 44324A | Pump back shell | 44324-12030 · 44324-12031 |
| 44324B | Hole snap ring (for pump rear housing) | 90521-62002 |
| 44324C | O-ring (for pump rear housing) | 90301-52001 |
| 44326 | Cam ring (for vane pumps) | 44325-12110 · 44325-12120 · 44325-12130 · 44325-12140 · 44325-12150 |
| 44326A | Direct sales (for vane pump cam rings) | 90250-04047 · 90250-04049 |
| 44330 | Flow control valve assembly | 44330-12130 · 44330-12140 · 44330-12150 · 44330-12160 · 44330-12170 · 44330-12180 · 44330-14010 · 44330-14020 · 44330-14030 · 44330-14040 · 44330-14050 · 44330-14060 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 · 90501-12447 |
| 44330C | Snap ring (for flow control valve) | 96151-01700 |
| 44337 | Power steering suction port connector | 44337-12010 |
| 44337A | O-ring (for power steering oil suction port) | 90301-12003 |
| 44338 | Pressure port connector | 44308-12020 · 44308-12022 · 44308-12040 · 44308-12041 · 44308-12042 |
| 44338A | O-ring (for pressure port connector) | 90301-19003 |
| 44341A | O-ring (for vane pump front cover) | 90301-25001 · 90301-52001 |
| 44342 | Vane pump rear end cover | 44342-12020 · 44342-12021 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-52001 |
| 44343 | Flow control spring seat | 44343-12010 |
| 44343A | O-ring (for flow control spring seat) | 96711-19014 |
| 44348 | vane pump disc | 44345-12010 · 44345-12020 · 44345-12030 · 44345-12040 · 44345-12050 |
| 44362 | Oil storage tank (for vane pump) | 44306-12030 · 44360-12020 |
| 44362A | O-ring (for vane pump oil storage tank) | 90301-12003 |
| 44369 | No. 1 oil storage tank bracket | 44369-20030 |
| 44391 | Power steering oil tank warning nameplate | 44391-12020 |
