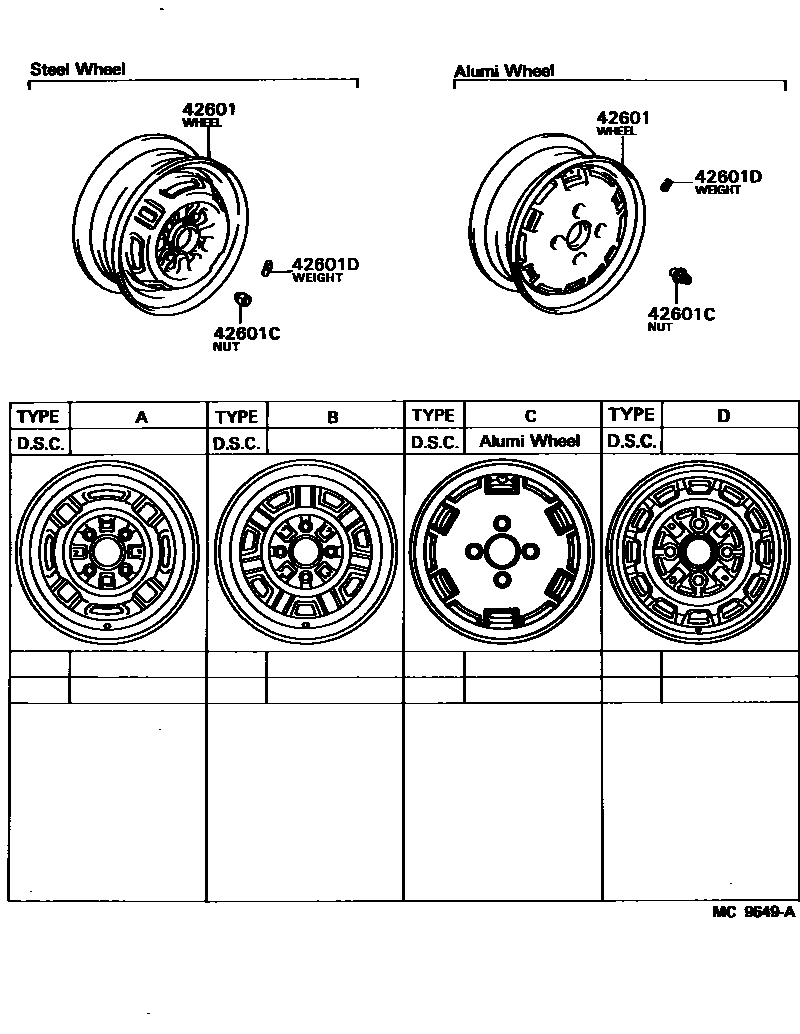

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-12590 · 42611-12760 · 42611-12800 · 42611-16130 · 42611-16220 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01027 · 90942-01033 |
| 42601D | Balance weight (for spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03098 · 90942-03099 · 90942-03100 · 90942-03101 · 90942-03102 · 90942-03108 · 90942-03109 · 90942-03119 · 90942-03120 · 90942-03121 · 90942-03122 · 90942-03123 · 90942-03124 · 90942-03125 · 90942-03126 · 90942-03127 · 90942-03128 · 90942-03129 · 90942-03130 · 90942-03131 · 90942-03132 · 90942-03133 · 90942-03161 · 90942-03163 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-12140 · 42603-12150 · 42603-12170 · 42603-12190 · 42603-12280 · 42603-12310 · 42603-12320 · 42603-12350 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
