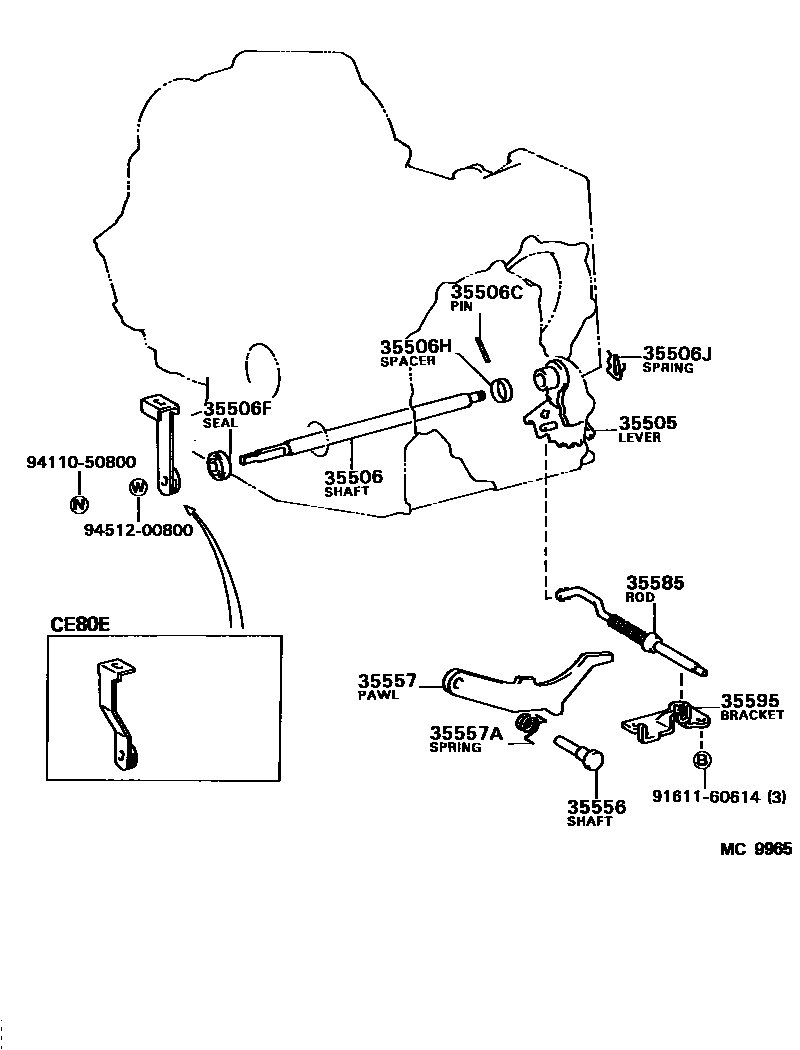

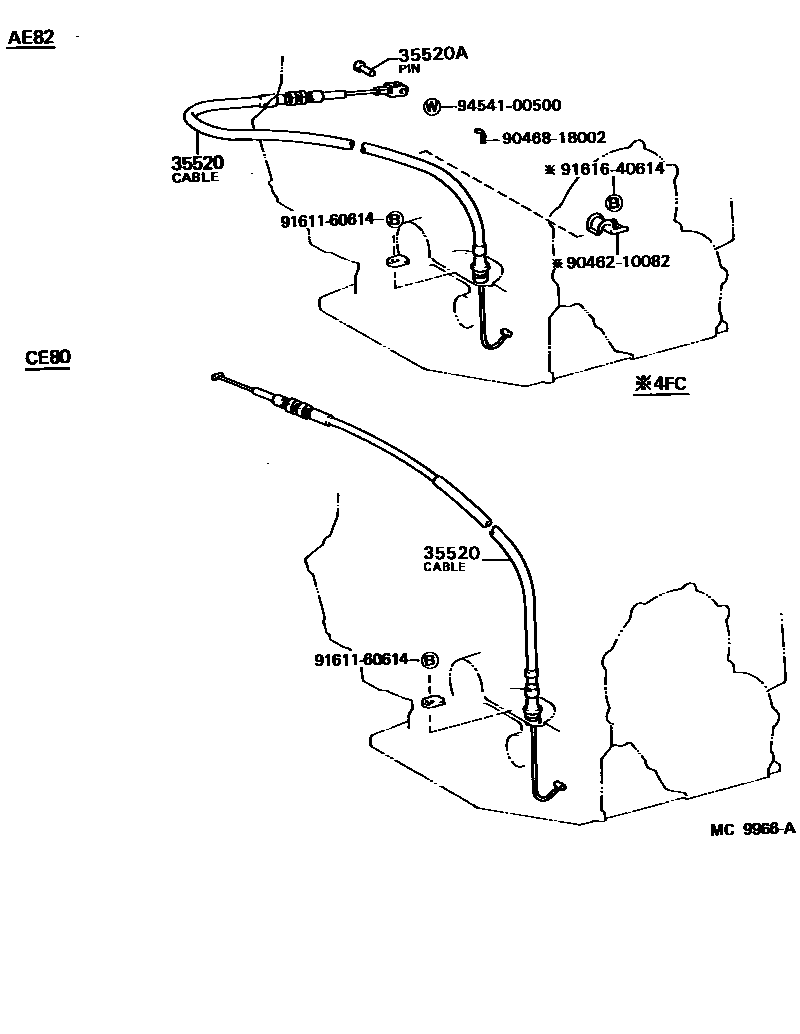

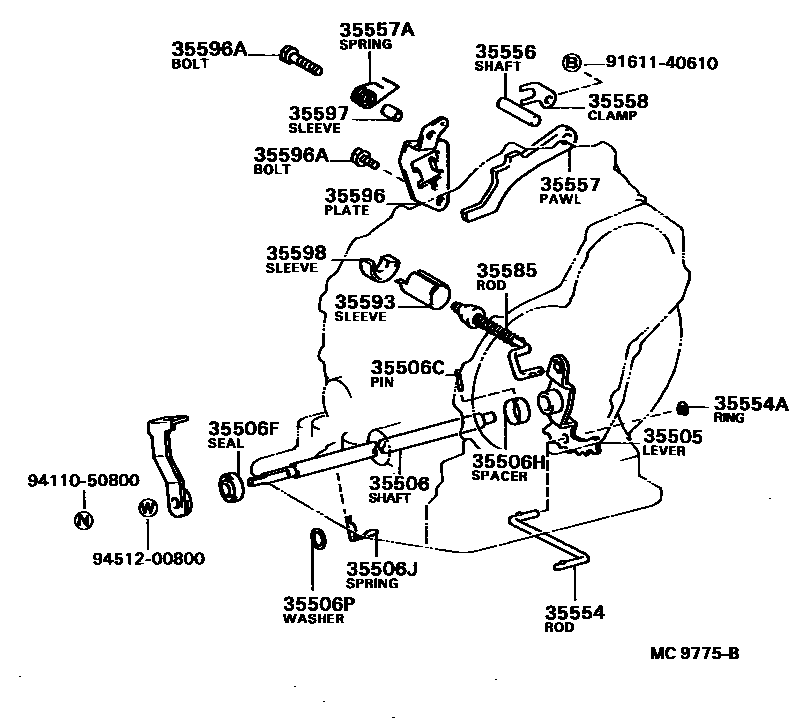

Toyota COROLLA 节气阀连杆和阀杆(ATM) — Figure 3513
Toyota COROLLA EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35505 | Manual valve stem sub-assembly | 35505-12020 · 35505-32011 |
| 35506 | Manual valve stem shaft sub-assembly | 35561-12020 · 35561-32010 |
| 35506C | Slotted spring pin (for manual valve stem shaft) | 90254-04011 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-12002 |
| 35506H | Spacer (for manual valve stem shaft) | 90560-20006 |
| 35506J | Stop spring (for manual valve stem shaft) | 90524-09001 · 90524-11001 |
| 35506P | Flat Washer (for manual valve stem shaft) | 90201-12028 |
| 35520 | Throttle valve cable assembly | 35520-12100 · 35520-12110 · 35520-12140 · 35520-20110 |
| 35520A | Throttle valve cable pin | 90240-05139 |
| 35556 | Parking lock pawl shaft | 35556-12020 · 35556-32010 |
| 35557 | Parking pawl | 35557-12020 · 35557-32010 · 35557-32020 |
| 35557A | Torsion spring (for parking pawl) | 90508-21003 · 90508-26047 · 90508-26058 |
| 35558 | Claw shaft clamp | 35558-12010 |
| 35585 | Parking lock lever | 35501-12010 · 35501-32010 |
| 35593 | Cam guide bushing | 35593-12010 |
| 35595 | Parking lock pawl bracket | 35595-32010 |
| 35596 | Claw block | 35596-12010 |
| 35596A | Bolt (for jaw block) | 90105-08068 · 90105-08070 |
| 35597 | Spring guide bush | 35597-12010 |
| 35598 | Parking lock cover | 35598-12010 |
