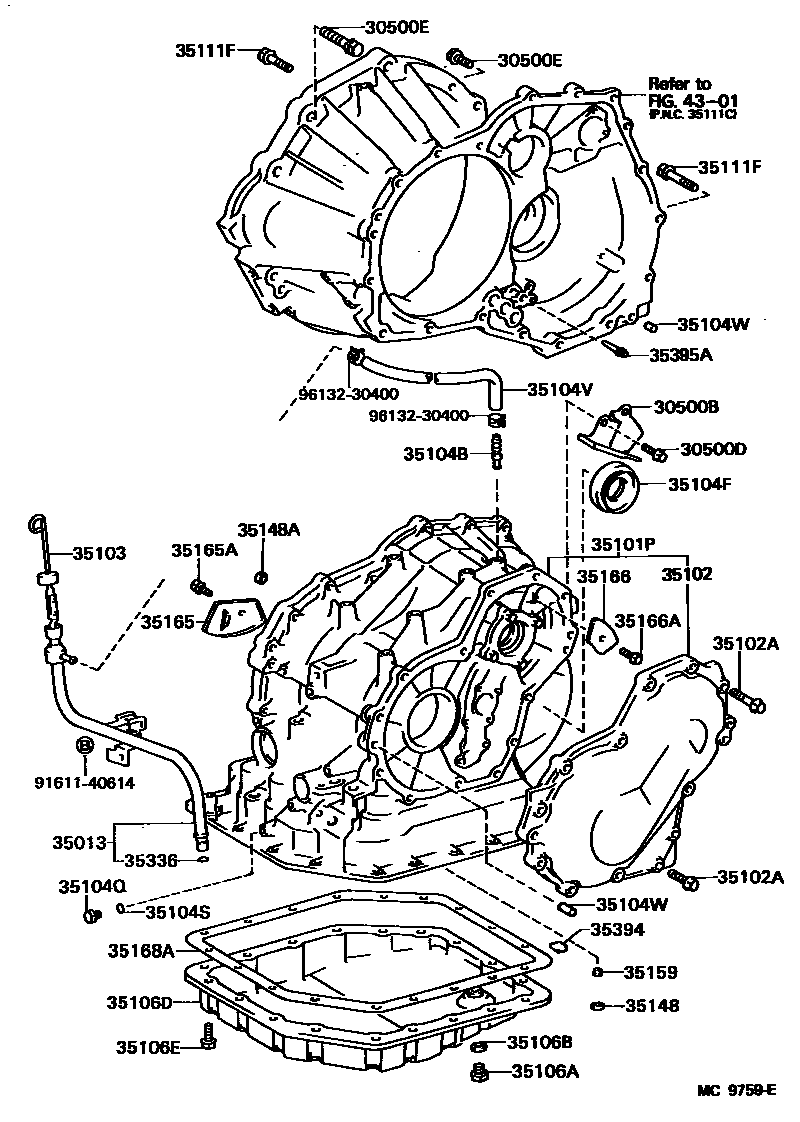

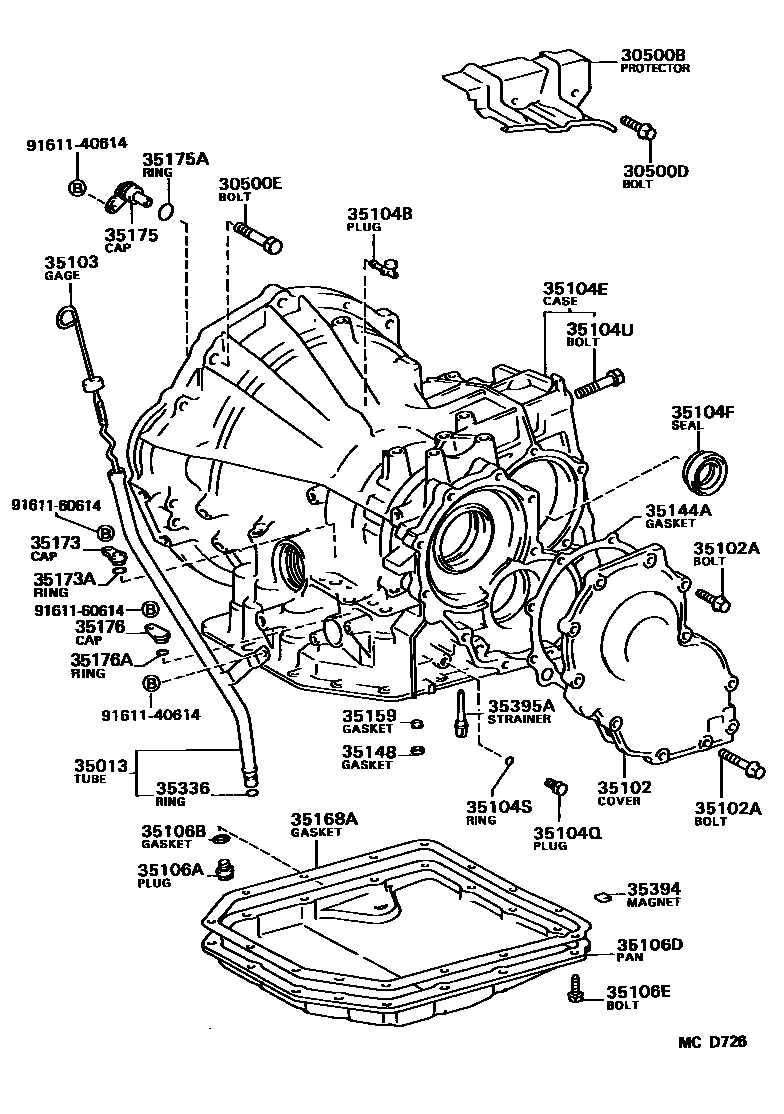

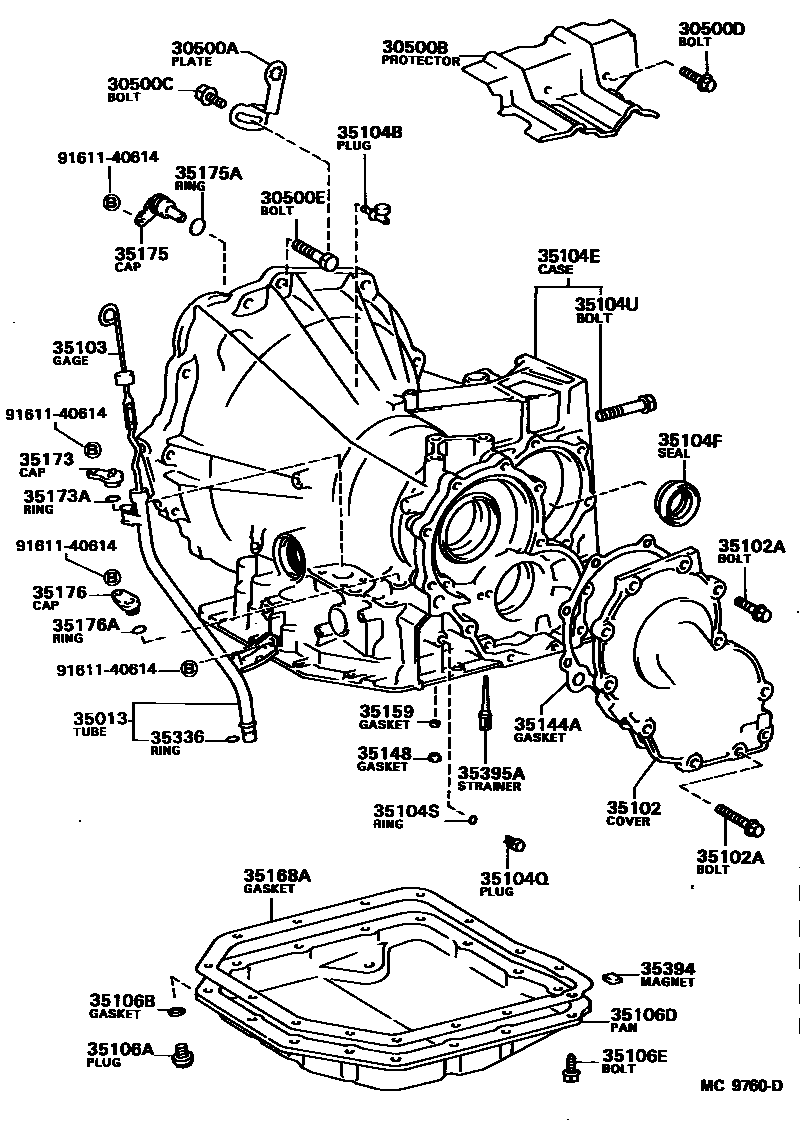

Toyota COROLLA 变速器壳和油底壳(ATM) — Figure 3503
Toyota COROLLA EPC diagram 3503, 变速器壳和油底壳(ATM), with 3 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500A | Bolt locking plate (ATM) | 31129-32010 |
| 30500B | Transmission axle housing protective cover | 33117-10010 · 33117-10011 · 33117-12020 · 33117-12030 · 33117-32020 · 33117-32021 |
| 30500C | Bolt (for bolt locking plate) | 90105-08040 |
| 30500D | Bolts (for transaxle housing guard) | 90105-08040 |
| 30500E | Bolts (for securing transaxle and engine) | 90105-08040 · 90105-10077 · 90119-12168 · 91611-60820 · 91611-61020 · 91611-61025 · 91619-61245 · 91619-61255 |
| 35013 | Transmission oil pipe sub-assembly | 35013-12140 · 35013-12141 · 35013-12160 · 35013-20200 |
| 35101P | Transmission axle housing and cover sub-assembly | 35101-12010 · 35101-12011 · 35101-12021 |
| 35102 | Transmission axle rear cover sub-assembly | 35102-12020 · 35102-20020 · 35102-20050 |
| 35102A | Bolts (for fixing the transmission axle rear cover) | 90105-08050 · 90105-08056 · 90105-08065 · 90105-08068 |
| 35103 | Transmission oil level scoring assembly | 35103-12060 · 35103-12070 · 35103-32010 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03084 · 90930-03089 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-12060 · 35104-12061 · 35104-12062 · 35104-12063 · 35104-12101 · 35104-12161 · 35104-12200 · 35104-32010 · 35104-32020 |
| 35104F | Oil seal (for transmission axle housing) | 90311-34005 · 90311-34010 · 90311-35010 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-06196 |
| 35104U | Bolts (for transaxle housing) | 90105-10008 · 90105-12052 |
| 35104V | Hoses (for breather plug) | 90445-11076 · 90447-11008 |
| 35104W | Direct sales (for transmission axle housing) | 90250-10007 · 90250-11001 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-10006 · 90341-18016 |
| 35106B | Drain plug gasket (ATM) | 35178-30010 · 90430-18007 · 90430-18008 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-10020 · 35106-10021 · 35106-12050 · 35106-32020 |
| 35106E | Bolts (for transaxle oil pan) | 90119-06173 |
| 35111F | Bolts (for securing transaxle housing and transaxle housing) | 90105-08065 · 90105-08066 · 90105-08067 · 90105-08068 · 90105-08071 |
| 35144A | Transaxle rear cover gasket | 34112-32010 |
| 35148 | Governor oil supply pipe No. 1 gasket | 35148-16010 |
| 35148A | Governor oil supply pipe gasket No. 2 | 35148-12010 |
| 35159 | brake drum gasket | 35159-20010 · 35159-32010 · 35159-32011 |
| 35165 | No. 1 gearbox block | 35165-12010 |
| 35165A | Bolt (for gearbox block No. 1) | 90105-06049 |
| 35166 | No. 3 gearbox block | 35166-12010 |
| 35166A | Bolt (for gearbox block No. 3) | 90105-06049 |
| 35168A | Automatic transaxle oil pan gasket | 35168-12020 · 35168-32010 |
| 35173 | No. 1 transmission axle housing cover | 35173-20010 |
| 35173A | O-ring (for No. 1 transaxle housing cover) | 96721-19017 |
| 35175 | No. 2 transmission axle housing cover | 35175-32010 |
| 35175A | O-ring (for transmission axle housing cover) | 90301-21002 |
| 35176 | Wire harness cover | 35176-32010 |
| 35176A | O-ring (for wire harness cover) | 96721-24013 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
| 35395A | governor oil filter | 35395-20010 · 35395-32010 · 35395-32011 |
