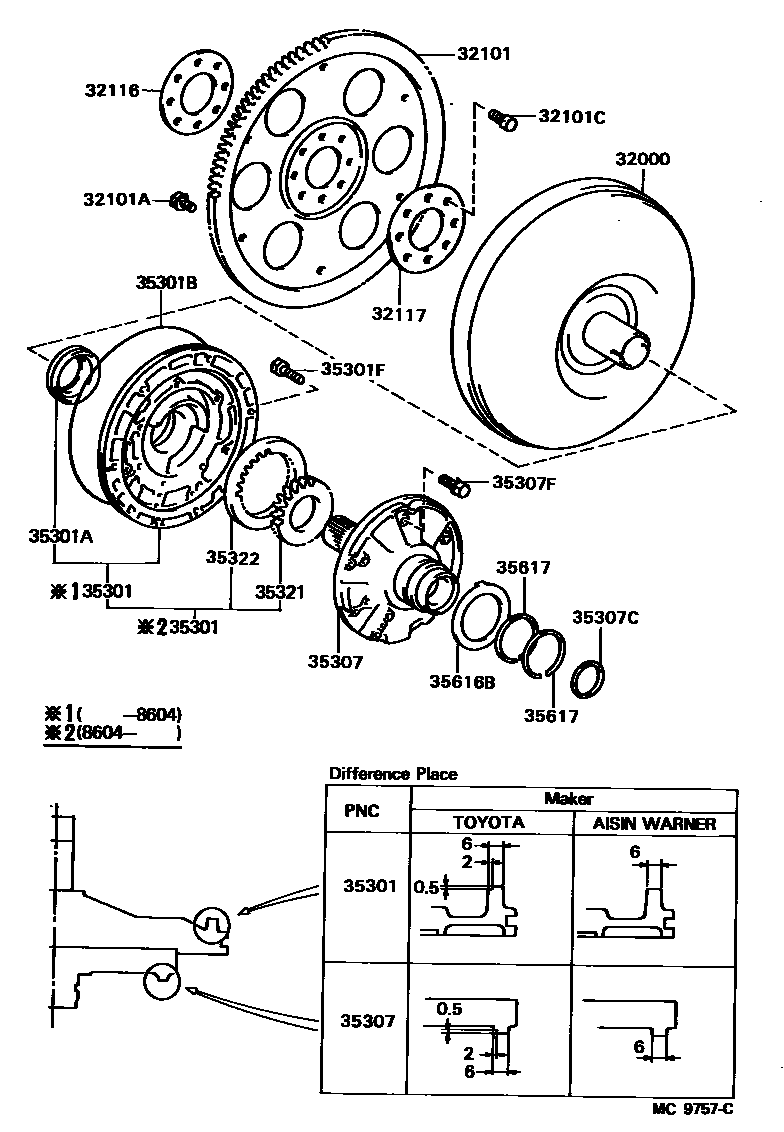

Toyota COROLLA 变矩器、前油泵和链条(ATM) — Figure 3502
Toyota COROLLA EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-12100 · 32000-12101 · 32000-17011 · 32000-32010 · 32000-32012 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-12060 · 32101-12070 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-08090 · 90109-08107 · 90119-08223 · 90119-08269 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 · 90109-10037 |
| 32116 | Front transmission plate spacer | 32116-12010 · 32116-20030 |
| 32117 | Rear transmission plate spacer | 32117-12010 · 32117-20040 |
| 35301 | Front oil pump body sub-assembly | 35035-20010 · 35035-32010 · 35035-32020 · 35301-12020 · 35301-12021 · 35301-32030 · 35301-32031 · 35301-32040 |
| 35301A | Oil seal (for front oil pump) | 90311-38020 |
| 35301B | O-ring (for front oil pump body) | 90301-99024 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08050 |
| 35307 | Stator shaft sub-assembly | 35370-32020 · 35370-32021 · 35370-32022 · 35370-32031 |
| 35307C | Thrust bearing race (for stator shaft) | 35789-32020 · 35789-32030 |
| 35307F | Bolt (for stator shaft) | 90119-06180 |
| 35321 | Front oil pump driving gear | 35321-32020 · 35321-32040 · 35321-32050 · 35321-32060 |
| 35322 | Front oil pump driven gear | 35322-32020 · 35322-32040 · 35322-32050 · 35322-32060 |
| 35616B | Clutch drum thrust washer (for stator shaft) | 35616-32010 |
| 35617 | Clutch drum oil ring | 35617-22011 · 35617-32010 |
