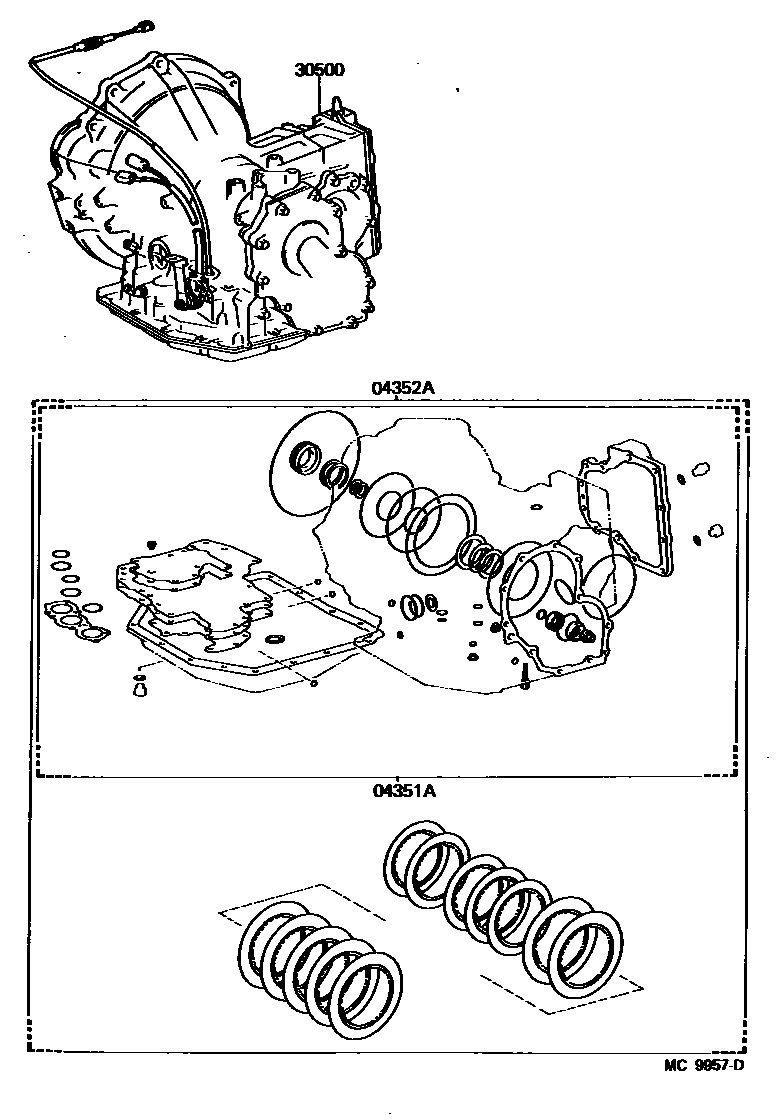

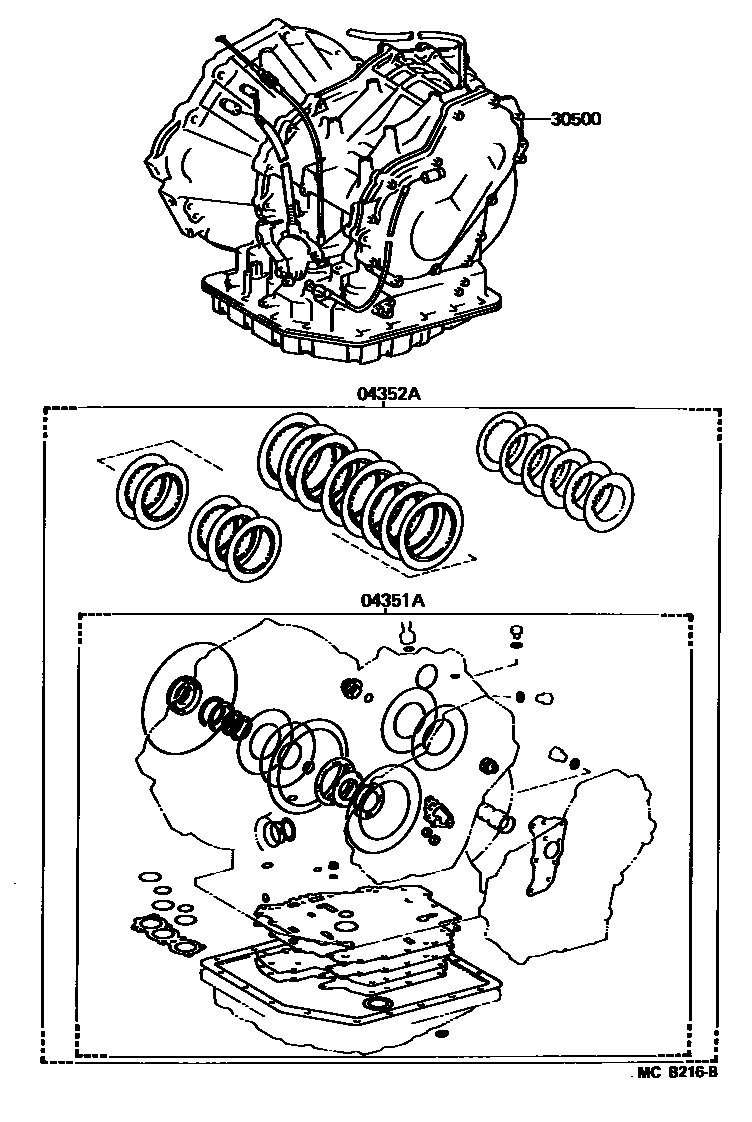

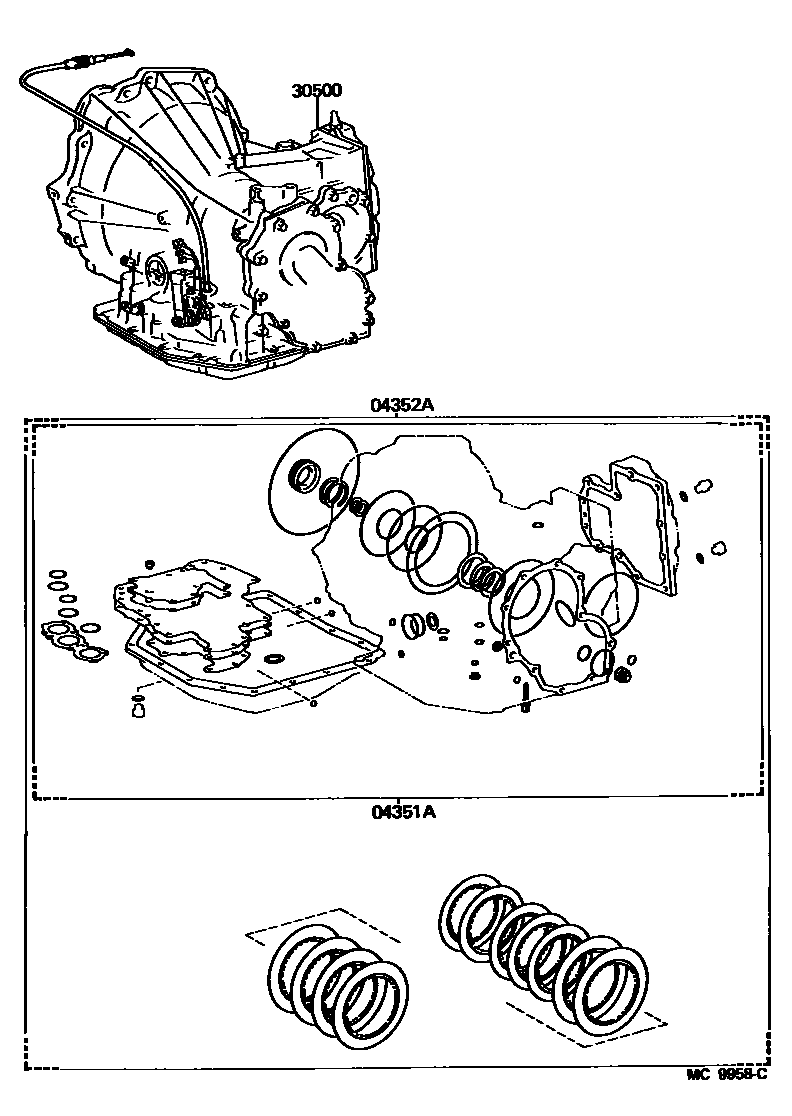

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-12021 · 04351-12022 · 04351-12040 · 04351-12050 · 04351-20051 · 04351-20060 |
| 04352A | Transaxle Overhaul Kit (ATM) | 04352-12020 · 04352-12021 · 04352-12050 · 04352-12070 · 04352-12080 · 04352-12090 |
| 30500 | Automatic transmission axle assembly | 30500-12010 · 30500-12030 · 30500-12031 · 30500-12032 · 30500-12150 · 30500-12151 · 30500-12152 · 30500-12190 · 30500-12191 |
