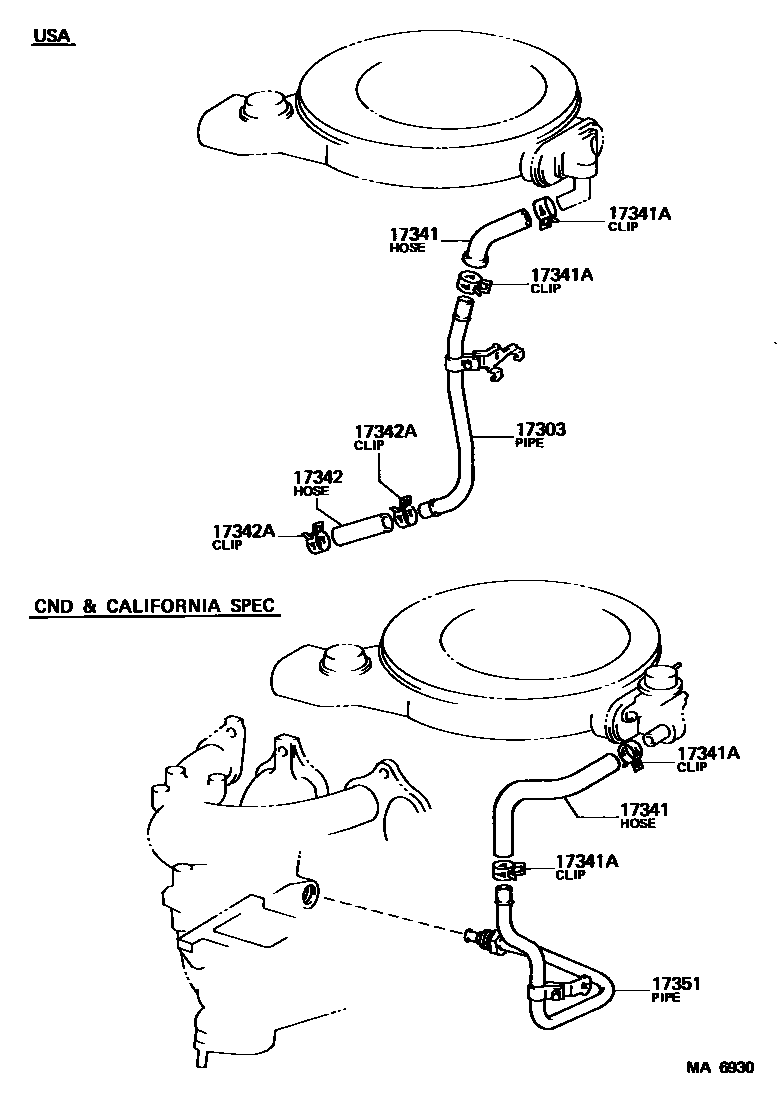

Toyota COROLLA 歧管喷气系统 — Figure 1706
Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303 | Air pipe subassembly | 17303-16030 · 17303-16070 |
| 17341 | Hoses No. 1 (for air injection systems) | 17341-16040 · 17341-16050 · 17341-16051 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 90467-23003 · 90467-31002 |
| 17342 | Hoses No. 2 (for air injection systems) | 90445-36001 |
| 17342A | No. 2 clip or clip (for No. 2 air injection system hose) | 90467-31002 |
| 17351 | jet manifold | 17306-16010 |
