Toyota COROLLA Manifold — Figure 1701

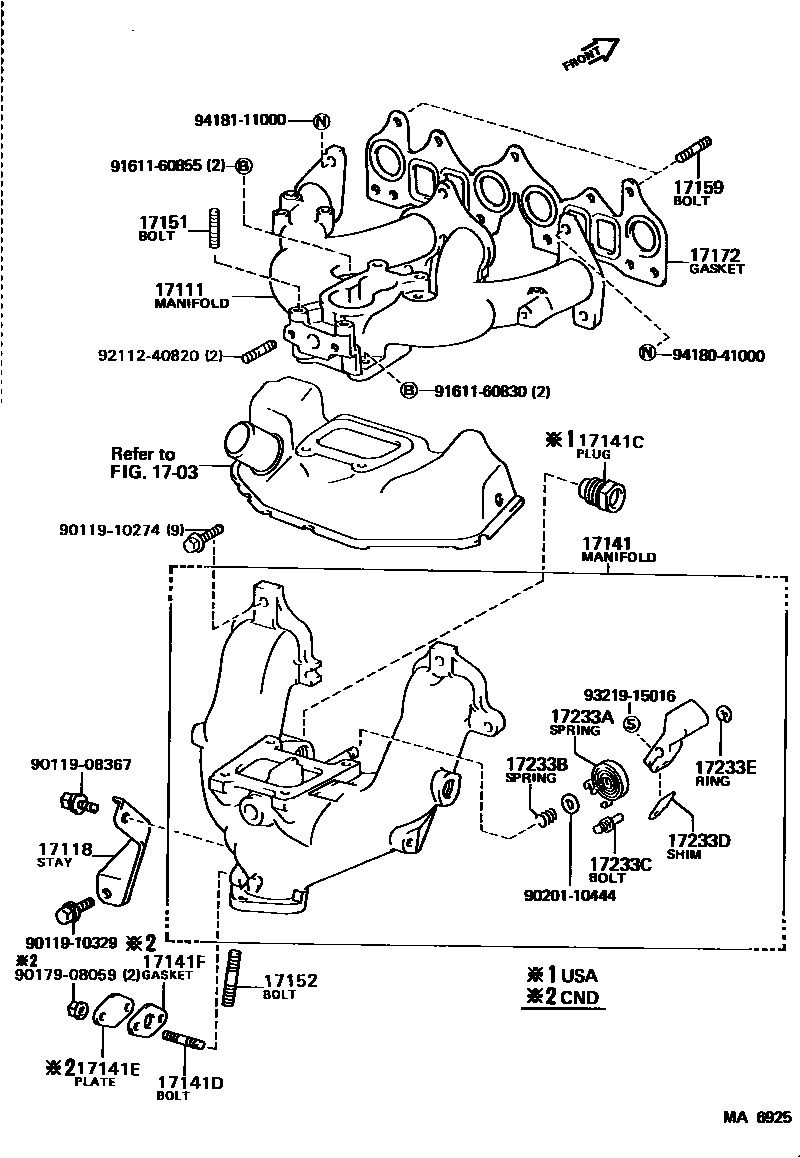

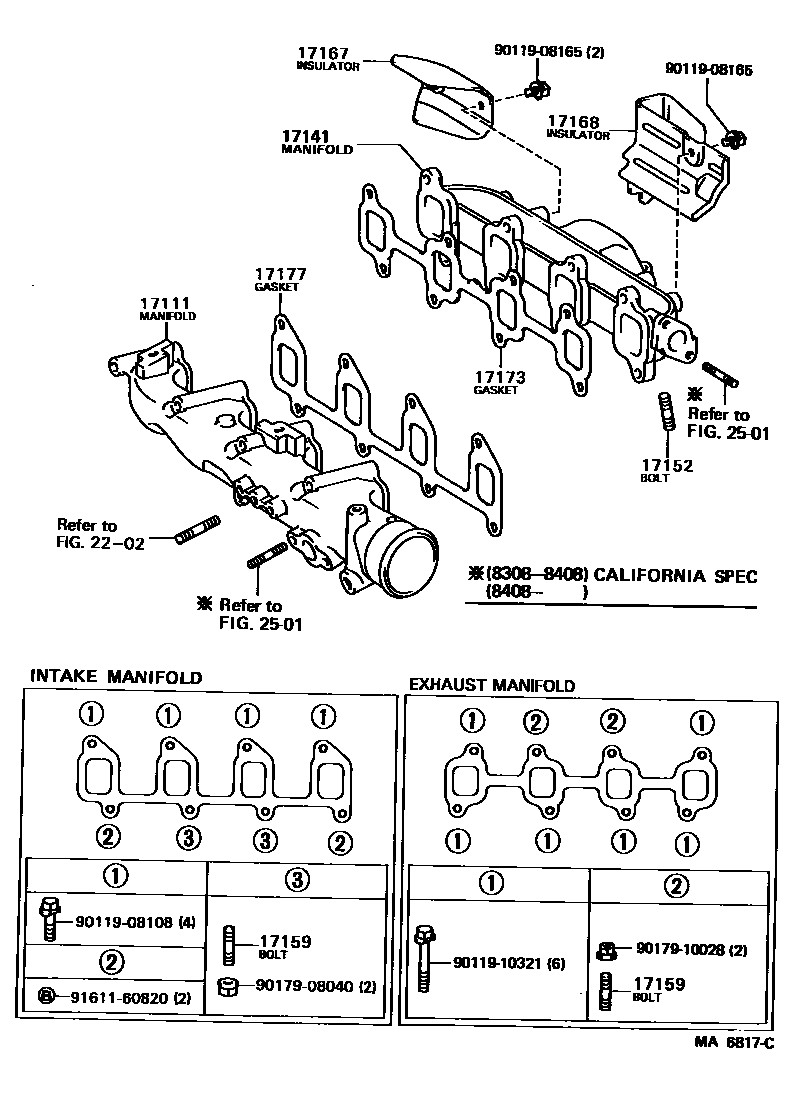

Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17111-15030 · 17111-64040 · 17111-64060 · 17111-64061 |
| 17118 | Manifold stays | 17118-16020 |
| 17141 | exhaust manifold | 17140-16010 · 17141-64021 · 17141-64041 · 17141-64060 |
| 17141C | Headed straight thread plug | 90341-24004 |
| 17141D | Studs (for oxygen sensor) | 90116-08128 |
| 17141E | Exhaust manifold plate | 17148-41010 |
| 17141F | Gasket (for exhaust manifold plate) | 89466-30010 |
| 17151 | Studs (for manifold to carburetor) | 92112-40832 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10095 · 92112-61032 · 92122-60820 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-64031 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-64010 |
| 17172 | Gasket (manifold to cylinder head) | 17172-15010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-64020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-64010 |
| 17233A | No. 1 coil spring (for counterweight) | 90510-06001 |
| 17233B | No. 2 coil spring (for counterweight) | 90501-08022 |
| 17233C | Bolt (for counterweight) | 90109-10045 |
| 17233D | Spacers (for counterweight) | 90910-10005 |
| 17233E | E-ring (for counterweight) | 96160-00800 |
