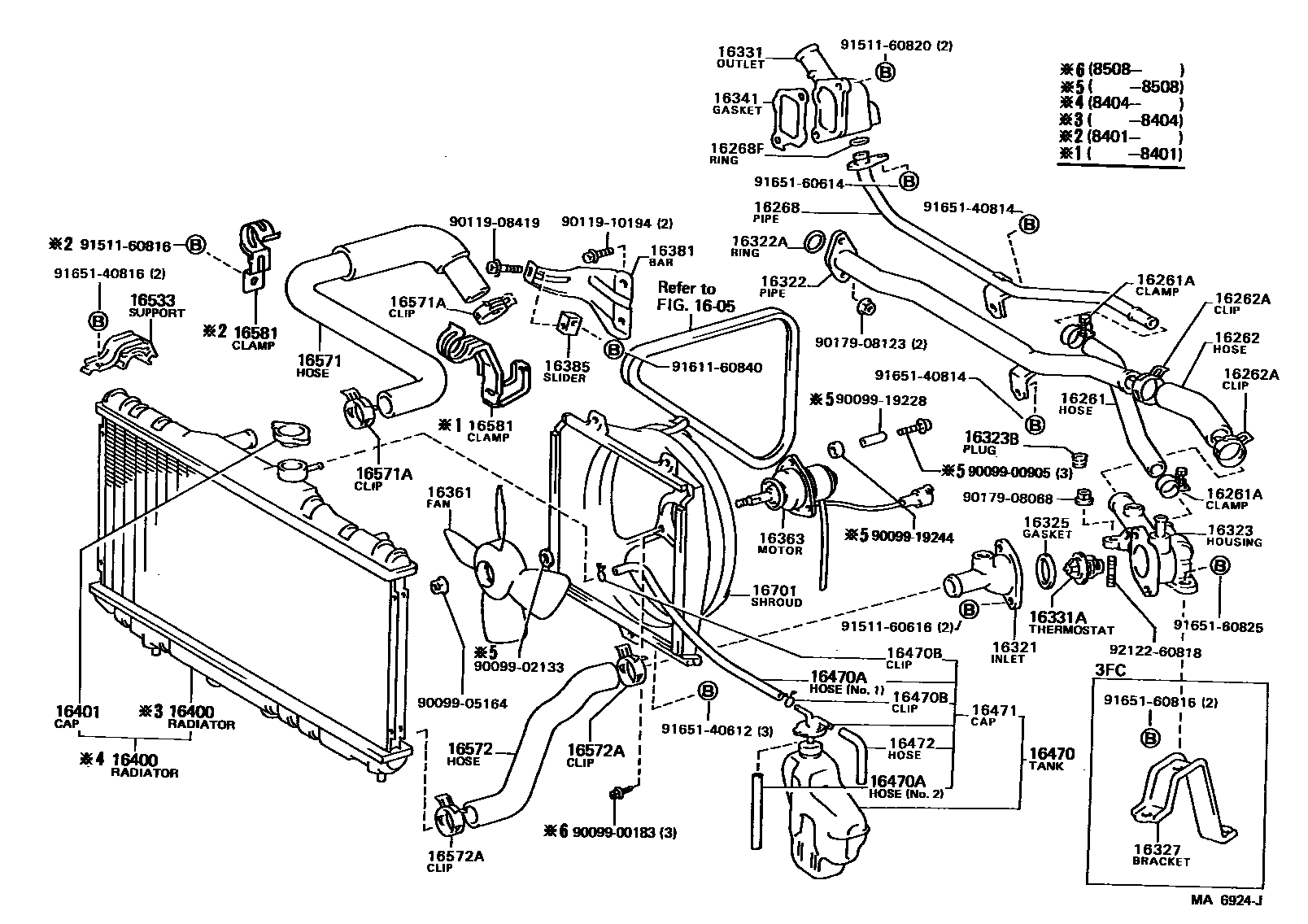

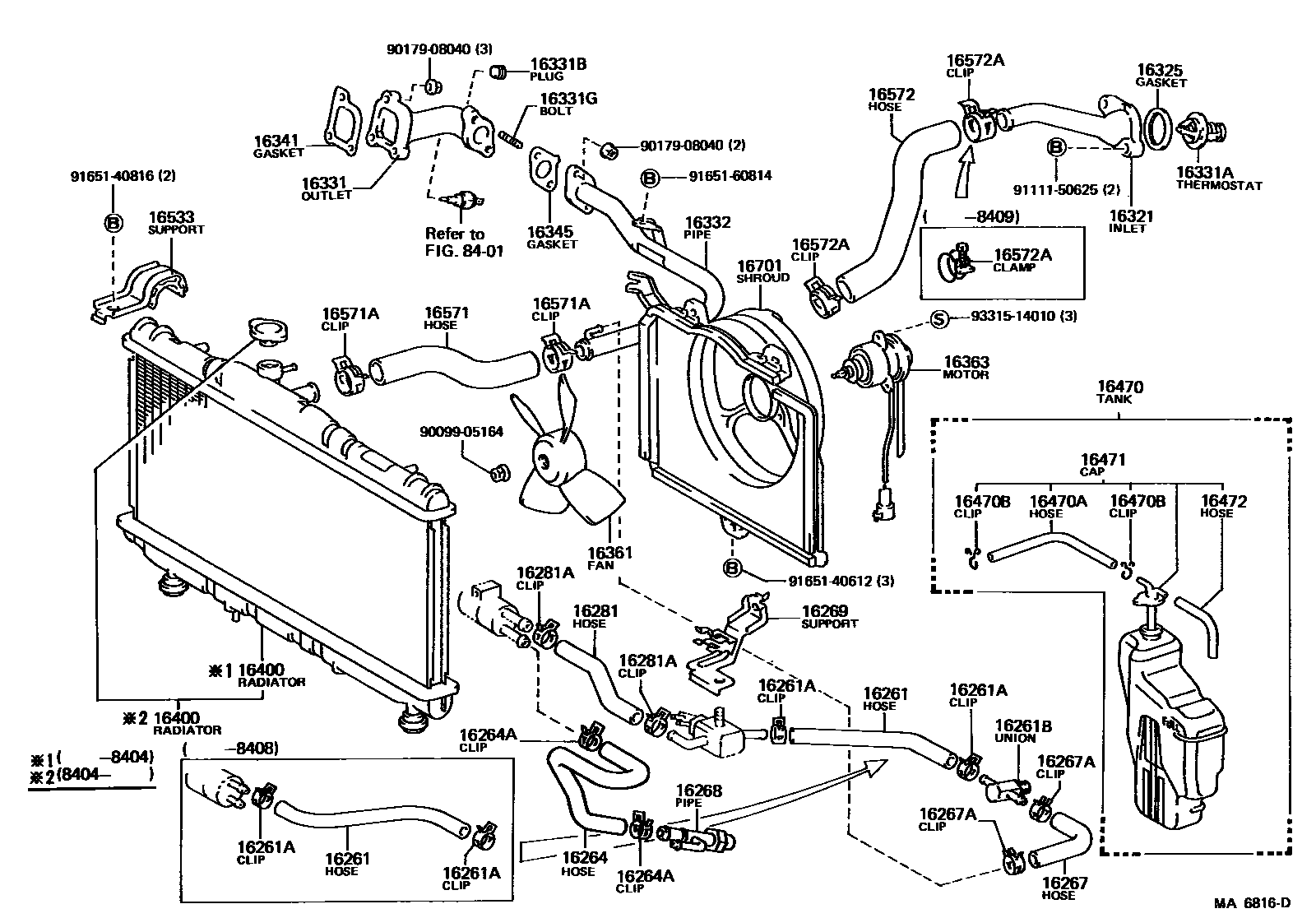

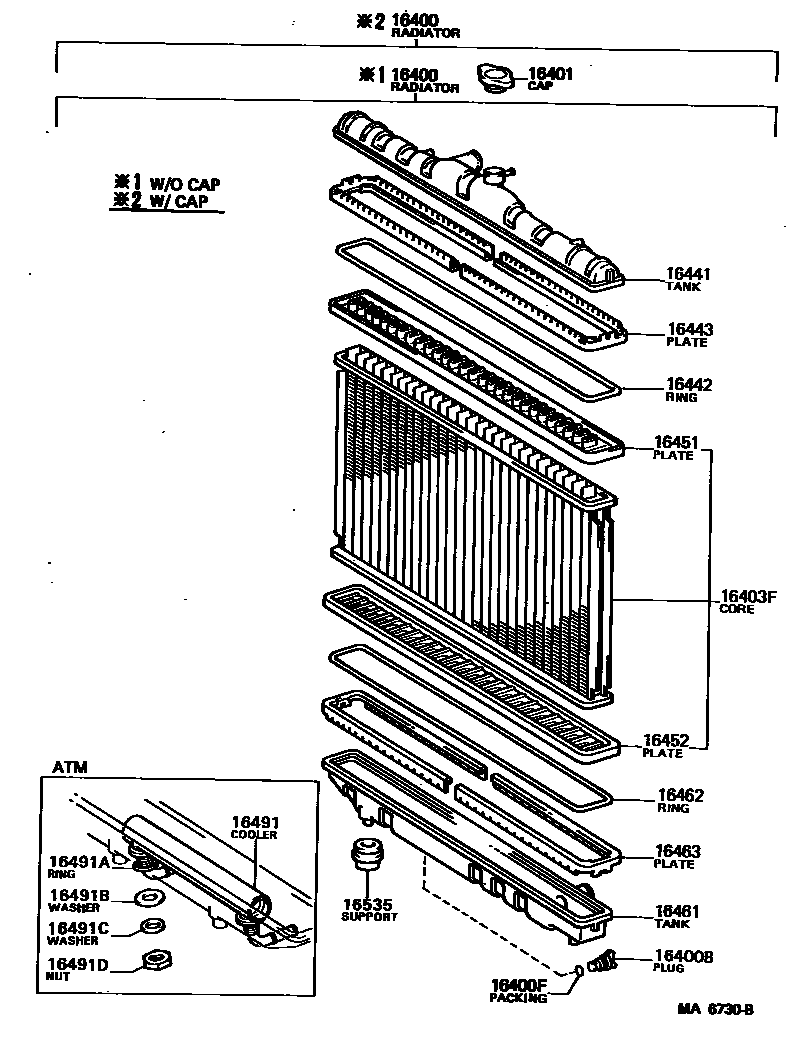

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 3 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-15010 · 16261-64060 · 16261-64070 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-15004 · 96112-10250 |
| 16261B | Connector (for water bypass hose) | 90404-53050 |
| 16262 | water inlet hose | 16262-15010 |
| 16262A | Clamp (for water inlet hose) | 90467-34002 · 90467-34003 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-64050 · 16264-64060 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-15004 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-64010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-11009 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-15040 · 16268-15060 · 16268-64020 · 16268-64040 |
| 16268F | O-ring (for water bypass pipe) | 96711-24013 |
| 16269 | Water bypass pipe bracket | 16269-64010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-64010 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-15004 |
| 16321 | water inlet | 16321-15010 · 16321-64020 |
| 16322 | PIPE, WATER INLET | 16322-15010 · 16322-15030 |
| 16322A | O-RING, WATER INLET | 96711-24035 |
| 16323 | HOUSING, WATER INLET | 16323-15030 · 16323-15040 |
| 16323B | Screw plug (for water inlet housing) | 90344-53008 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 |
| 16327 | Water inlet shell bracket | 16327-15010 |
| 16331 | Water outlet | 16331-15060 · 16331-64030 |
| 16331A | thermostat | 90916-03046 |
| 16331B | Screw plug (for water outlet) | 90344-53011 |
| 16331G | Stud bolts (for water inlet) | 92122-60816 |
| 16332 | No. 1 outlet pipe | 16332-64010 |
| 16341 | GASKET, WATER OUTLET | 16341-15011 · 16341-64010 |
| 16345 | Outlet pipe gasket | 16345-64020 |
| 16361 | Fan | 16361-15080 · 16361-63030 · 16361-64010 |
| 16363 | cooling fan motor | 16363-15090 · 16363-16030 · 16363-64010 |
| 16381 | Fan belt adjustment lever | 16381-15040 · 16381-15041 · 16381-16020 · 16381-16021 |
| 16385 | Fan belt adjustment slider | 16385-15010 |
| 16400 | Radiator assembly | 16400-15190 · 16400-15200 · 16400-64070 · 16400-64080 · 16410-15190 · 16410-15200 · 16410-64060 · 16410-64070 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-63010 |
| 16403F | Radiator core sub-assembly | 16403-15190 · 16403-63040 · 16403-64070 · 16403-64080 · 16403-74120 · 16403-74180 |
| 16441 | Radiator water tank | 16441-15190 · 16441-64070 |
| 16442 | O-ring (for radiator tank) | 16442-63030 · 16462-63030 |
| 16443 | Radiator upper tank locking plate | 16443-15321 · 16463-15320 |
| 16451 | Radiator core upper plate | 16451-63030 · 16452-64070 |
| 16452 | Radiator core lower plate | 16452-63030 · 16452-64070 |
| 16461 | Radiator lower tank | 16461-14050 · 16461-15190 · 16461-64070 · 16461-64080 |
| 16462 | O-ring (for radiator lower tank) | 16462-63030 |
| 16463 | Radiator lower tank locking plate | 16463-15320 |
| 16470 | Radiator reservoir assembly | 16470-15020 · 16470-63030 |
| 16470A | Hoses or tubes (for radiator reservoir) | 90445-12129 · 90445-12137 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-15030 · 16405-63030 |
| 16472 | Breather hose | 85338-30010 · 85338-70100 |
| 16491 | Oil cooler (for ATM) | 16491-63040 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-35080 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-15130 |
| 16491C | Spring washer (for automatic transmission oil cooler) | 16494-15130 |
| 16491D | Nut (for automatic transmission oil cooler) | 16496-15130 |
| 16533 | Radiator upper bracket | 16533-15060 · 16533-15061 · 16533-15062 · 16533-64010 |
| 16535 | Radiator lower support | 16535-15020 · 16535-63010 |
| 16571 | Radiator water inlet hose | 16571-15100 · 16571-64050 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34001 · 90467-34002 · 90467-34003 |
| 16572 | Radiator outlet hose | 16572-15150 · 16572-64050 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-34001 · 90467-34002 · 90467-34003 · 90467-37002 · 96111-10450 |
| 16581 | Hose clamp (for water hose) | 16581-15010 · 16581-15020 |
| 16701 | Fan cover sub-assembly | 16711-15140 · 16711-15150 · 16711-64050 |
