Toyota COROLLA Water Pump — Figure 1601

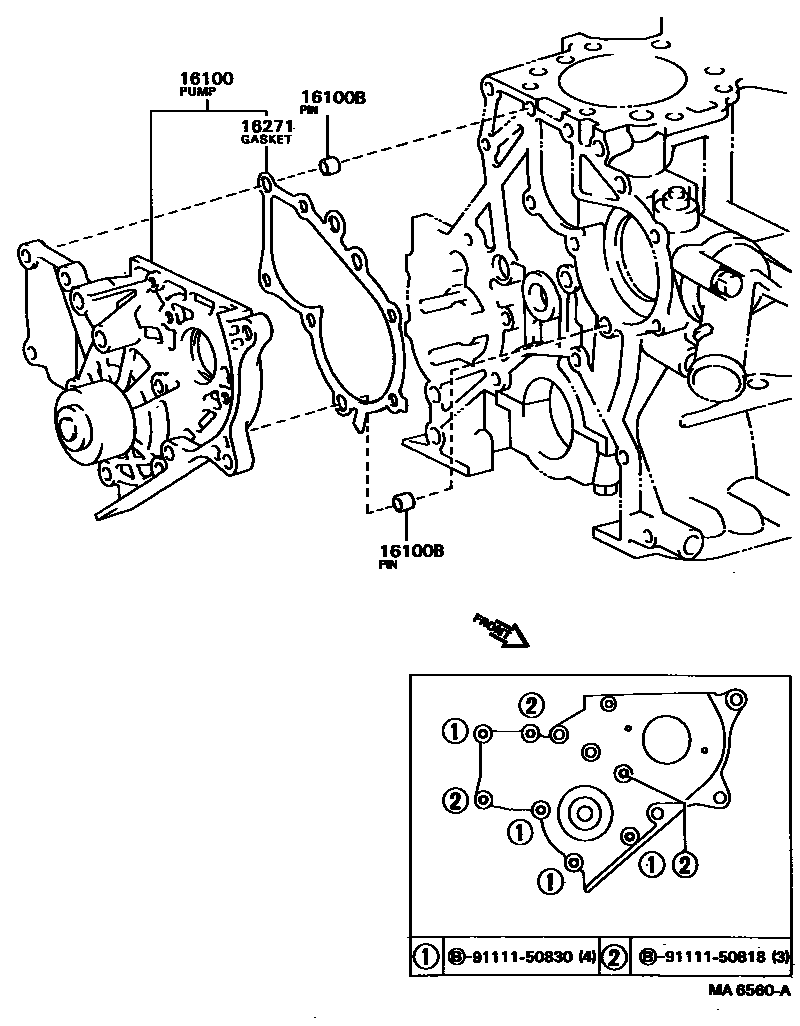

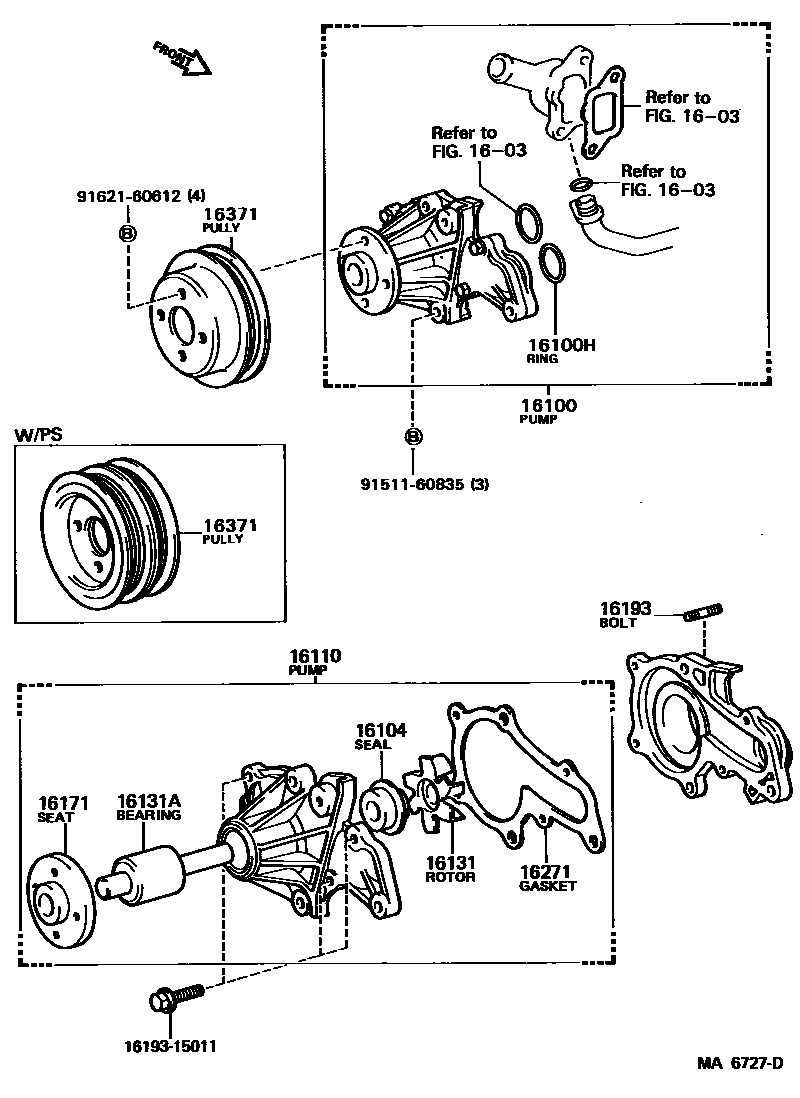

Toyota COROLLA EPC diagram 1601, Water Pump, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-19105 · 16100-69085 |
| 16100B | Ring pin (for water pump assembly) | 90253-11021 |
| 16100H | O-ring (for water pump) | 96711-24035 |
| 16104 | Water pump seal components | 16104-15020 · 16104-41112 |
| 16110 | Water pump assembly without coupling | 16110-19045 · 16110-19046 |
| 16131 | water pump rotor | 16131-15050 · 16131-15051 |
| 16131A | water pump bearings | 90369-35021 · 90369-35043 |
| 16171 | water pump pulley seat | 16171-15050 |
| 16193 | Studs (for water pump cover) | 92122-60816 |
| 16271 | water pump gasket | 16124-15010 · 16271-64010 |
| 16371 | fan pulley | 16371-15050 · 16371-15060 |
