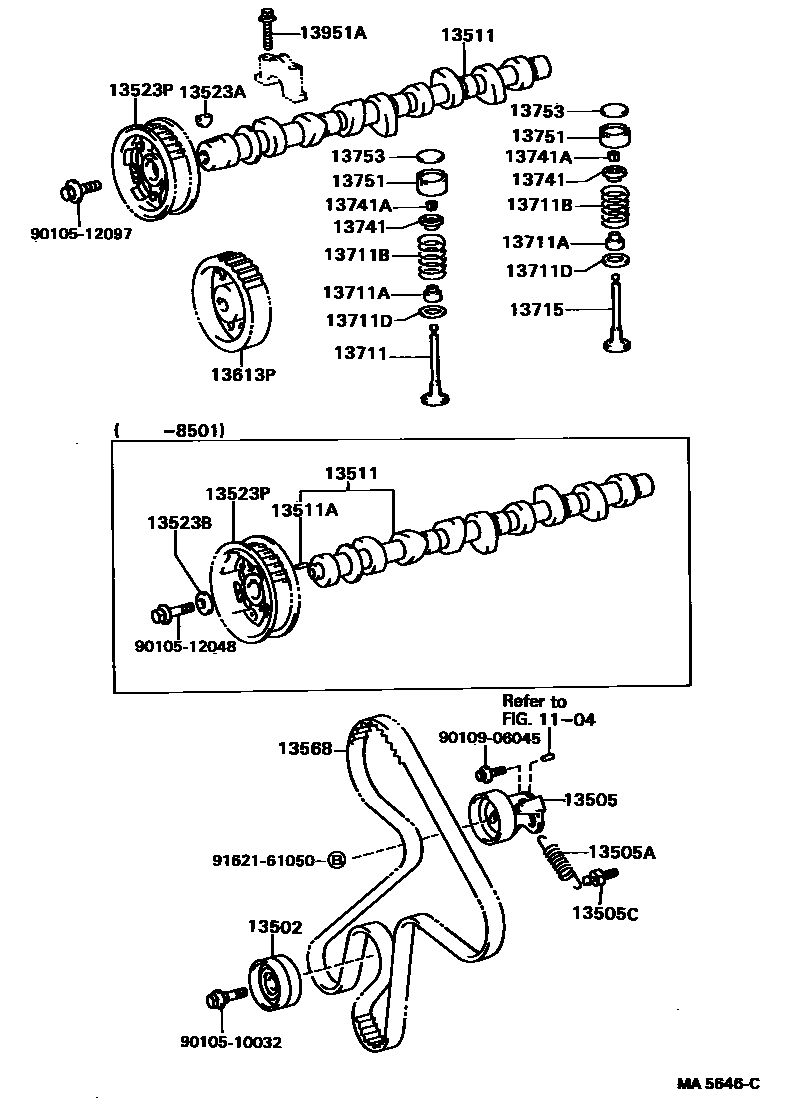

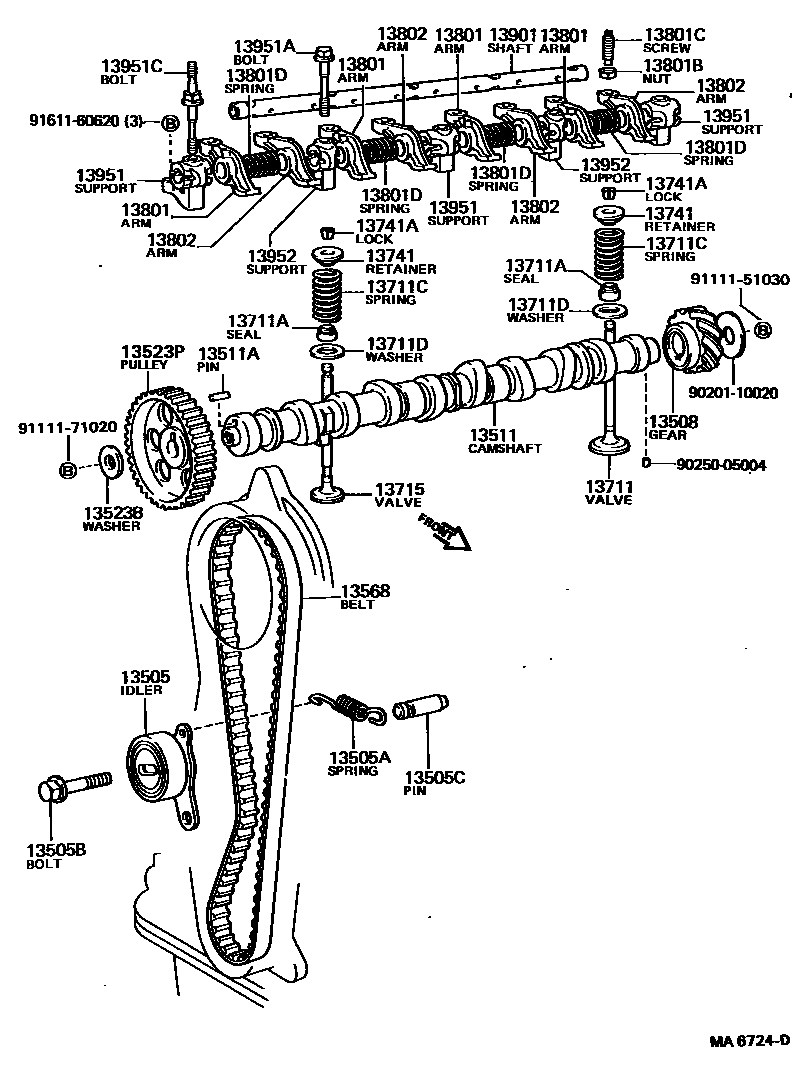

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-64020 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-15040 · 13505-15041 · 13505-64020 |
| 13505A | Tension spring (for idler pulley) | 90506-14016 · 90507-18006 · 90507-18017 |
| 13505B | Flange bolts (for idler gear) | 91511-61040 |
| 13505C | Pin (for idler tension spring) | 13575-64010 · 90249-06006 |
| 13508 | Distributor driving gear sub-assembly | 13508-15010 |
| 13511 | camshaft | 13511-14010 · 13511-64010 · 13511-64020 · 13511-64021 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05121 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 |
| 13523B | Flat washer (for timing gear) | 90201-10019 · 90201-13019 |
| 13523P | Camshaft timing pulley | 13051-64010 · 13051-64011 · 13523-14010 |
| 13568 | timing belt | 13568-15010 · 13568-64010 |
| 13613P | Fuel injection pump drive pulley | 13613-64010 · 13613-64011 |
| 13711 | intake valve | 13711-15010 · 13711-64010 · 13711-64011 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02038 · 90913-02053 |
| 13711B | Compression spring (for inner side) | 90501-43003 |
| 13711C | Compression spring (for outside) | 90501-42003 · 90501-42004 |
| 13711D | Flat washer (for valve spring seat) | 90201-16010 · 90201-21002 |
| 13715 | exhaust valve | 13715-15010 · 13715-64010 · 13715-64012 |
| 13741 | Valve spring seat ring | 13741-15010 · 13741-43010 |
| 13741A | Valve spring seat lock plate | 90913-03014 · 90913-03017 |
| 13751 | valve lifter | 13751-64010 · 13751-64011 |
| 13753 | valve adjustment gasket | 13753-64010 · 13753-64030 · 13753-64050 · 13753-64070 · 13753-64090 · 13753-64110 · 13753-64130 · 13753-64150 · 13753-64170 · 13753-64190 · 13753-64210 · 13753-64230 · 13753-64250 · 13753-64270 · 13753-64290 · 13753-64310 · 13753-64330 · 13753-64350 · 13753-64370 · 13753-64390 · 13753-64410 · 13753-64430 · 13753-64450 · 13753-64470 · 13753-64490 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13811-15010 |
| 13801B | Hex nut (for valve adjustment) | 90170-07001 |
| 13801C | valve adjustment screw | 90913-05018 |
| 13801D | Compression spring (for rocker arm) | 90501-14025 |
| 13802 | No. 2 valve rocker arm sub-assembly | 13812-15010 |
| 13901 | No. 1 valve rocker arm shaft sub-assembly | 13901-15010 |
| 13951 | No. 1 valve rocker arm bracket | 13951-15010 |
| 13951A | Bolts (for rocker arm bracket assembly) | 90109-08029 · 91621-60840 · 91651-60845 |
| 13951C | Stud bolts (for rocker arm bracket) | 90109-08028 |
| 13952 | No. 2 valve rocker arm bracket | 13952-15010 |
