Toyota COROLLA Crankshaft & Piston — Figure 1301

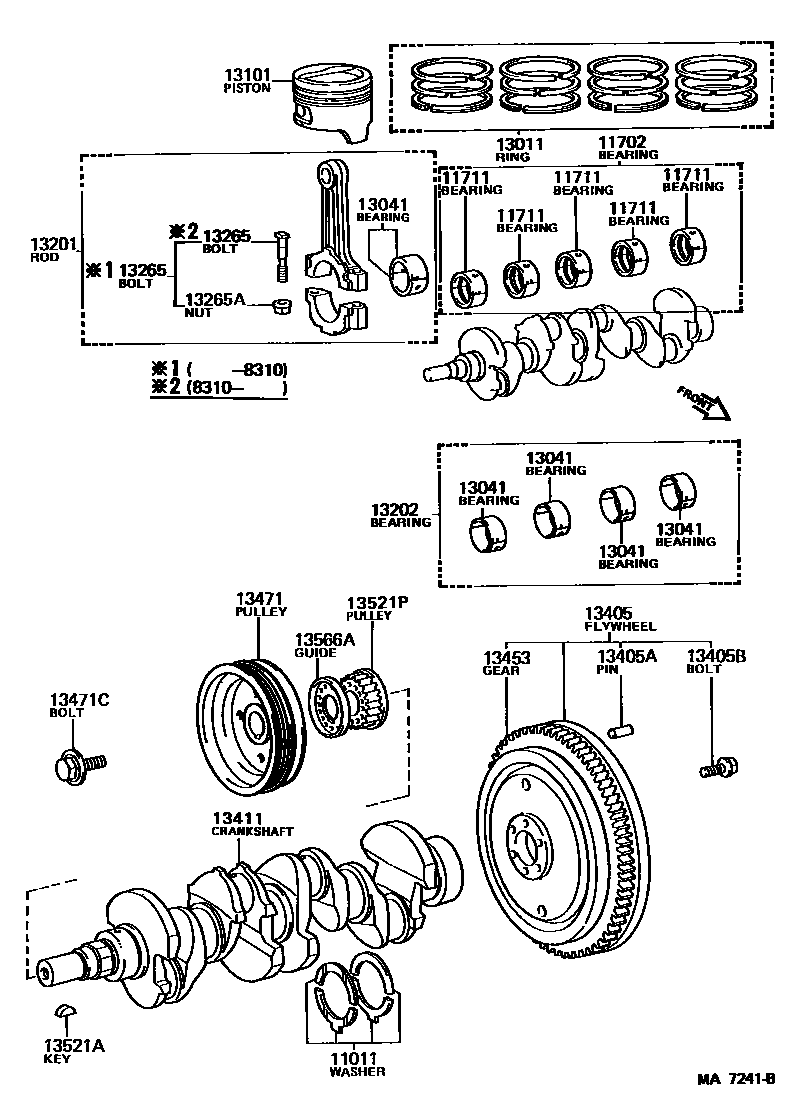

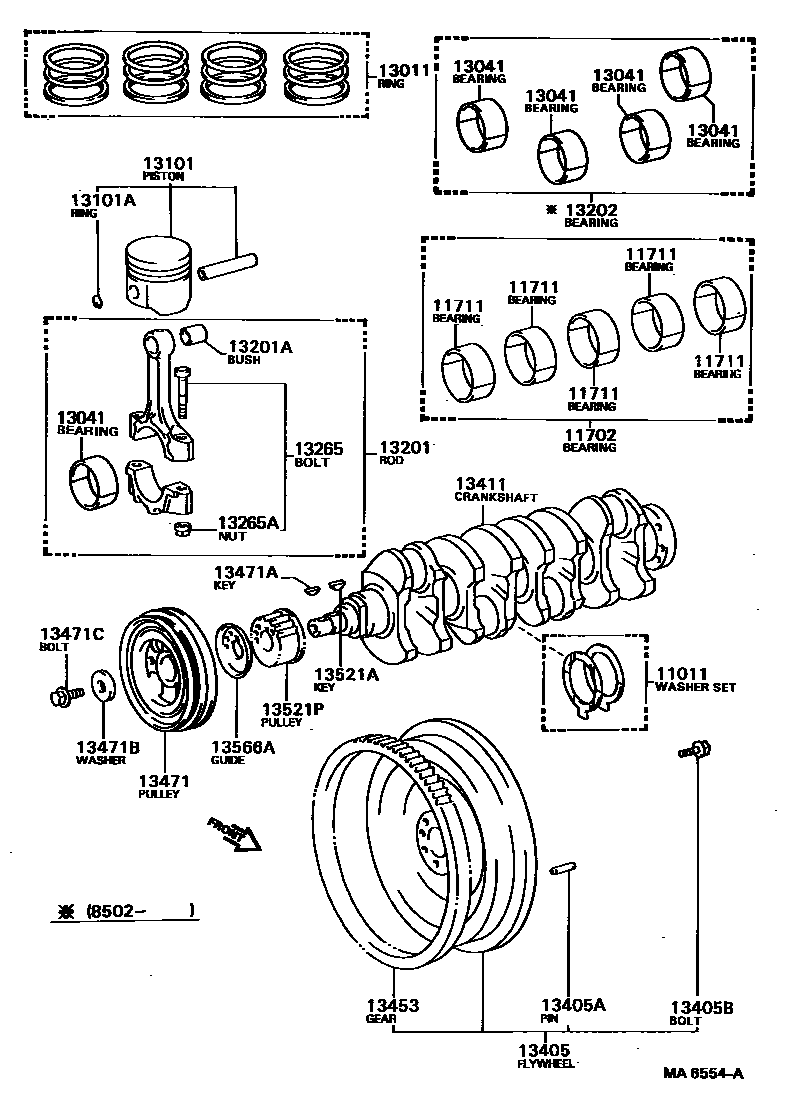

Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-15010 · 11011-64010 · 11012-64010 · 11013-64010 |
| 11702 | crankshaft bearing assembly | 11704-15050 · 11704-64030 |
| 13011 | Piston ring assembly | 13011-16011 · 13011-64020 · 13011-64070 · 13013-16011 · 13013-64020 · 13013-64070 |
| 13101 | Piston sub-assembly with pin | 13101-16010 · 13101-64010 · 13101-64040 · 13103-16010 · 13103-64010 · 13103-64040 |
| 13101A | Bore snap ring (for piston pin) | 90521-29003 |
| 13201 | Connecting rod sub-assembly | 13201-19045 · 13201-19055 · 13201-69035 · 13201-69036 |
| 13201A | Bushing (for connecting rod small end) | 90999-73091 · 90999-73101 |
| 13202 | Connecting rod bearing assembly | 13204-15011 · 13204-15030 · 13204-64031 |
| 13265 | Connecting rod bolts | 13265-15020 · 13265-19015 · 13265-49015 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90170-08014 · 90170-09001 · 90179-10042 |
| 13405 | Flywheel sub-assembly | 13405-19075 · 13405-69065 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10042 · 90105-10071 |
| 13411 | crankshaft | 13411-15030 · 13411-15040 · 13411-64010 · 13411-64011 |
| 13453 | flywheel ring gear | 13453-10010 · 13453-64011 |
| 13471 | crankshaft pulley | 13408-64031 · 13470-15010 · 13470-15020 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 95161-20516 |
| 13471B | Flat Washer (for crankshaft pulley assembly) | 90201-14007 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-12012 · 90119-12101 · 91511-61435 |
| 13521A | Key (for crankshaft timing gear) | 90280-05010 · 95161-10519 · 95161-20622 |
| 13521P | crankshaft timing pulley | 13521-15010 · 13521-64010 |
| 13566A | timing belt guide | 13566-15010 · 13566-64010 |
