Toyota COROLLA Engine Mounting — Figure 1107

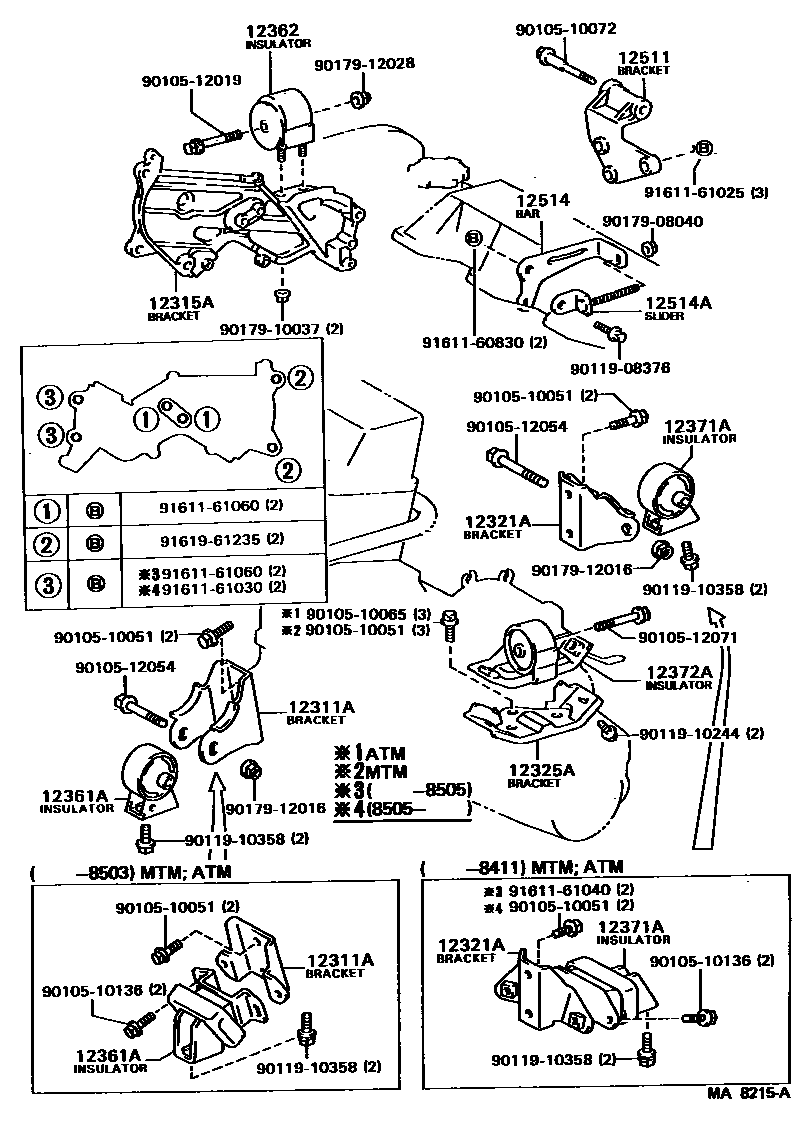

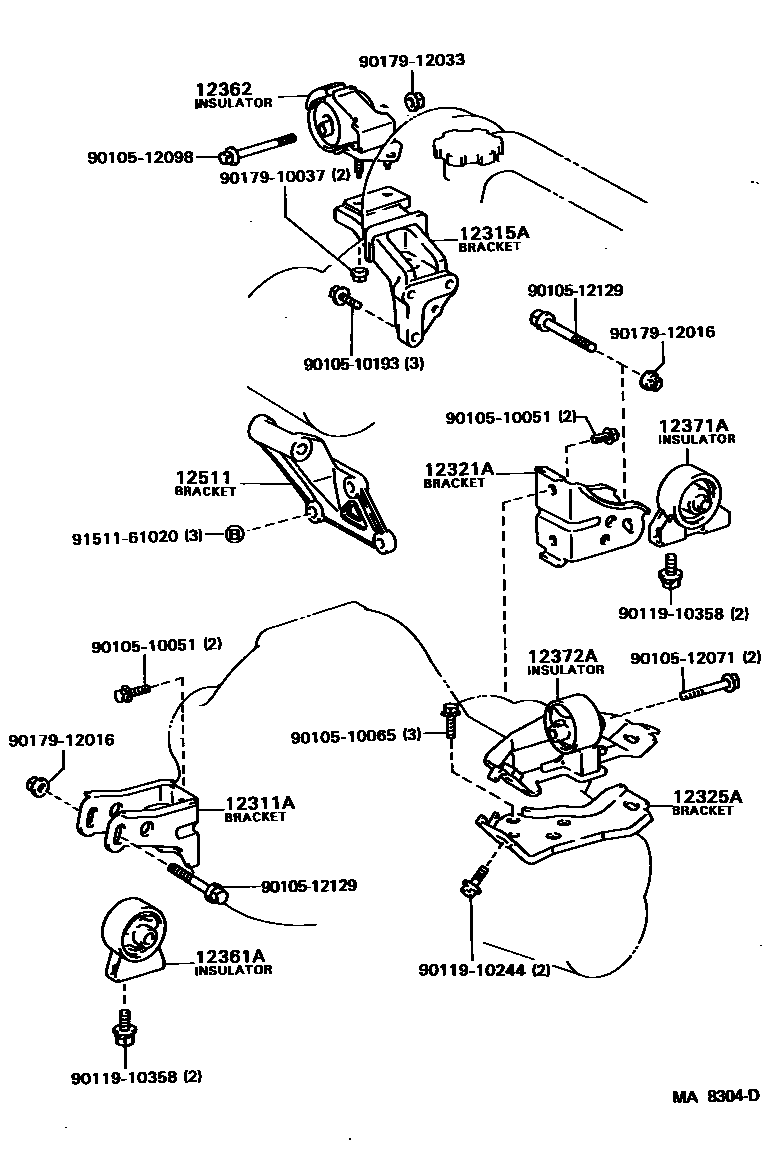

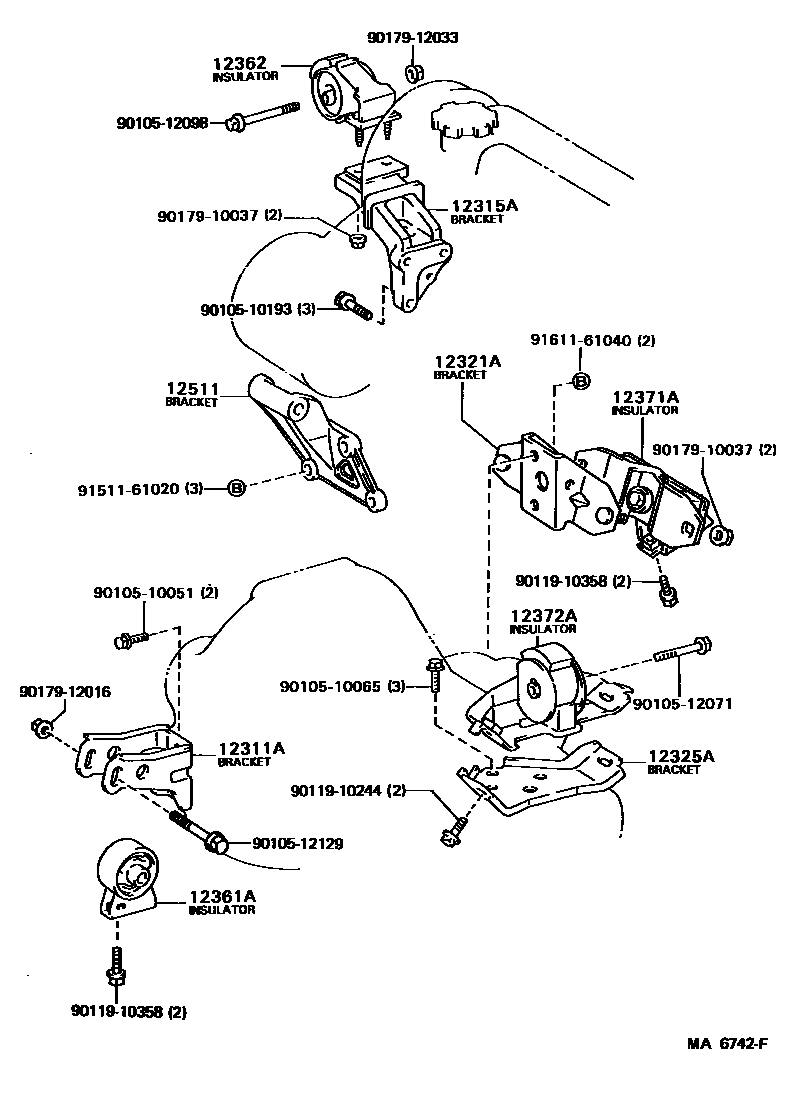

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-15080 · 12311-63031 · 12311-64070 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-15050 · 12315-64030 · 12315-64031 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-15010 · 12321-15020 · 12321-63031 · 12321-63040 · 12321-64030 · 12321-64100 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-15010 · 12325-15020 · 12325-16010 · 12325-63010 · 12325-63020 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-15090 · 12361-15091 · 12361-15100 · 12361-15101 · 12361-64031 · 12361-64040 · 12361-64100 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-15030 · 12362-15091 · 12362-64010 · 12362-64020 |
| 12371A | Engine rear mount vibration isolation pad | 12371-11080 · 12371-15090 · 12371-15091 · 12371-15120 · 12371-15121 · 12371-64011 · 12371-64020 · 12371-64050 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-11030 · 12372-15050 · 12372-15051 · 12372-15060 · 12372-15061 · 12372-16010 · 12372-64010 · 12372-64020 |
| 12511 | No. 1 generator bracket | 12511-16020 · 12511-16021 · 12511-64020 |
| 12514 | Generator belt adjustment lever | 16381-64020 |
| 12514A | Fan belt adjustment slider | 16385-64020 |
