Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 21 PNC and OE references.

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MA6549F

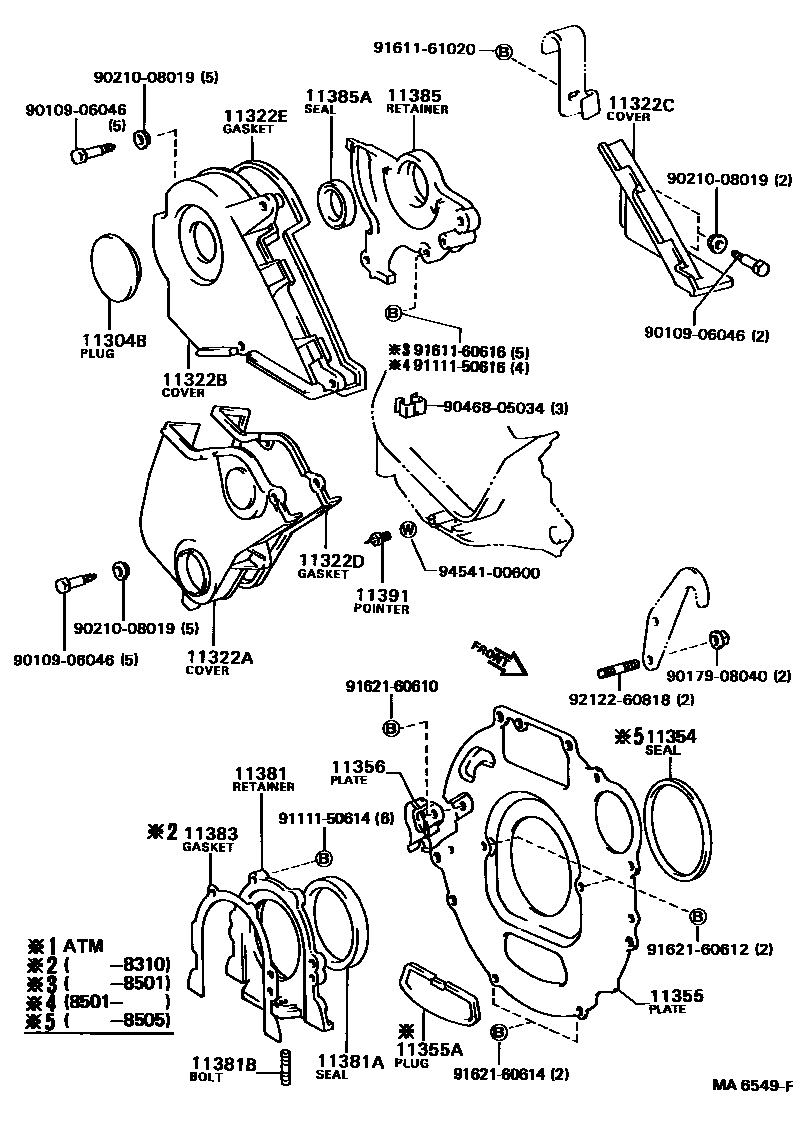

Timing Gear Cover & Rear End Plate — MA6549F (198308 – 198508)
Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MA6719H

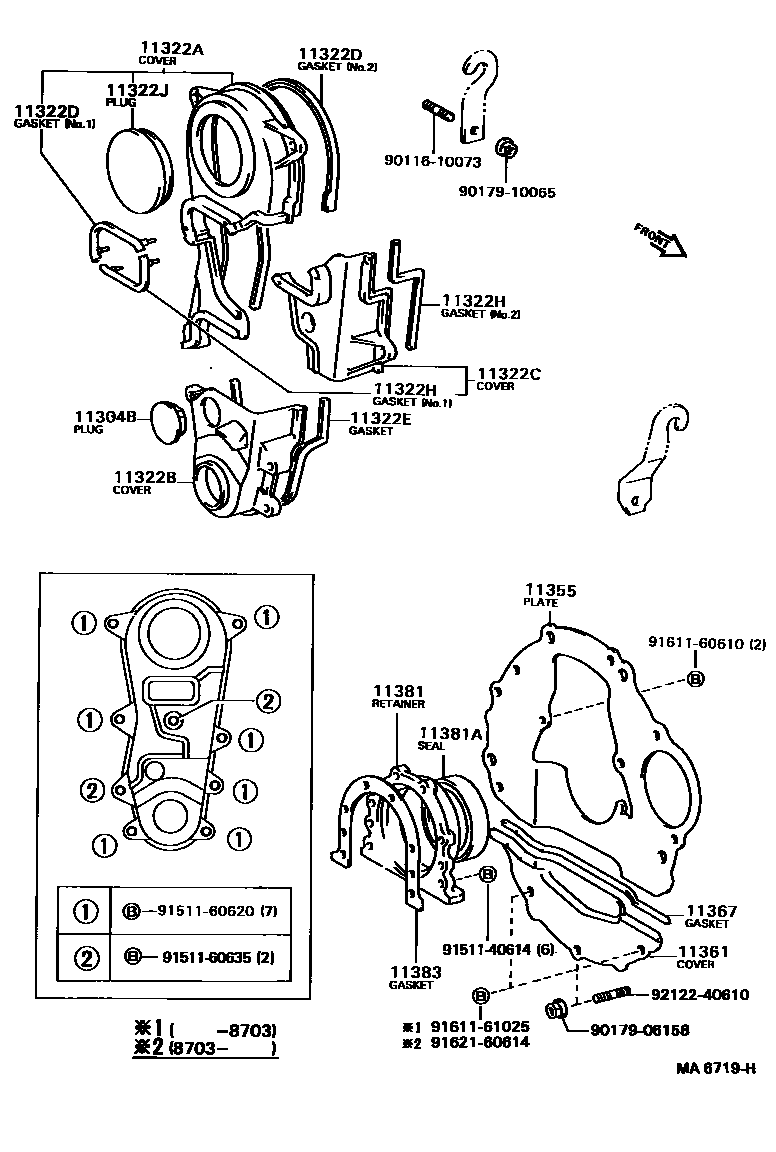

Timing Gear Cover & Rear End Plate — MA6719H (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
11304BHalf-round plug (for No. 2 timing chain cover)90950-01357 · 90950-01391
11322ANo. 1 timing belt cover11302-15030 · 11302-15031 · 11321-64010
11322BNo. 2 timing belt cover11303-15030 · 11303-15031 · 11322-64010
11322CNo. 3 timing belt cover11304-15010 · 11323-64010
11322DNo. 1 timing belt cover gasket11328-15030 · 11328-64020 · 11346-15010
11322ENo. 2 timing belt cover gasket11329-15030 · 11329-64020
11322HNo. 3 timing belt cover gasket11319-15010 · 11346-15010
11322JFastener (for timing belt cover)90950-01390
11354Flywheel housing dust seal11354-64010
11355rear end plate11355-15050 · 11355-15060 · 11355-64030 · 11355-64031 · 11355-64040 · 11355-64041
11355AHole plug (for rear end plate)90950-01358
11356No. 2 rear end plate11356-64010
11361Flywheel housing bottom cover11361-15020 · 11361-15021 · 11361-16020 · 11361-16040
11367Flywheel housing lower gasket11367-15030
11381RETAINER, ENGINE REAR OIL SEAL11381-15010 · 11381-64010 · 11381-64011 · 11381-64012
11381ASEAL, ENGINE REAR OIL90311-70004 · 90311-90002 · 90311-90003
11381BStud bolts (for engine rear oil seal race)90116-06033
11383Engine rear oil seal seat gasket11383-15010 · 11383-64010
11385Camshaft oil seal race11382-64010 · 11382-64011
11385AOil seal (for camshaft)90311-38017 · 90311-38025
11391Timing pointer11391-64020
