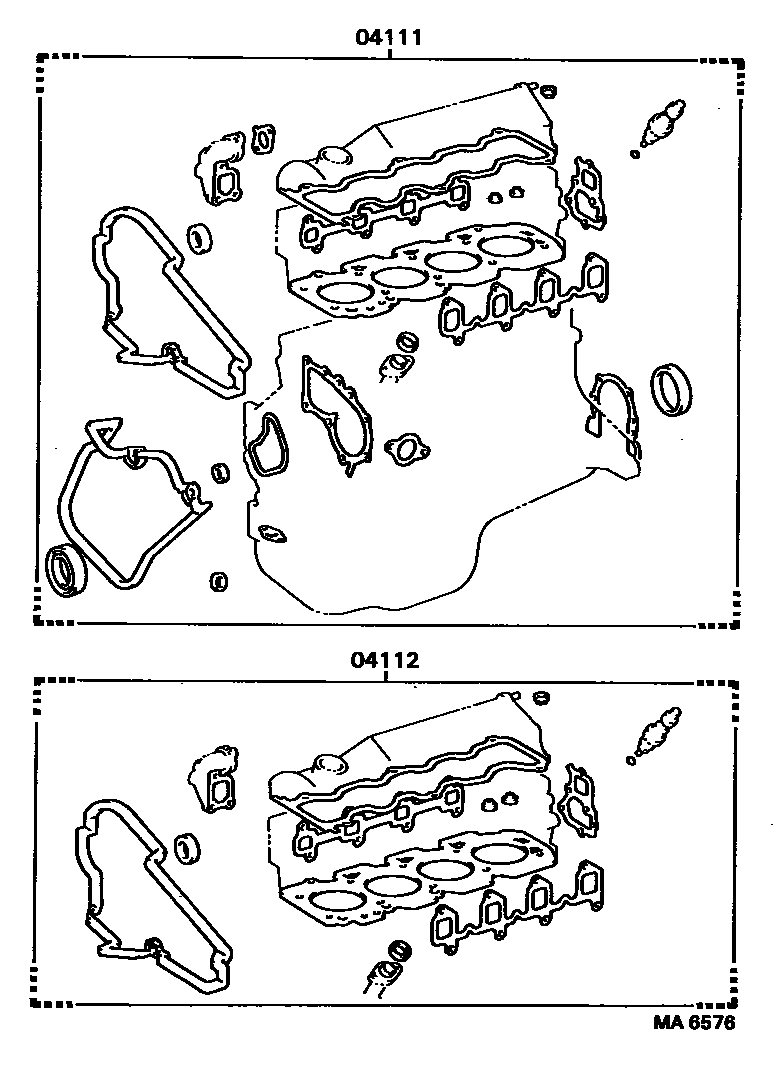

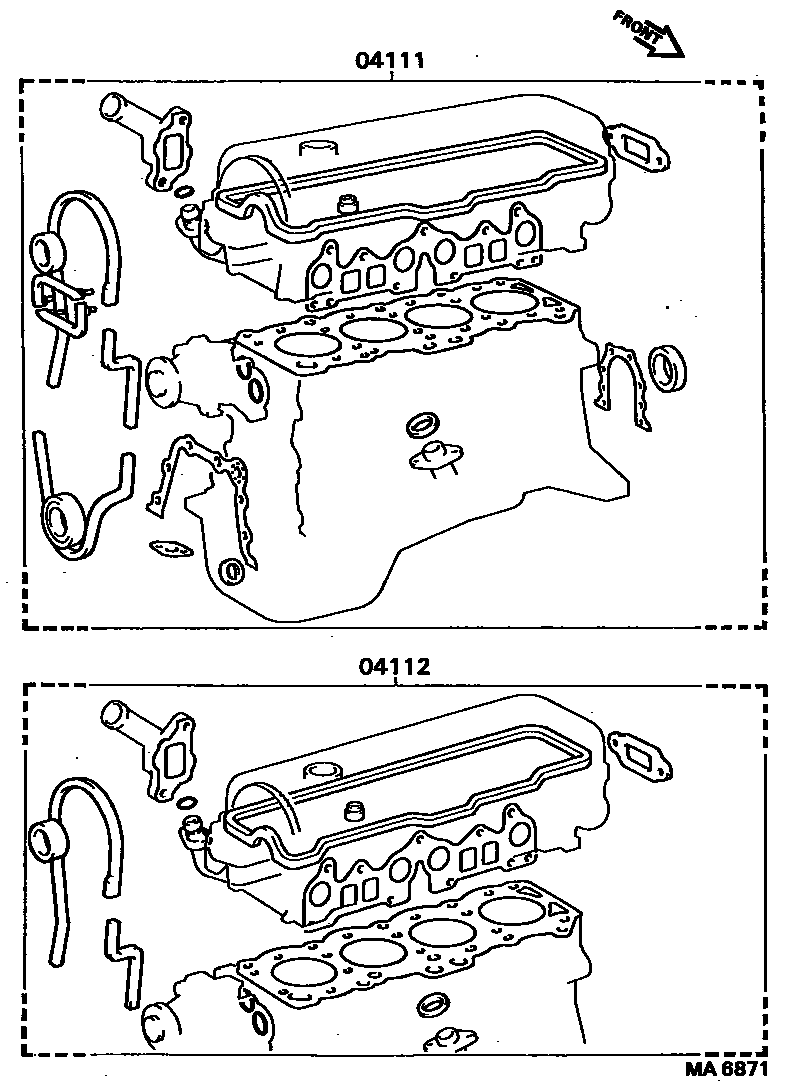

Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103
Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-16040 · 04111-16041 · 04111-16090 · 04111-64040 · 04111-64041 · 04111-64042 |
| 04112 | Engine valve grinding pad assembly | 04112-16040 · 04112-16041 · 04112-16090 · 04112-64040 · 04112-64041 |
