Toyota COROLLA 前大灯清洗器 — Figure 8505

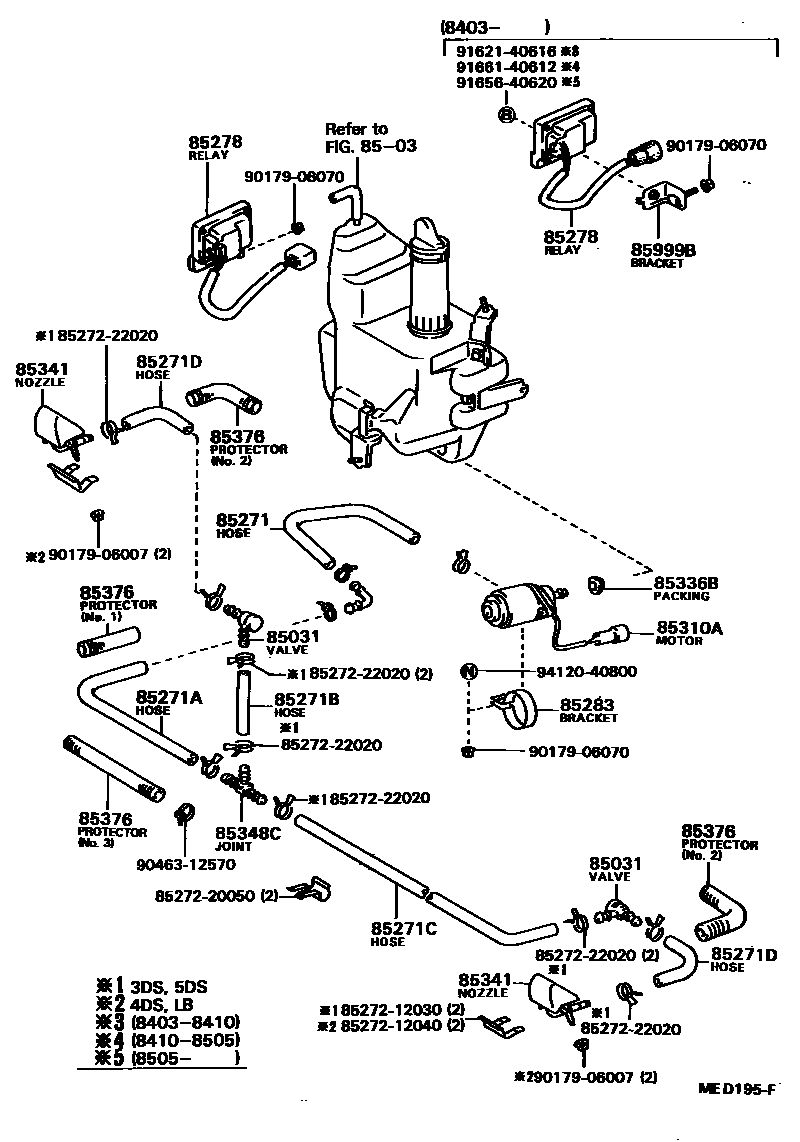

Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-30020 |
| 85271 | No. 1 headlight washer hose | 85271-12010 |
| 85271A | No. 2 headlight washer hose | 85271-14020 |
| 85271B | No. 3 headlight washer hose | 90445-14055 |
| 85271C | No. 4 headlight washer hose | 85375-12062 |
| 85271D | No. 5 headlight washer hose | 85375-12510 |
| 85278 | Headlight washer control relay assembly | 85276-12030 · 85276-12032 · 85276-22060 |
| 85283 | Headlight washer bracket | 85361-10070 |
| 85310A | Headlight washer motor and pump assembly | 85310-12160 · 85310-22060 |
| 85336B | Headlight washer seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85035-12120 · 85035-12200 |
| 85348C | No. 3 headlight washer hose connector | 85352-12010 |
| 85376 | No. 1 headlight washer hose protection device | 85376-12480 · 85377-12090 · 85377-12480 |
| 85999B | Headlight washer relay bracket | 85274-12010 · 85274-12020 · 85999-12120 |
