Toyota COROLLA indicator light — Figure 8302

Toyota COROLLA EPC diagram 8302, indicator light, with 1 images and 3 PNC and OE references.

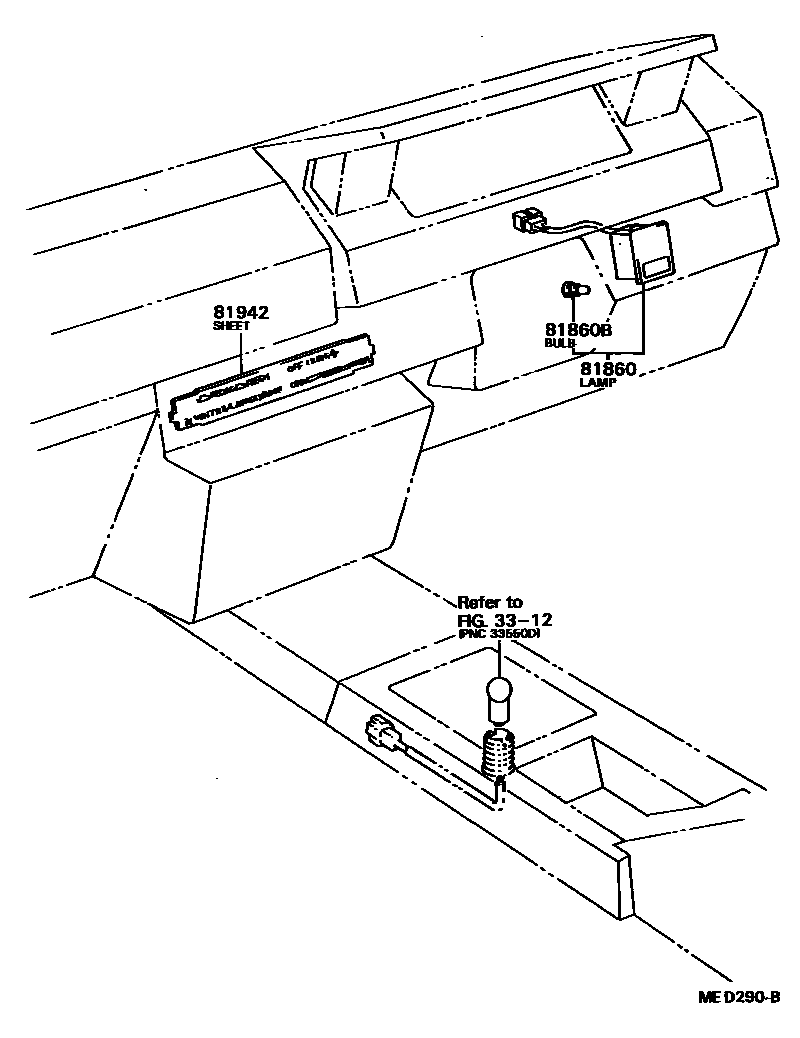

Toyota COROLLA indicator light EPC diagram — MED290B
indicator light — MED290B (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
81860Transmission indicator light assembly81860-12020
81860BTransmission indicator light bulb84999-10110
81942Heater control nameplate81942-12070 · 81942-12071 · 81942-12080 · 81942-12081 · 81942-12090 · 81942-12091 · 81942-12110 · 81942-12111 · 81942-12120 · 81942-12150 · 81942-12160 · 81942-12170 · 81942-12180 · 81942-12190 · 81942-12200
