Toyota COROLLA 后侧标示灯 — Figure 8114

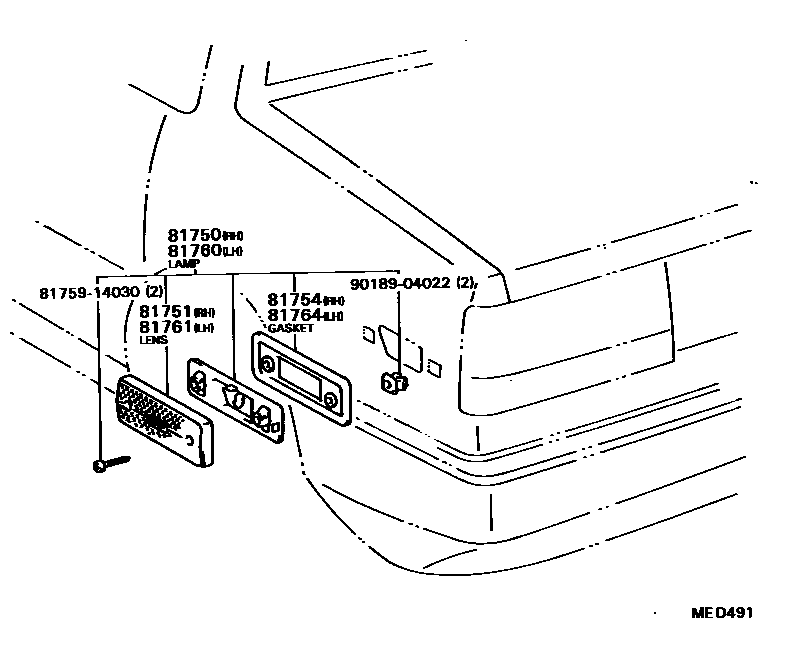

Toyota COROLLA EPC diagram 8114, 后侧标示灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81750 | Right rear width indicator light assembly | 81750-19205 |
| 81751 | Right rear width indicator lamp cover | 81751-12110 |
| 81754 | Right rear width light body gasket | 81752-12110 |
| 81760 | Left rear width indicator light assembly | 81760-19155 |
| 81761 | Left rear width indicator lamp cover | 81761-12110 |
| 81764 | Left rear width light body gasket | 81752-12110 |
