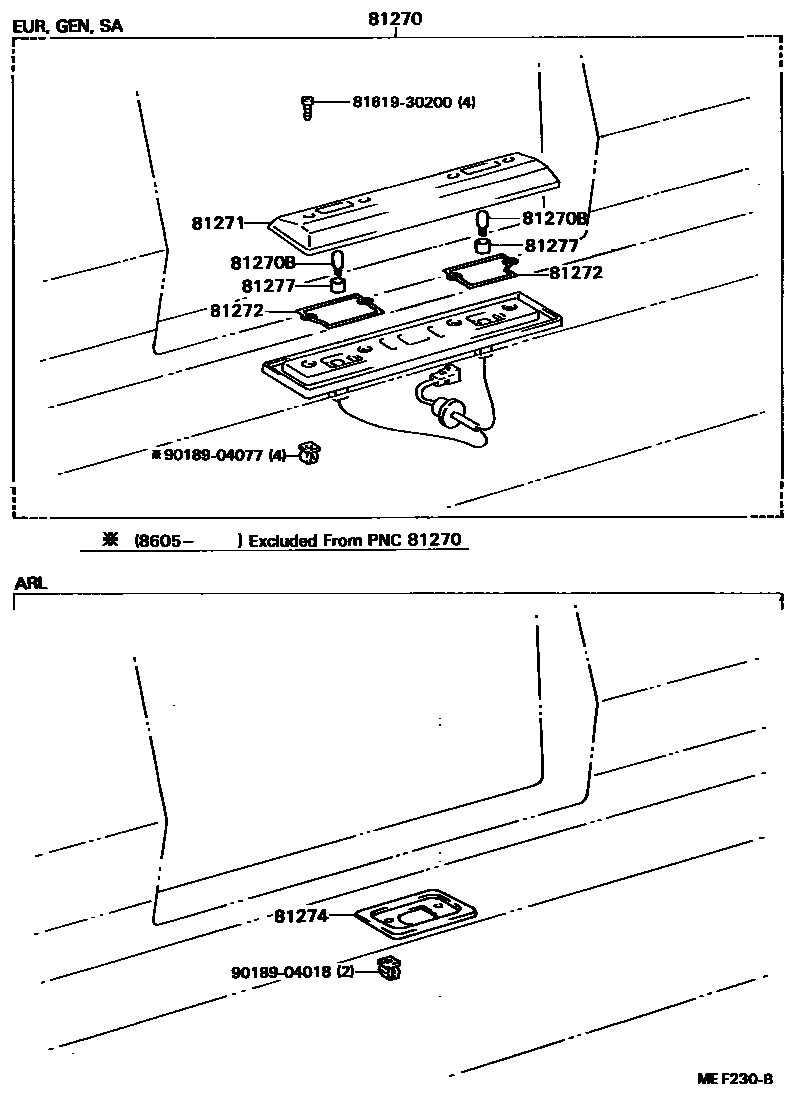

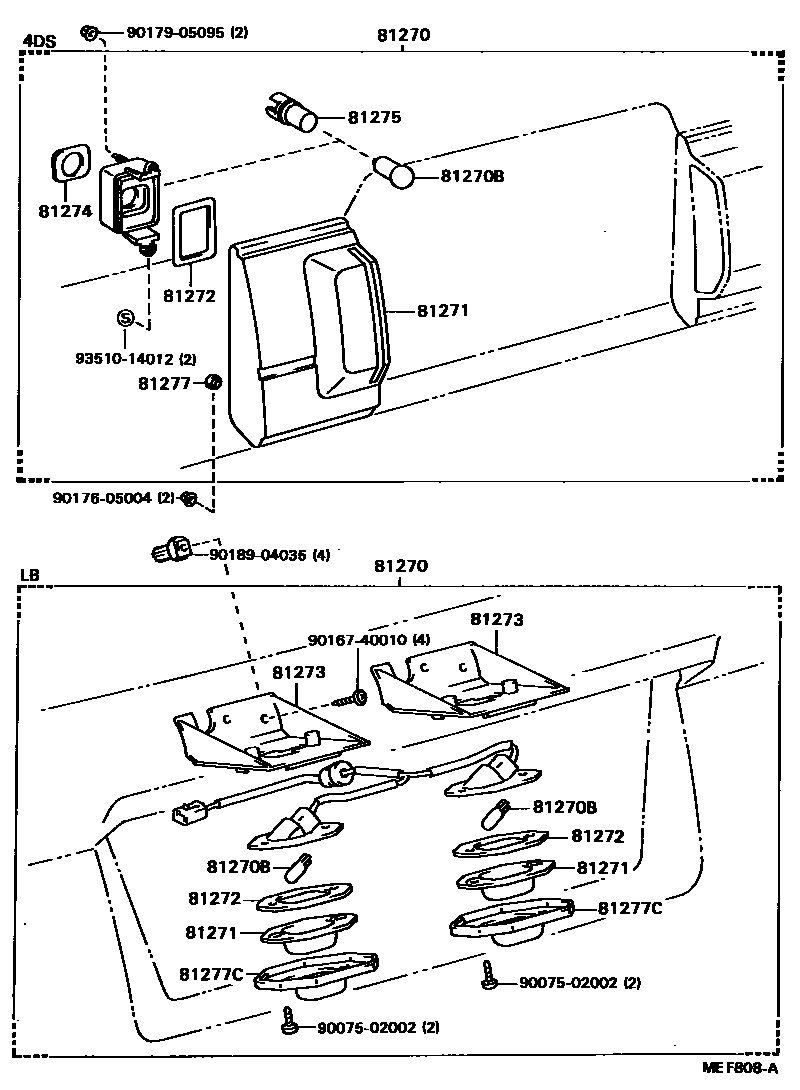

Toyota COROLLA 后牌照灯 — Figure 8113
Toyota COROLLA EPC diagram 8113, 后牌照灯, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-12230 · 81270-12240 · 81270-12300 · 81270-12341 · 81270-22200 · 81270-80009 · 81270-80010 · 81270-80028 · 81690-12080 |
| 81270B | Bulb (for license plate light) | 90981-12013 · 99132-11075 · 99132-11100 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-12230 · 81271-12240 · 81271-12300 · 81271-12340 · 81271-22200 · 81691-12080 |
| 81272 | License plate lamp shade gasket | 81272-12300 · 81272-22200 · 81272-24010 |
| 81273 | license plate light bracket | 81279-12341 |
| 81274 | License plate light body gasket | 81274-12300 · 81274-20220 |
| 81275 | License plate lamp holder and wiring harness | 81275-12230 · 81275-12240 |
| 81277 | License plate light frame and lampshade spacer | 81277-20240 · 81277-22200 |
| 81277C | Right license plate light shade | 81277-12340 |
